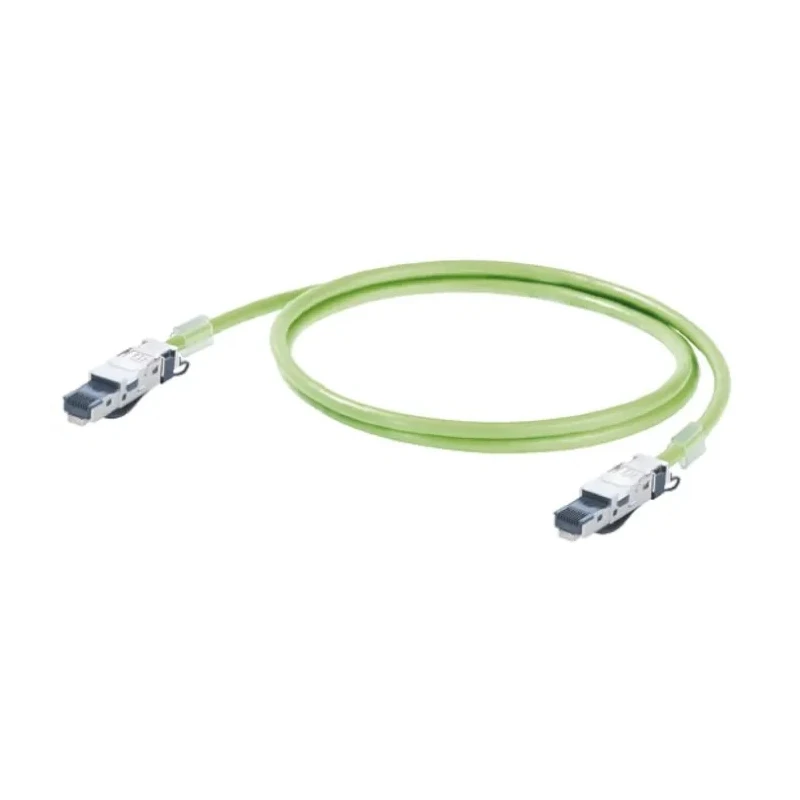

Weidmüller Shielded Screened Cat5 Ethernet Cable 4 Core, Green Polyurethane Jacket, 1 m CAT5
Specifications
| Country of Origin | Slovakia |
|---|---|
| Voltage | 60V |
| Brand | Weidmüller |
| CROSS SECTIONAL AREA | 22AWG |
| Model | Cat5 |
| Cable Length | 1m |
| Connector | IEC 60603-7-51 |
| Outside diameter | 6.7mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Wire Material | DIN EN 13602 Cu-ETP-A |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Polyurethane |
| Shield Type | Shielded |
| Jacket Colour | Green |
| Fire Behaviour | Halogen Free |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| LAN Category | Cat5 |
| Insulating Material | DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3) |
| Terminated/Unterminated | Terminated |
| Shielding Material | DIN EN 13602 Cu-ETP-A..B |
| Halogen | to IEC 60754-2 |
| Resistance to spread of flame | to IEC 60332-1 |
| Resistance to oils | acc. to IEC 60811-2-1 |
Key Features
- Constructed with stranded tin copper wire offering flexibility and corrosion resistance.
- Features a green polyurethane jacket providing mechanical protection and durability.
- Shielded and screened to enhance signal integrity and reduce electromagnetic interference.
- Rated for a voltage of 60V with 22AWG cross-sectional conductor area.
- Operating temperature range from -50°C to 70°C for versatile environmental conditions.
- Halogen-free fire behavior ensuring safety in installations.
- Complies with standards including IEC 60754-2 and IEC 60332-1 for halogen and flame resistance.
- Connector meets IEC 60603-7-51 with insulation per DIN EN 50290-2-23 standard.
Product Description
Weidmüller Cat5 Shielded Screened Ethernet Cable model Cat5 is a professional-grade 4 core networking cable featuring a green polyurethane jacket with a length of 1 meter. It is designed for robust network connectivity in industrial and commercial environments, supporting PROFINET RJ45 plug to plug Dragline patch cable applications.
The cable construction utilizes stranded tin copper wire to ensure excellent conductivity and mechanical resilience. Its shielding and screening components reduce electromagnetic interference, optimizing data transmission quality. The polyurethane jacket is halogen free, providing enhanced safety with resistance to spreading flames and oils.
This Cat5 cable is rated for 60 volts and has a cross-sectional conductor size of 22AWG, with an outside diameter of 6.7 mm, suitable for various network installations. The operating temperature range spans from -50°C to +70°C, making it dependable even in demanding environmental conditions.
Compliance with international standards such as IEC 60754-2 for halogen content, IEC 60332-1 for flame spread resistance, and IEC 60811-2-1 for oil resistance guarantees high safety and performance benchmarks. The connectors conform to IEC 60603-7-51 with insulation materials certified per DIN EN 50290-2-23 ensuring long-lasting performance.
Constructed with stranded tin copper wire offering flexibility and corrosion resistance. Features a green polyurethane jacket providing mechanical protection and durability. Shielded and screened to enhance signal integrity and reduce electromagnetic interference.
Rated for a voltage of 60V with 22AWG cross-sectional conductor area. Operating temperature range from -50°C to 70°C for versatile environmental conditions. Halogen-free fire behavior ensuring safety in installations. Complies with standards including IEC 60754-2 and IEC 60332-1 for halogen and flame resistance.
Connector meets IEC 60603-7-51 with insulation per DIN EN 50290-2-23 standard.
This Ethernet Cable is suitable for use in industrial automation, electrical networking, data centers, and commercial communications where reliable and safe network connectivity is essential. The 1 meter cable length is ideal for patch cable applications connecting equipment within racks and workstations.
Explore more networking solutions and cables at EnvMart to meet a wide range of industrial and commercial connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable length is 1 meter.
It can operate at a maximum temperature of 70°C.
The conductor material is stranded tin copper wire, which offers flexibility and corrosion resistance.
This cable is rated for a voltage of 60V.
It complies with IEC 60754-2 for halogen content, IEC 60332-1 for flame spread resistance, and IEC 60811-2-1 for oil resistance.
The outside diameter is 6.7 mm.
This cable is shielded and screened to enhance signal integrity and reduce electromagnetic interference.
The minimum operating temperature is -50°C.
It features a green polyurethane jacket that provides mechanical protection and durability.
This model has 4 cores.
The connector meets IEC 60603-7-51 standards.
It has a halogen-free fire behavior rating, ensuring safety in installations.
