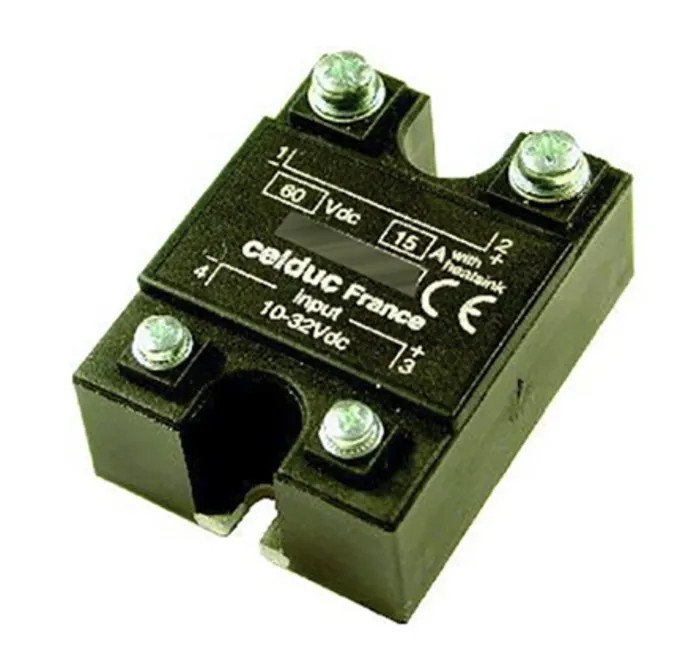

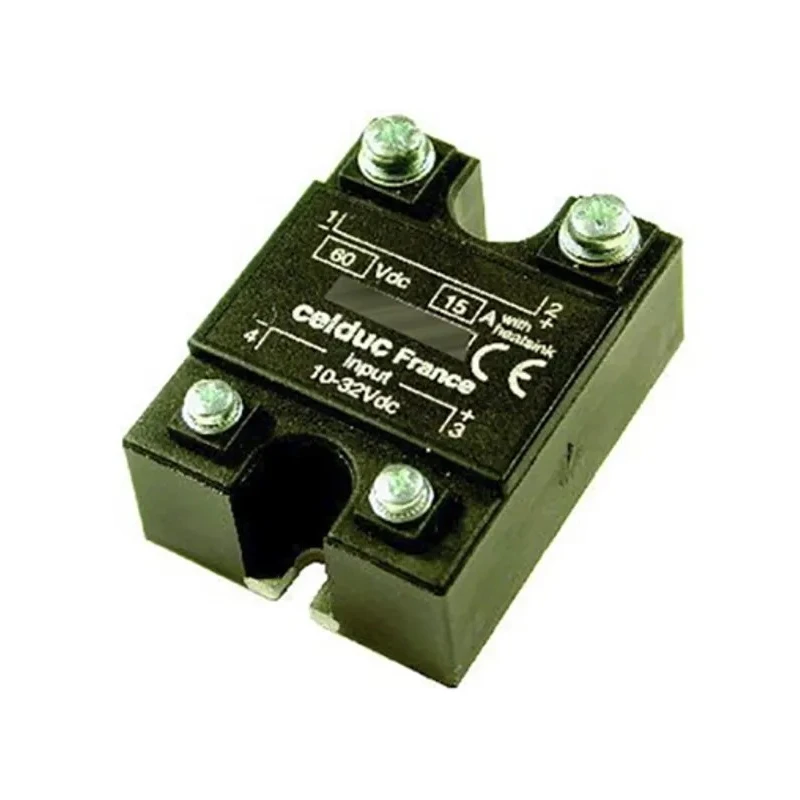

Celduc SCC Series Solid State Relay 5A Load, DIN Rail Mount, 60V DC Load, 32V DC Control SCC20506

Celduc SCC20506 solid state relay is part of the SCC series, designed for switching direct current loads with rated current up to 5 amperes. It is built to be mounted on DIN rails, offering a compact and standardized installation method widely used in industrial automation and control panels.

This relay supports a maximum load voltage of 60 V DC and can switch loads down to 2 V DC, providing versatility in a range of DC load switching applications. The control voltage input ranges from 10 V DC to 32 V DC, enabling compatibility with various control circuits and PLCs.

The device includes a zero cross switching function which helps to minimize electrical noise and prolongs the lifespan of connected components by switching loads near the zero voltage crossing point. Its screw terminal connections ensure secure and reliable wiring for industrial environments.

Rated at IP20, the relay is protected against solid objects of 12 mm and larger, suitable for indoor electrical enclosures and automation cabinets. Operating temperature ranges from -30°C to +80°C allow for stable performance in typical industrial conditions.

The output uses a thyristor element, providing fast and efficient switching capabilities for DC loads. The contact configuration is SPST (single pole single throw), ideal for simple on/off switching circuits.

With overall dimensions of 60 mm length, 35 mm width, and 32 mm height, this relay fits compactly in tight spaces while maintaining robust performance. The product is manufactured in France, adhering to quality standards including EAC and CE certifications.

This relay is suitable for applications in industrial automation, electrical signal conditioning, control systems, and machinery requiring reliable DC load switching. It supports direct current switching on networks with low leakage current at off state (1 mA), ensuring energy efficient operation.

Leverage Celduc's SCC20506 solid state relay for efficient, durable, and noise-minimized DC switching solutions in industrial and manufacturing settings. Explore more Solid State Relays and electrical control components in EnvMart’s extensive catalog.

Supports a maximum load current of 5 amperes for efficient load handling. Designed for DIN rail mounting offering easy and secure installation. Operates with a maximum load voltage of 60 volts DC and minimum of 2 volts DC.

Control voltage ranges from 10 volts DC minimum to 32 volts DC maximum for precise operation. Features zero cross switching function enabling reduced electrical noise. Equipped with screw terminals for secure wiring connections.

Rated IP20 for protection against solid objects larger than 12 mm. Compact size with dimensions 60mm length, 35mm width, and 32mm height. Operates reliably within temperature range -30°C to 80°C. Output type is thyristor providing efficient DC load switching.

Contact configuration is single pole single throw (SPST) for simple circuit control.
