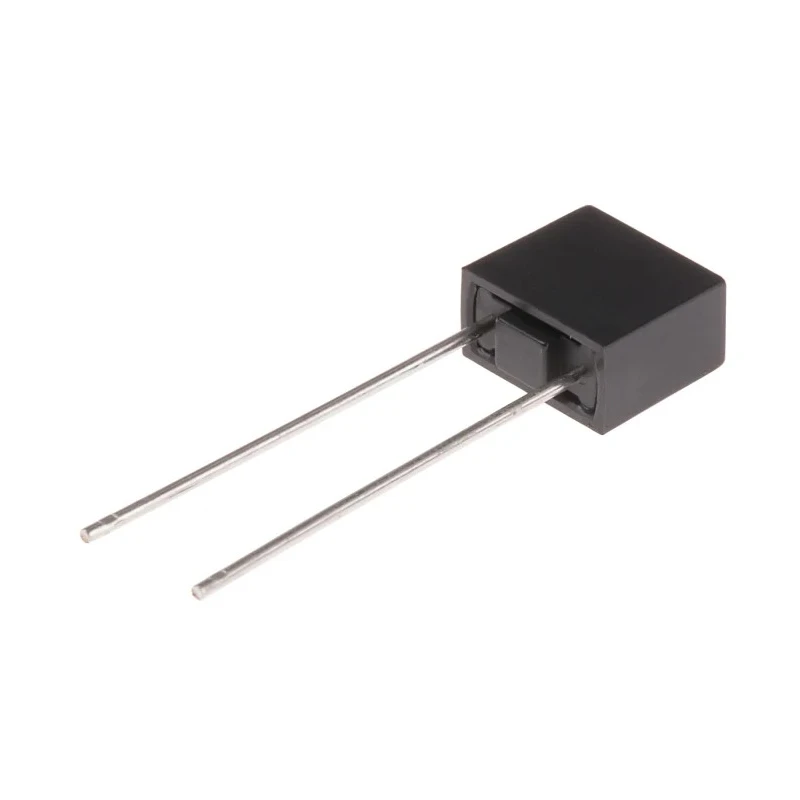

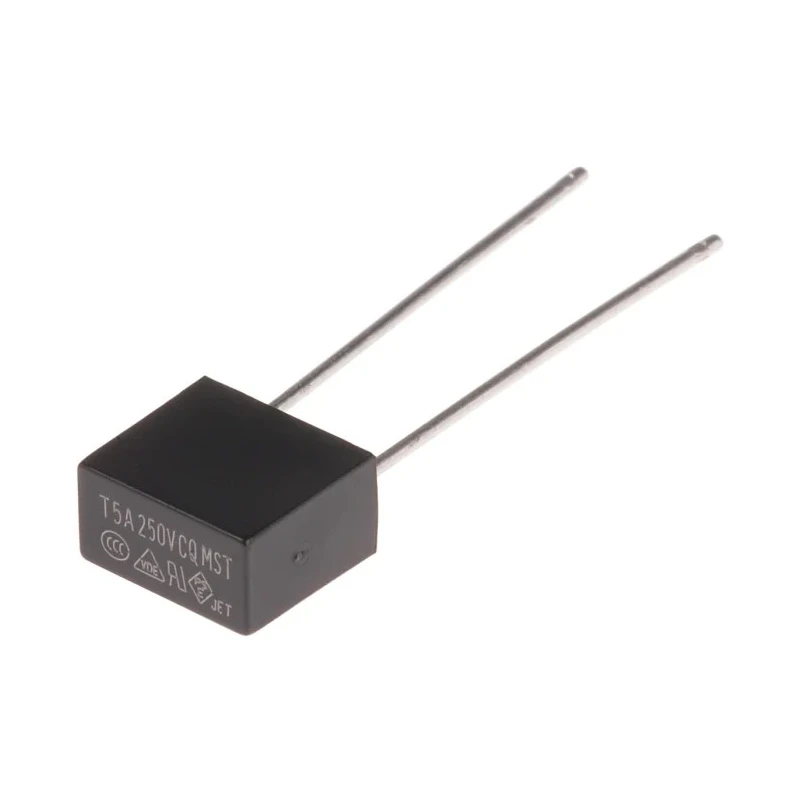

RS PRO Non-Resettable Fuse Radial 5A 250V AC Thermoplastic Body Time Delay 767-5064

RS PRO 767-5064 Non-Resettable Fuse is a radial lead fuse designed for circuit protection in industrial and electrical applications. It features a 5A current rating and 250V AC voltage rating suitable for a range of low to moderate voltage circuits.

The fuse utilizes a time-delay characteristic allowing temporary current surges without blowing, which protects sensitive equipment from nuisance tripping while still providing safety during fault conditions.

The body material is a UL 94-V0 rated thermoplastic, ensuring flame retardancy and mechanical durability. The compact size with dimensions 8.35 mm by 4.3 mm by 7.7 mm fits efficiently in tight PCB layouts. Radial lead orientation with 22 mm lead length assists in secure PCB mounting.

Performance is stable across a wide temperature range from -55°C to 125°C, making it suitable for harsh industrial environments. Breaking capacity of 35A guarantees effective fault current interruption without damage to connected components.

The fuse pins are tin-plated copper round pins, offering excellent electrical conduction and resistance to corrosion. It complies with RoHS and CSA standards assuring environmental safety and performance reliability.

Time-delay fuse characteristic ensures protection against temporary surges. Thermoplastic body provides durability and safety with UL 94-V0 rated material. Radial lead orientation enables easy PCB mounting and connection.

Compact dimensions with 8.35mm length, 4.3mm width, and 7.7mm height. Operates reliably in temperatures ranging from -55°C to 125°C. Breaking capacity of 35A ensures robust circuit interruption capability. Tin-plated copper round pins provide excellent conductivity and corrosion resistance.

Conforms to RoHS and CSA standards for compliance and safety. Manufactured in Taiwan, Province Of China.

This non-resettable fuse is ideal for industrial automation, electrical panels, circuit protection in consumer electronics, and laboratory equipment. Its reliable performance under various environmental conditions makes it a trusted choice for engineers and technicians.
