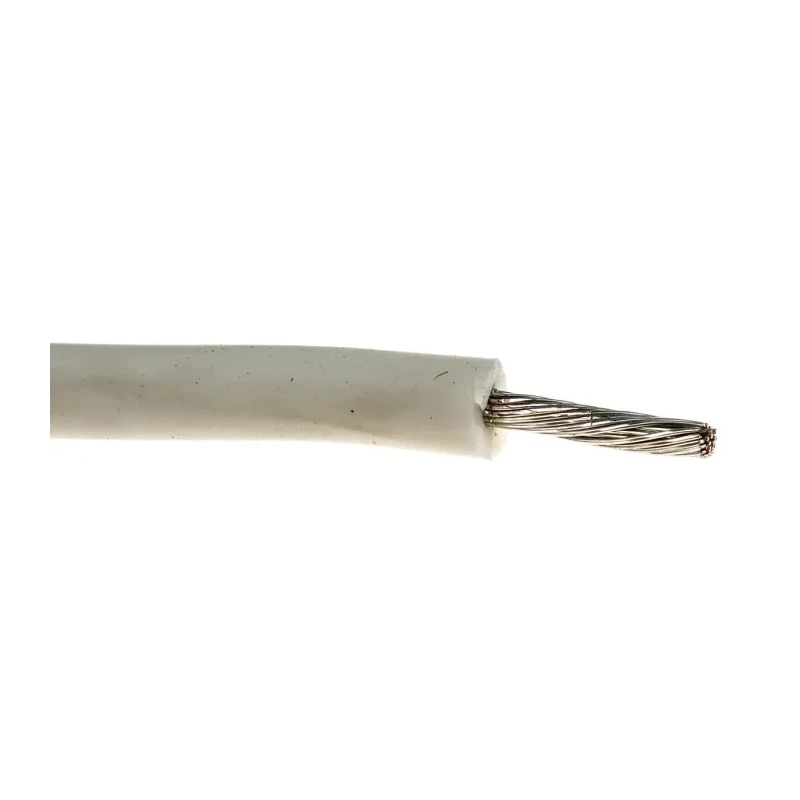

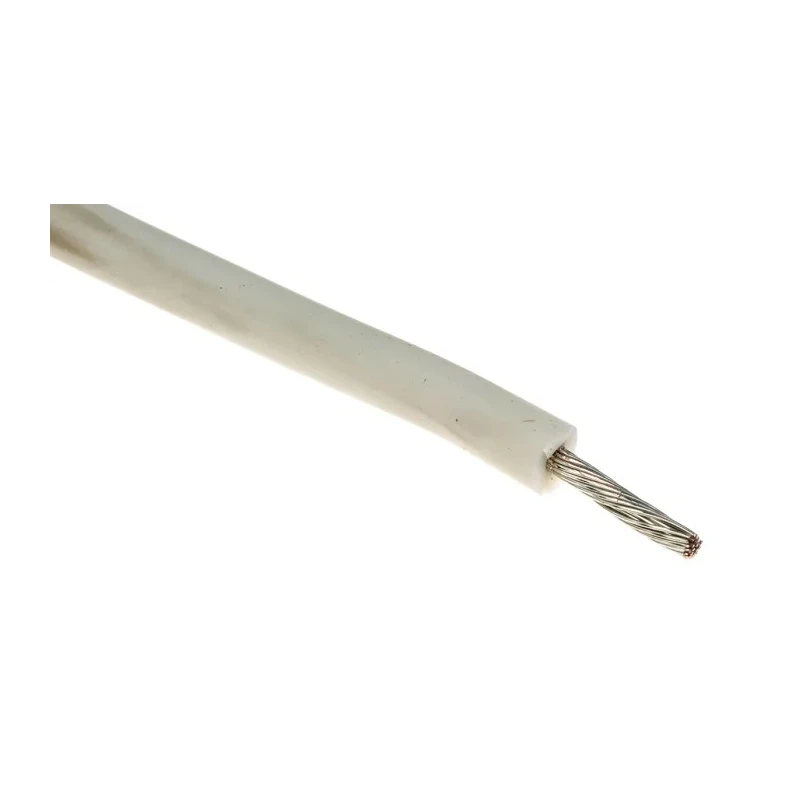

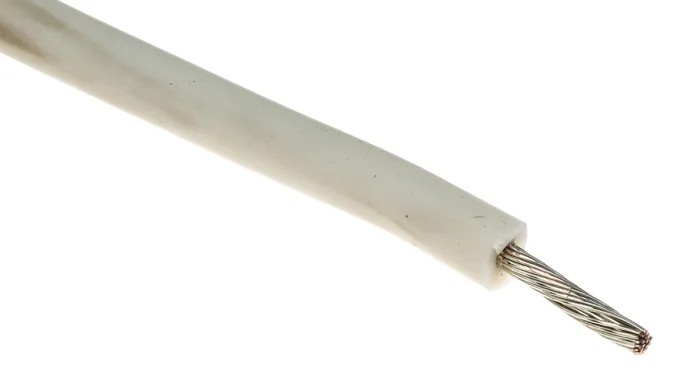

Alpha Wire Hook Up Wire Silicone Rubber Jacket 2.1mm² Cross Section, 14 AWG, Tinned Copper Conductor, 30m 391445 WH005

Alpha Wire model 391445 WH005 is a silicone rubber jacketed hook up wire with a cross sectional area of 2.1mm² and an American Wire Gauge (AWG) size of 14. The conductor features 41 strands of 0.25mm tinned copper, providing excellent conductivity while preventing oxidation. This wire is designed for high voltage applications, rated at 15000 V DC, and can operate reliably in temperature ranges from -40°C up to 150°C.

The flexible silicone rubber jacket not only provides superior insulation but also offers outstanding resistance to oils, solvents, chemicals, and flame. This makes it particularly suitable for demanding industrial environments, automation systems, and connections within electrical and mechanical devices requiring durability and safety compliance. The wire complies with UL3239 standards and is UL listed, ensuring strict safety and quality benchmarks are met.

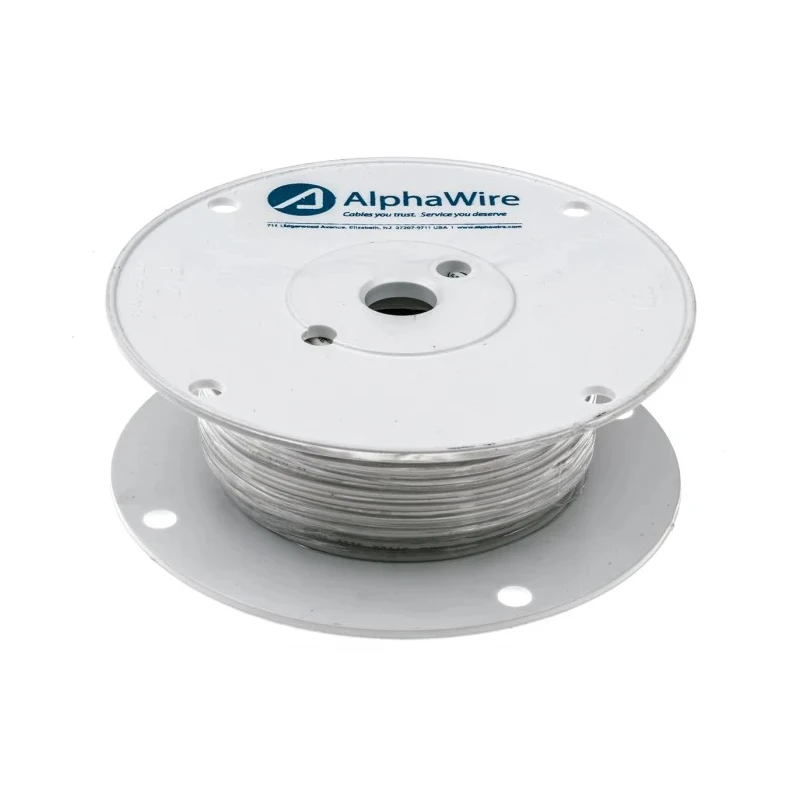

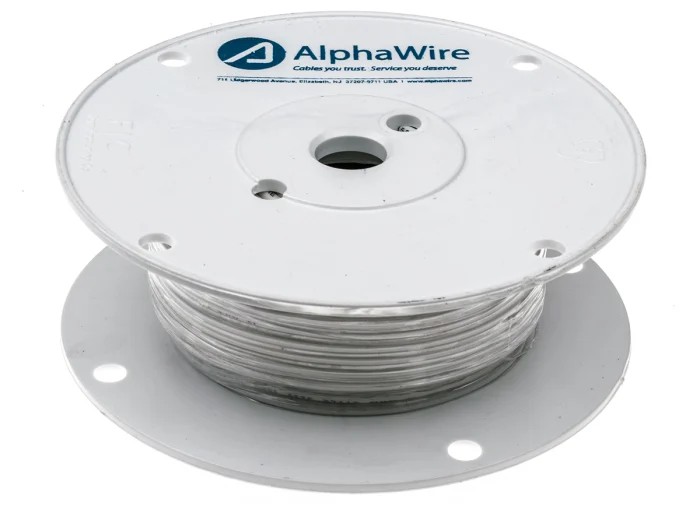

With a length of 30 meters, this hook up wire supports extensive wiring installations without frequent cable changes. Its flame retardant property adds to the secure setup in industrial and manufacturing contexts. The 4.17mm outside diameter balances compact installation with mechanical resilience.

Silicone rubber insulation ensures excellent heat and chemical resistance. Tinned copper conductor enhances conductivity and corrosion resistance. UL Listed and UL3239 compliant for safety and reliability. Rated for up to 15000 V DC high voltage applications.

Wide temperature operating range from -40°C to 150°C enhances versatility. Flexible cable design facilitates easy routing and installation. Flame retardant jacket improves fire safety in installations. Resistant to oils and solvents, suited for harsh industrial environments.

30-meter cable length minimizes replacement frequency in installations.

This Alpha Wire Hook Up Wire is ideal for usage in electrical systems operating in high temperature environments, connecting components in automation setups, wiring industrial machinery, and other demanding electrical and mechanical device applications. Its resistance properties and compliance certifications make it a trusted choice for professionals and engineers.
