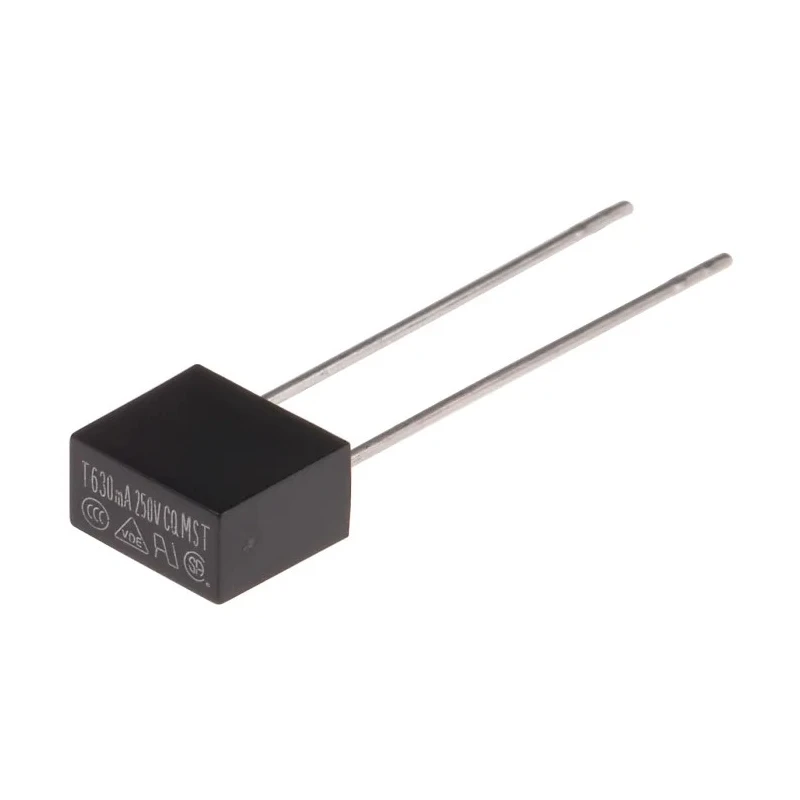

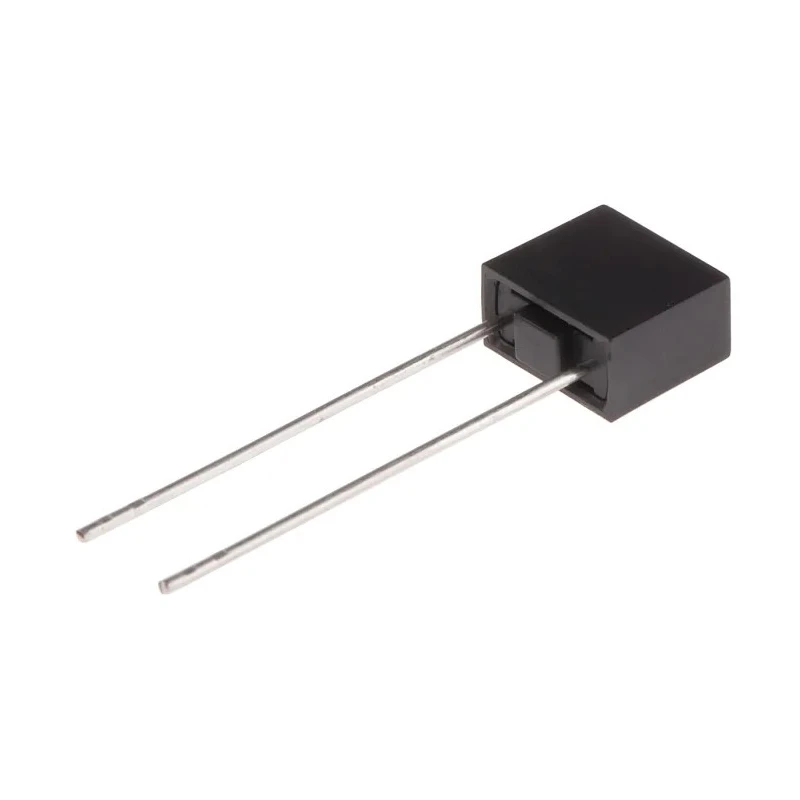

RS PRO Non-Resettable Fuse Radial 630mA 250V AC Thermoplastic Body Time Delay 35A Breaking Capacity 767-5036
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V ac |
| Diameter | 0.62mm |
| Brand | RS PRO |
| Body Material | Thermoplastic |
| Height | 7.7mm |
| Length | 8.35mm |
| Model | 767-5036 |
| Width | 4.3mm |
| Current Rating | 630mA |
| Series | RS PRO |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 22mm |
| Breaking Capacity | 35A |
| Standards/Approvals | CSA, RoHS |
| Fuse Characteristics | Time Delay |
| Lead Orientation | Radial |
Key Features
- This fuse features a radial lead orientation suitable for various circuit applications.
- The body is made of durable thermoplastic material ensuring safety and longevity.
- It operates efficiently within a temperature range of -55°C to 125°C.
- The fuse diameter is 0.62mm with dimensions designed for compact installation.
- Certified with CSA and RoHS standards for quality and environmental compliance.
- Rated at 630mA current and 250V AC voltage for effective circuit protection.
- The fuse is part of the RS PRO series known for robust electrical components.
- Ideal for use in electrical, industrial, automation, and measurement systems.
Product Description
RS PRO 767-5036 Non-Resettable Fuse Radial 630mA 250V AC is engineered for dependable circuit protection in electrical and automation applications. Featuring a time delay characteristic, it helps prevent nuisance blows during temporary surges while protecting sensitive equipment.
This fuse has a thermoplastic polyamide body with a UL 94-V0 flame retardant rating, ensuring safety and compliance with strict industrial standards. The radial lead orientation with tin-plated copper pins supports reliable soldering and mounting.
Designed to operate within a broad temperature range from -55°C minimum to 125°C maximum, the fuse performs reliably under harsh environmental conditions. Its compact dimensions (length 8.35mm, width 4.3mm, height 7.7mm) facilitate easy integration into circuit boards and devices.
The fuse offers a breaking capacity of 35A, making it effective for protecting various electrical circuits against overcurrent conditions. It conforms to CSA and RoHS certifications, guaranteeing high quality and environmental safety.
This model is manufactured in Taiwan, Province Of China, and is part of the RS PRO series renowned for durable and trustworthy electrical components. Typical industrial applications include power supplies, control systems, instrumentation, and other automation equipment requiring reliable fuse protection.
This fuse features a radial lead orientation suitable for various circuit applications. The body is made of durable thermoplastic material ensuring safety and longevity. It operates efficiently within a temperature range of -55°C to 125°C.
The fuse diameter is 0.62mm with compact dimensions for space-saving installation. Certified with CSA and RoHS standards for quality and environmental compliance. Rated at 630mA current and 250V AC voltage for effective circuit protection.
The fuse is part of the RS PRO series known for robust electrical components. Ideal for use in electrical, industrial, automation, and measurement systems. Explore more in the Electronics & Electricals category at EnvMart for quality circuit breakers and fuse solutions.
Explore more products in our Non Resettable Fuse category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The fuse is rated at 630mA, providing effective circuit protection for various applications.
It can handle a maximum voltage of 250V AC, suitable for a range of electrical circuits.
The breaking capacity is 35A, which helps protect circuits against overcurrent conditions.
The fuse has dimensions of 8.35mm in length, 4.3mm in width, and 7.7mm in height, allowing for compact installation.
The body is made of thermoplastic material, ensuring safety and longevity in various applications.
It operates efficiently within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
This model features a radial lead orientation, which is suitable for various circuit applications.
Yes, it is certified with CSA and RoHS standards, ensuring quality and environmental compliance.
It has a time delay characteristic, which helps prevent nuisance blows during temporary surges.
The lead length is 22mm, facilitating reliable soldering and mounting in circuit boards.
This fuse is manufactured in Taiwan, Province Of China.
It is ideal for use in electrical, industrial, automation, and measurement systems requiring reliable fuse protection.
