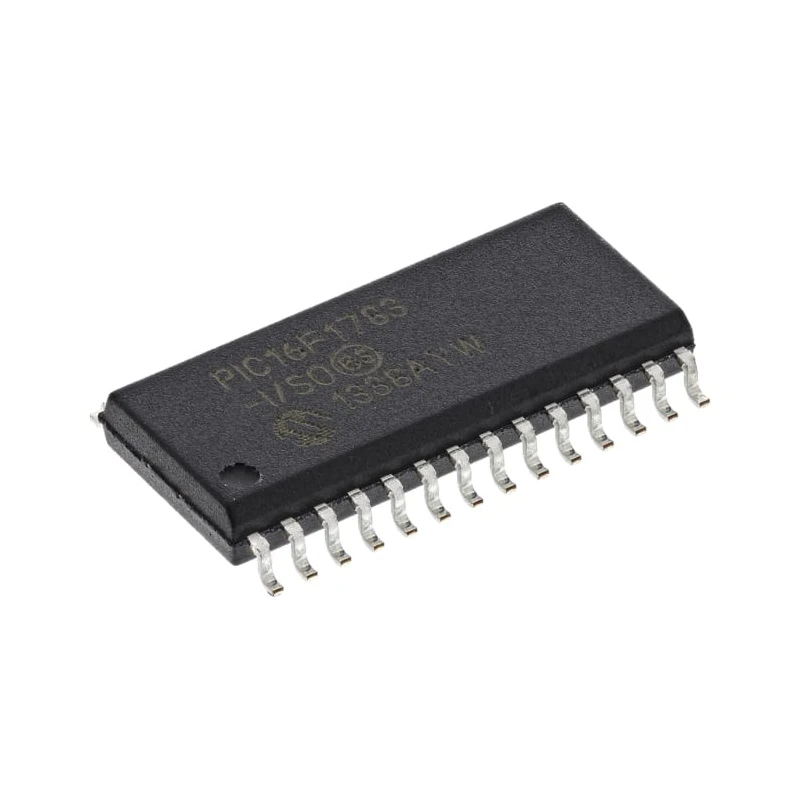

Microchip 8-bit PIC Microcontroller, 256B FLASH, 512bit RAM, 32 MHz, 28-Pin SOIC PIC16F1783-I/SO
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 2.05mm |
| Length | 17.9mm |
| Model | PIC16F1783-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 512bit |
| Pin Count | 28 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 256B |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 3 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum clock frequency of 32 MHz.
- Contains 256 bytes of FLASH program memory and 512 bits of RAM.
- Provides 25 programmable input/output pins for flexible interfacing.
- Includes 11 channels of 12-bit analogue-to-digital converters for precision sensing.
- Designed to operate in temperatures ranging from -40°C to 85°C.
- Features three analogue comparators and multiple timers for control applications.
- Utilizes a 28-pin surface-mount SOIC package suitable for compact PCB layouts.
- Power supply voltage ranges between 2.3V and 5.5V for versatile power environments.
Product Description
Microchip PIC16F1783-I/SO is an 8-bit PIC microcontroller featuring a high-performance 32 MHz maximum clock frequency and designed for embedded system applications. This device comes in a compact 28-Pin SOIC surface-mount package, making it suitable for space-sensitive electronics assembly.
The microcontroller includes 256 bytes of FLASH memory for program storage and 512 bits of RAM. It offers a rich set of peripherals including 11 channels of 12-bit ADCs, three analog comparators, two capture/compare/PWM modules, and two programmable switch mode controllers. Its flexible 25 programmable I/O pins allow customization for a wide range of applications.
Equipped with enhanced low-voltage programming and in-circuit serial programming capabilities, it facilitates easy development and debugging cycles. Power supply operation ranges from 2.3V to 5.5V, suitable for varied power environments, and a broad temperature operating range from -40°C to 85°C supports industrial and automotive applications.
The microcontroller architecture is based on a 16-level hardware stack with 49 RISC instructions delivering up to 8 MIPS performance. Additional features include power-on reset, power-up timer, oscillator start-up timer, low power brown-out reset, watchdog timer, fixed voltage reference, and enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART).
Operates at 32 MHz maximum clock frequency. 256B FLASH program memory and 512bit RAM for efficient code execution. 25 programmable I/O pins enabling versatile interfacing. 11-channel 12-bit ADCs for precise analog signal conversion.
Supporting automotive quality standard ISO/TS 16949. Compact 28-pin SOIC package for surface mounting on PCBs. Wide operating voltage range from 2.3V to 5.5V ensures adaptability. Extended temperature range (-40°C to 85°C) suitable for harsh conditions.
Supports in-circuit serial programming and debugging.
This Microchip 8-bit PIC microcontroller is ideal for industrial, automotive, consumer electronics, and embedded control system applications where performance, reliability, and compact design are critical. Explore EnvMart's Microcontroller category for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Microchip PIC16F1783-I/SO operates at a maximum clock frequency of 32 MHz.
This model features 256 bytes of FLASH program memory for efficient code storage.
It includes 512 bits of RAM for data storage and processing.
The microcontroller provides 25 programmable input/output pins for flexible interfacing.
It is designed to operate within a temperature range of -40°C to 85°C.
This model is housed in a compact 28-pin surface-mount SOIC package.
It includes 11 channels of 12-bit analogue-to-digital converters for precise sensing.
The power supply voltage ranges from 2.3V to 5.5V, allowing for versatile power environments.
It supports the automotive quality standard ISO/TS 16949.
This model features three analogue comparators for various control applications.
The height of this microcontroller is 2.05 mm.
It has a length of 17.9 mm and a width of 7.5 mm.
