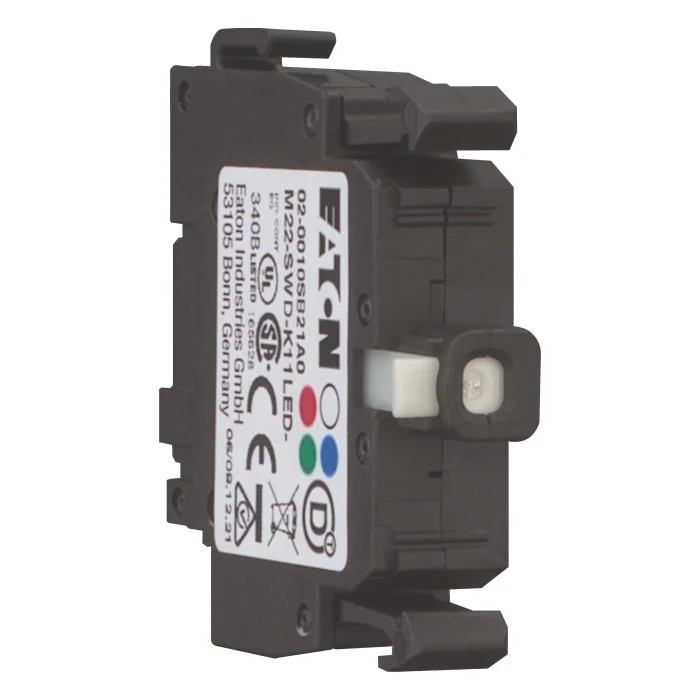

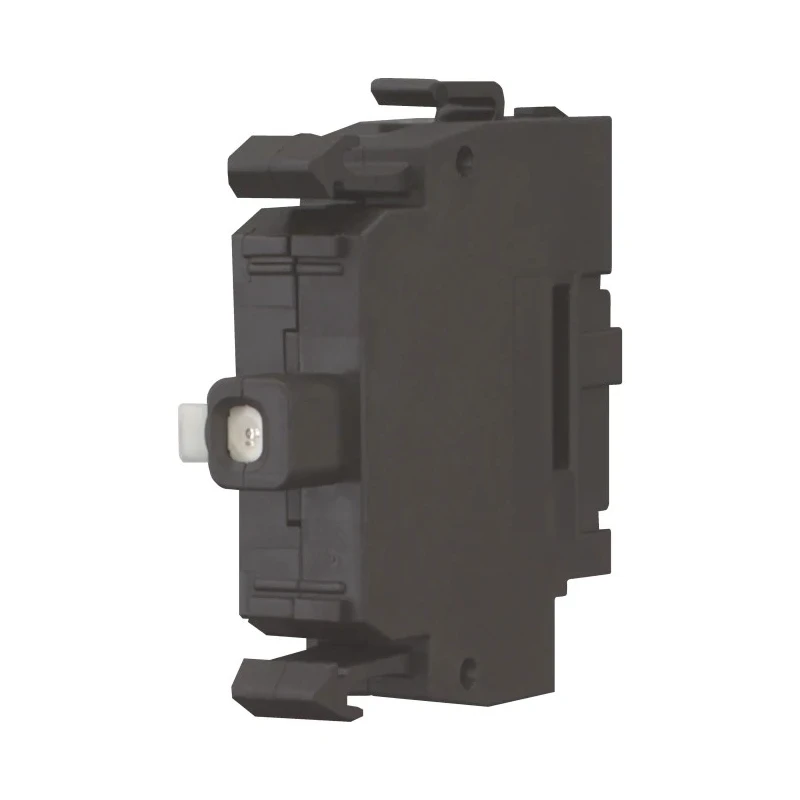

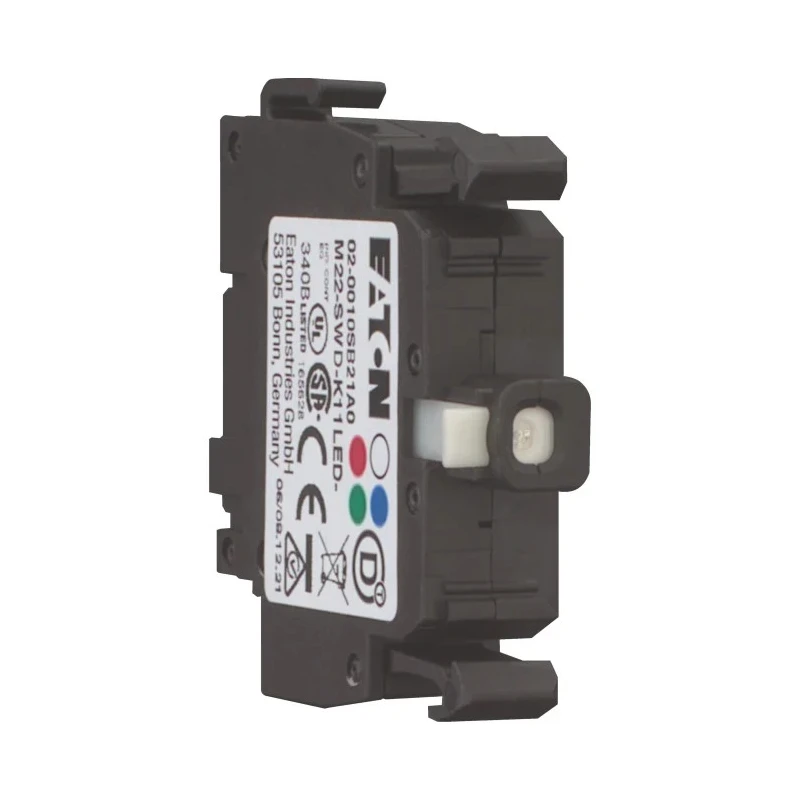

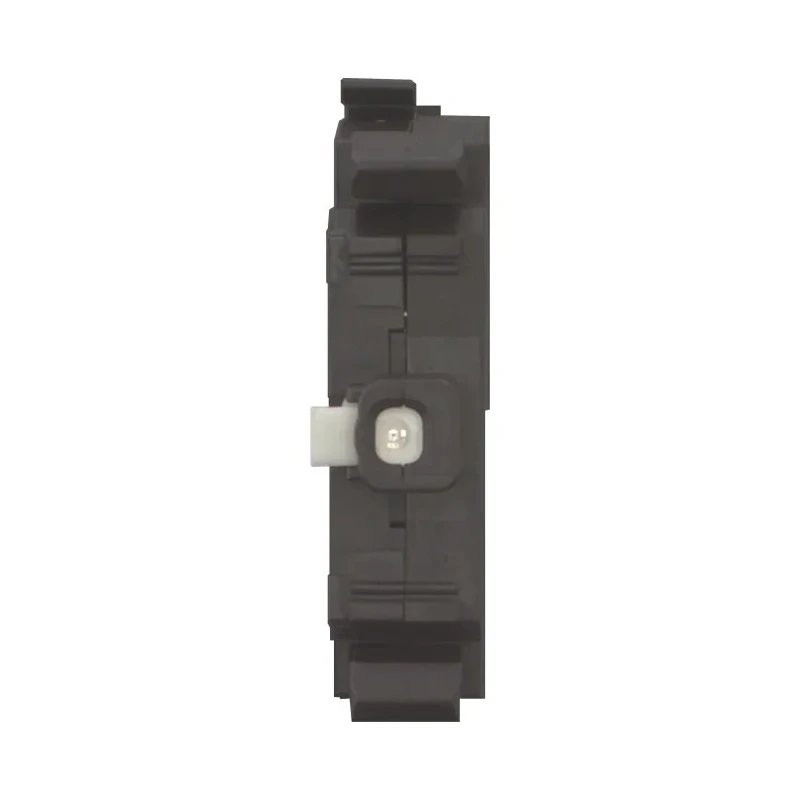

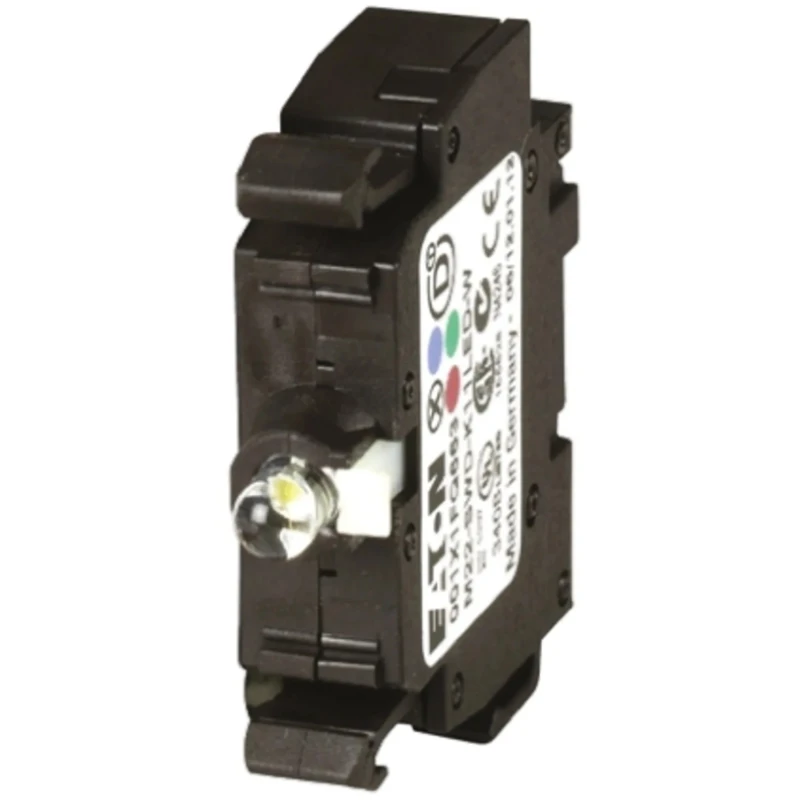

Eaton RMQ Titan M22 Series Contact & Light Block White LED 1 CO 115972 M22-SWD-K11LED-W
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Height | 42mm |
| Length | 45mm |
| Model | 115972 M22-SWD-K11LED-W |
| Width | 12mm |
| Current Rating | 15mA |
| Series | RMQ Titan M22 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 1 CO |
| Minimum Operating Temperature | -30°C |
| Illumination type | LED |
| Standards/Approvals | CSA, EN50178, UL, IEC/EN 61131-2 |
| Block Type | Contact & Light Block |
| Illumination Colour | White |
Key Features
- Features a 1 CO contact configuration suitable for diverse control applications.
- Incorporates an integrated white LED for clear indication.
- Designed for use within the RMQ Titan M22 series push button systems.
- Rated for current load of 15mA ensuring efficient operation.
- Operates reliably over a wide temperature range from -30°C to +55°C.
- Compact dimensions of 45mm length, 42mm height, and 12mm width for panel space-saving.
- IP20 rated providing touch-proof protection for safe handling.
- Maintains stable performance under vibration up to 8.4Hz frequency.
Product Description
Eaton 115972 M22-SWD-K11LED-W contact and light block is a precision component from the RMQ Titan M22 series designed for industrial electrical control panels. It integrates a reliable 1 CO contact with a white LED light, enhancing visual status indication directly on push button switches and indicator units. The unit’s compact size of 45mm length, 42mm height, and 12mm width makes it ideal for space-limited control panel installations.
This product supports a current rating of 15mA and withstands a broad operational temperature range of -30°C to +55°C, allowing for use in challenging environmental conditions across manufacturing, automation, laboratory, and HVAC systems. Its IP20 protection rating ensures safe touch-proof handling during installation and maintenance.
Designed with vibration robustness, the contact and light block maintains connection stability at vibration frequencies up to 8.4Hz, ensuring dependable operation in industrial settings subject to mechanical movement. Additionally, it can be integrated into SmartWire-DT networks using an external device plug, simplifying wiring complexity by consolidating circuits into a single cable, advantageous for manufacturing and automation workflows.
Compliant with CSA, EN50178, UL, and IEC/EN 61131-2 standards, this Eaton contact and light block guarantees performance and safety certification suitable for global industrial applications. The white LED illumination aids in quick visual identification of the system status in control cabinets.
1 CO contact configuration for control signal switching. Integrated white LED for clear panel indication. Compact form factor designed for RMQ Titan M22 series compatibility. Wide operating temperature range from -30°C to +55°C.
IP20 rating ensures touch-proof safety during use. Stable operation under vibration up to 8.4Hz frequency. SmartWire-DT network compatible for simplified wiring. Certified to CSA, EN50178, UL, and IEC/EN 61131-2 standards.
This contact and light block is suitable for a variety of industrial sectors including manufacturing automation, electrical control panels, building and HVAC controls, and laboratory instrumentation. Its reliable LED indication and sturdy construction foster safe and efficient operation within sophisticated control systems. Browse other Eaton RMQ Titan M22 series products and related electrical components on EnvMart for comprehensive control solution needs.
Explore more products in our Push Button Contact Blocks & Light Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this model is 15mA, ensuring efficient operation in various applications.
It operates reliably over a wide temperature range from -30°C to +55°C, making it suitable for diverse environments.
The dimensions of this unit are 45mm in length, 42mm in height, and 12mm in width, allowing for space-saving installation.
This contact and light block features a 1 CO (Change Over) contact configuration, suitable for control signal switching.
Yes, it is compatible with SmartWire-DT networks, simplifying wiring by consolidating circuits into a single cable.
It incorporates an integrated white LED for clear visual indication of system status.
The contact and light block has an IP20 protection rating, ensuring touch-proof safety during handling.
This model is compliant with CSA, EN50178, UL, and IEC/EN 61131-2 standards, ensuring safety and performance certification.
It maintains stable operation under vibration frequencies up to 8.4Hz, ensuring reliable performance in industrial settings.
It is suitable for various industrial sectors, including manufacturing automation, electrical control panels, and HVAC systems.
This contact and light block is manufactured in Germany, reflecting its quality standards.
This product is classified as a contact and light block, designed for integration into push button systems.
