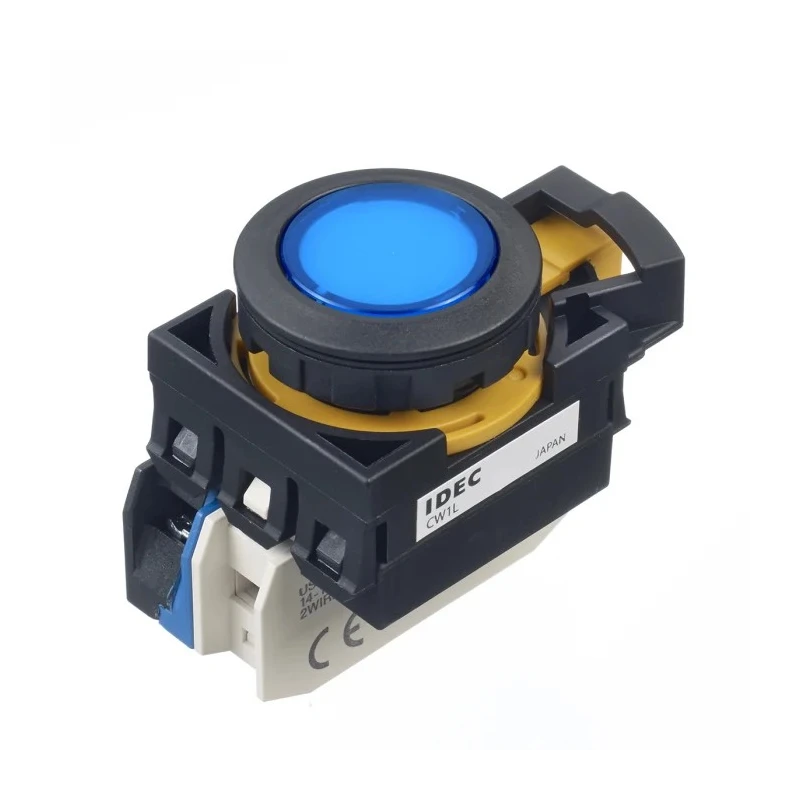

Idec CW Series Illuminated Push Button Switch, Momentary, Panel Mount, 22 mm Cutout, SPST, Blue LED, IP65 CW1L-M1E10QM4S
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Idec |
| Model | CW1L-M1E10QM4S |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | CW |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| LED Colour | Blue |
| Switch Operation | Momentary |
| Actuator Colour | Blue |
| Switch Contact Current | 6A |
Key Features
- Features a momentary switch operation for precise control.
- Blue actuator and LED ensure clear indication.
- Screw terminal type for secure wiring connections.
- Designed with IP65 rating for dust and water resistance.
- Operates reliably between -25°C and 55°C.
- Meets IEC 60947-5-1, UL, CSA, and EU Low Voltage Directive standards.
- Compact panel mount design with 22 mm cutout size.
- Contact current rating of 6A suitable for light duty use.
Product Description
Idec CW1L-M1E10QM4S Illuminated Push Button Switch is a precision-engineered momentary switch designed for industrial and automation applications requiring reliable user control and status indication. This panel mount switch features a 22 mm cutout, making it compatible with standard control panels. Equipped with a blue actuator and blue LED illumination, it provides clear and immediate operator feedback.
The switch uses a Single Pole Single Throw (SPST) contact configuration with screw terminals ensuring secure electrical connections. Rated to IP65, it offers excellent protection against dust ingress and water jets, making it suitable for industrial, manufacturing, electrical panels, and HVAC environments where protection from contaminants is critical.
It can operate efficiently in a temperature range from -25°C to 55°C, providing stability in varying industrial climates. Compliance with IEC 60947-5-1, UL/c-UL, CSA C22.2 No.14, and the EU Low Voltage Directive ensures the component meets rigorous safety and performance standards. The CW series is designed to maintain a sleek, flush silhouette reducing accidental activation and contamination, enhancing panel aesthetics and functionality.
Typical applications include control machinery panels, automation systems, and equipment interfaces requiring illuminated push-button inputs with dependable performance and rugged construction.
Momentary operation for controlled electrical switching. Blue illuminated actuator for visual status feedback. Durable IP65 rated panel mount design. Wide operating temperature range of -25°C to 55°C. Compliant with international IEC, UL, CSA standards.
Screw terminal ensuring reliable wiring connections. 6A contact current rating suitable for light duty operations. Compact 22 mm panel cutout for versatile installation.
This product is ideal for use across industrial automation, electrical control, manufacturing, and commercial building controls. Explore more Push Button Switches and components on EnvMart for advanced control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Single Throw (SPST) contact configuration, allowing for momentary operation.
The maximum operating temperature for the Idec CW1L-M1E10QM4S is 55°C, making it suitable for various industrial environments.
It can operate efficiently in temperatures as low as -25°C, ensuring functionality in colder conditions.
This switch has an IP65 rating, providing protection against dust ingress and water jets, suitable for industrial applications.
The required panel cutout size for this model is 22 mm, allowing for easy integration into standard control panels.
It uses screw terminals, ensuring secure and reliable wiring connections for electrical installations.
The LED illumination on this model is blue, providing clear visual feedback for the operator.
Typical applications include control machinery panels, automation systems, and equipment interfaces requiring illuminated inputs.
The contact current rating is 6A, which is suitable for light duty operations in various applications.
It complies with IEC 60947-5-1, UL/c-UL, CSA C22.2 No.14, and the EU Low Voltage Directive, ensuring safety and performance.
The actuator color is blue, which matches the LED illumination for consistent visual indication.
The Idec CW1L-M1E10QM4S is manufactured in Japan, reflecting its high standards of engineering and quality.
