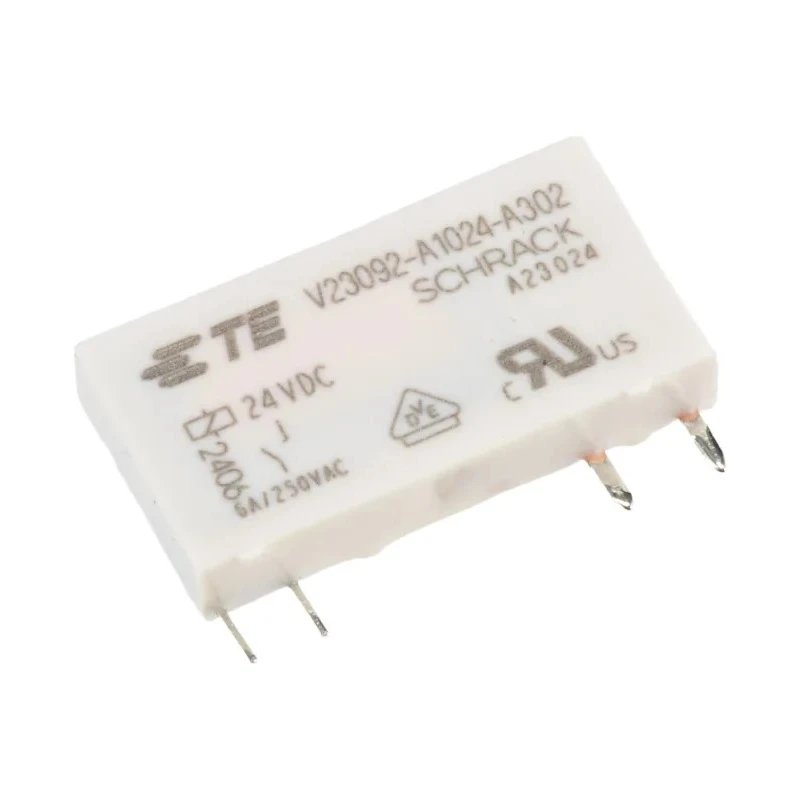

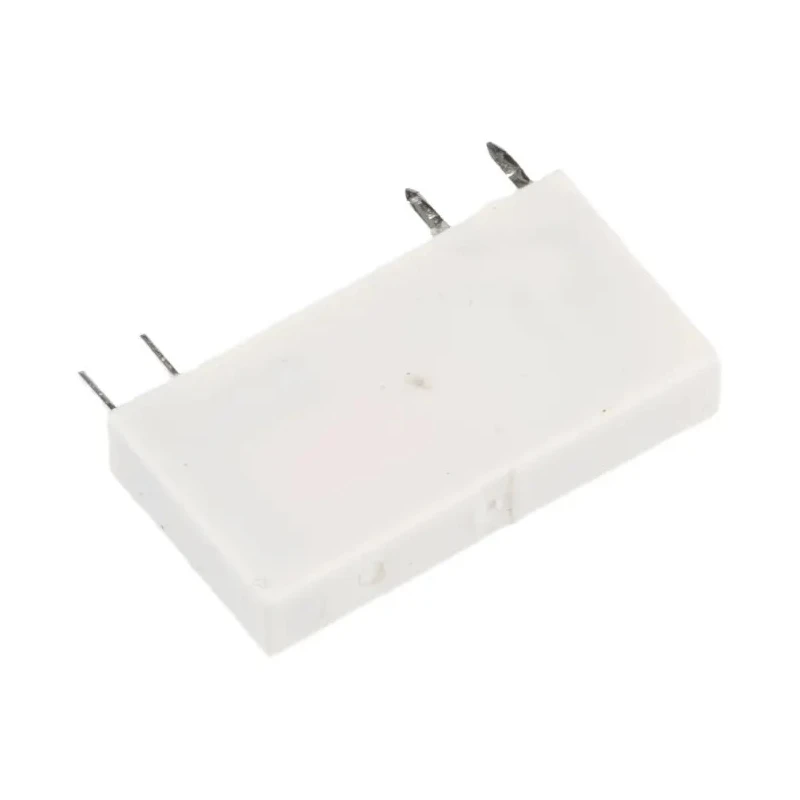

TE Connectivity PCB Power Relay, 24V dc Coil, 6A Switching Current, SPST V23092-A1024-A302

TE Connectivity V23092-A1024-A302 PCB Power Relay features a 24V DC coil voltage with 6A switching current, designed for reliable electrical switching applications. This relay is part of the SNR series and is intended for precision control on printed circuit boards (PCB) with its slim, space-saving design.

With a compact profile measuring 28mm in length, 15mm in height, and 5mm in thickness, this relay is suitable for dense PCB layouts in industrial controls, automation systems, and other electrical equipment. Its high coil sensitivity of 170mW ensures energy-efficient operation making it favorable for applications requiring low power consumption.

The relay supports switching AC voltages up to 400V and an isolation voltage of 4000VAC between coil and contact, ensuring safety and performance in demanding industrial environments. The SPST contact configuration allows for simple switching and control circuits.

Constructed with silver alloy contact material, it offers high durability and reliable electrical conductivity. It operates within a wide temperature range from -40°C to +85°C, making it suitable for harsh operational environments.

The relay is Mount Type PCB, with solder terminals, offering secure and easy installation. It carries certifications including REACH, RoHS, UL, and VDE, confirming compliance with global quality and safety standards.

Features a Single Pole Single Throw (SPST) contact configuration. Designed for PCB mounting with a slim 5mm thickness. Compact dimensions of 28mm length, 15mm height, and 5mm width. High coil sensitivity with low power consumption of 170mW coil power.

Operates reliably in temperatures ranging from -40°C to +85°C. Supports switching AC voltage up to 400V AC and isolation of coil to contact up to 4000VAC. Constructed with silver alloy contacts for durability and performance.

Complies with standards including REACH, RoHS, UL, and VDE approvals. Compact design ideal for high density PCB mounting in electrical and industrial applications.

This power relay serves diverse industrial, automation, electrical control, and manufacturing applications requiring dependable switching. Its robust design and global certifications ensure long-term reliability in critical systems. Browse more high-quality Power Relays from TE Connectivity at EnvMart for suitable integration into your projects.
