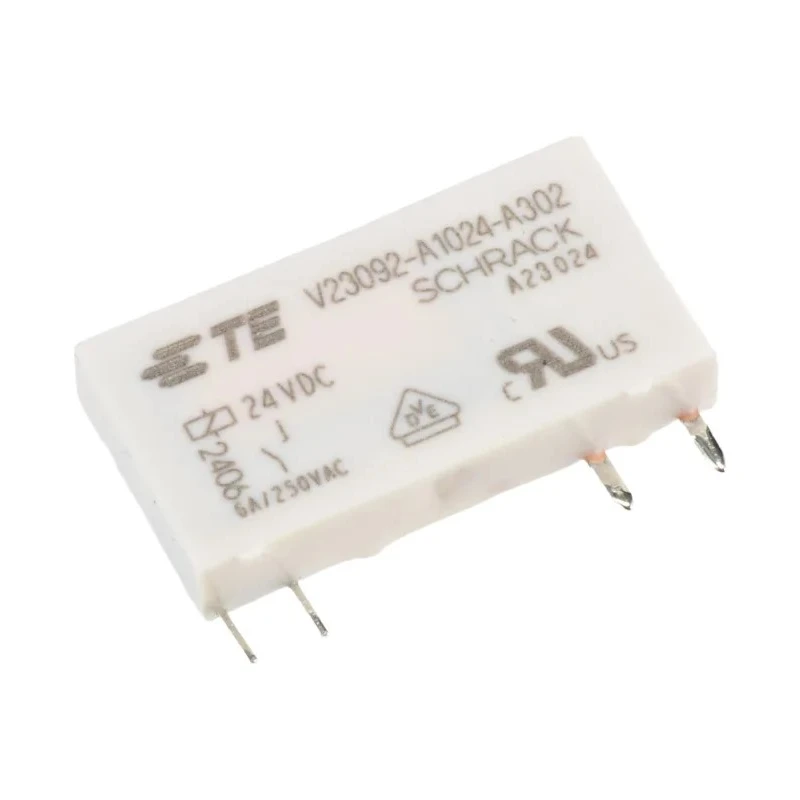

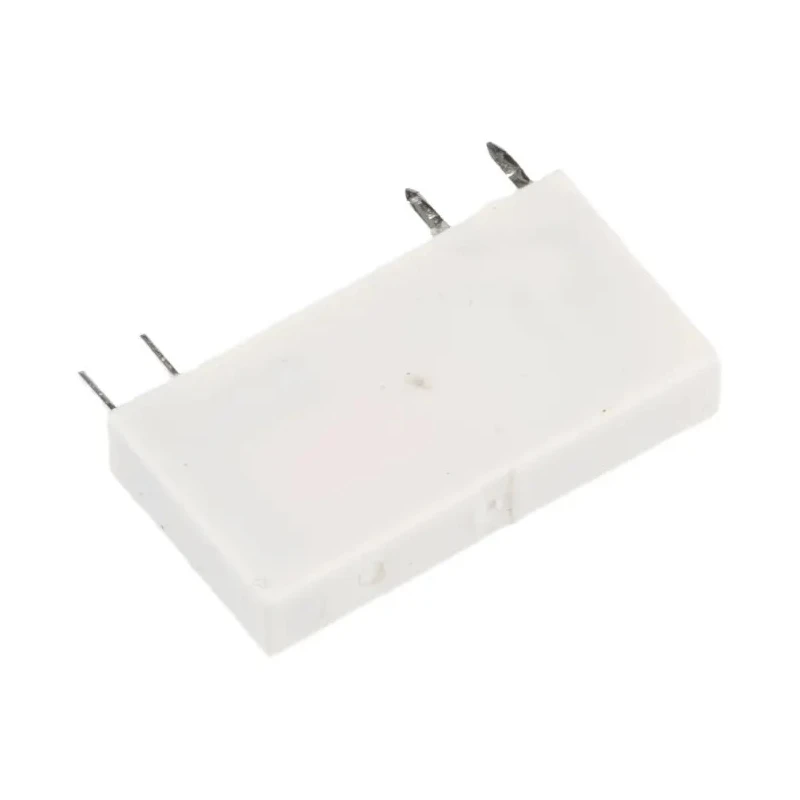

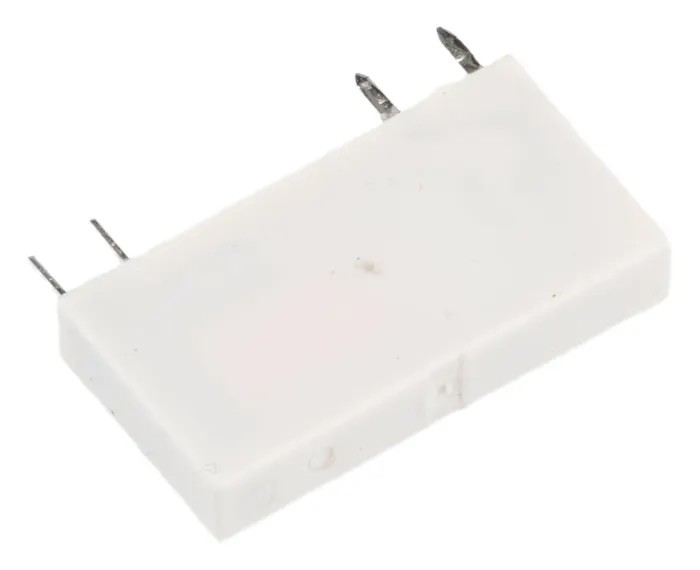

TE Connectivity PCB Power Relay 24V DC Coil 6A Switching Current SPST V23092-A1024-A302 2-1393236-5

TE Connectivity V23092-A1024-A302 2-1393236-5 is a high-performance PCB Power Relay designed for efficient and reliable switching in electrical and industrial applications. Featuring a 24V DC coil voltage and a switching current rating of 6A, this SPST (Single Pole Single Throw) relay is well-suited for power management on circuit boards.

The relay belongs to the SNR series, characterized by its slim design and compact dimensions of 28mm length, 15mm height, and 5mm width, facilitating easy integration into dense PCB layouts. Its coil power consumption is only 170 mW, reflecting high coil sensitivity that optimizes energy usage.

Engineered to operate across a temperature range from -40°C to +85°C, it offers robustness in demanding industrial environments. The silver alloy contact material ensures superior conductivity and long service life, while the solder terminals ensure stable mounting and reliable electrical connections.

Electrical specifications include a switching AC voltage of up to 400V and switching power of 1.5 kVA. The relay provides high isolation with a coil-to-contact voltage rating of 4000Vac, enhancing operational safety and noise immunity.

This product complies with important international standards including REACH, RoHS, UL, and VDE, ensuring environmental safety and regulatory compliance. Manufactured in the Czech Republic, it meets stringent quality requirements expected in industrial automation, electrical systems, and signal conditioning applications.

High coil sensitivity with power consumption of 170mW ensures energy efficiency. Compact design with 5mm thickness allows for high density PCB mounting. Operational temperature range from -40 to +85°C for versatile industrial use.

Silver alloy contacts provide excellent conductivity and durability. Isolation voltage of 4000Vac between coil and contacts for safety and reliability. Suitable for switching AC voltages up to 400V AC and power of 1.5 kVA.

Solder terminal type for secure and stable connections on PCB. Complies with REACH, RoHS, UL, and VDE standards ensuring quality and safety.

This relay is ideal for various industrial and commercial sectors such as automation, control systems, HVAC, manufacturing, and electrical equipment. It provides dependable performance for circuit boards requiring reliable switching solutions with compact form factor.
