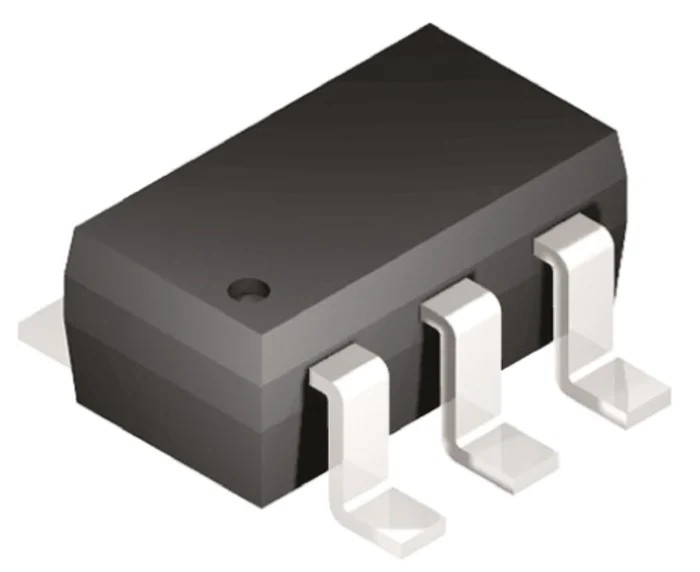

Microchip 8 bit PIC PIC10F Microcontroller 16 MHz FLASH, 6-Pin SOT-23 PIC10F320T-I/OT
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | PIC10F320T-I/OT |
| Width | 1.8mm |
| Mount Type | Surface |
| Series | PIC10F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Ram size | 64bit |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 0.45kB |
| Maximum Clock Frequency | 16MHz |
| Number of Programmable I/Os | 4 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 3 x 8 Bit |
| Program Memory Type | FLASH |
Key Features
- The device operates with a maximum clock frequency of 16 MHz.
- It supports a program memory size of 0.45 kB FLASH and 64 bit RAM.
- The microcontroller has 4 programmable I/Os and 2 built-in timers.
- It functions within a supply voltage range of 2.3 V to 5.5 V, dissipating up to 800 mW power.
- The temperature operating range is -40°C to 85°C for versatile applications.
- Designed with an 8 bit data bus and PIC device core with RISC architecture.
- Features 3 x 8 bit ADCs and is RoHS compliant.
- The compact dimensions (3.1 mm length, 1.8 mm width, 1.3 mm height) fit small form factor designs.
Product Description
Microchip PIC10F320T-I/OT is an 8-bit PIC microcontroller designed for compact applications requiring efficient processing. Operating at 16 MHz clock speed, it features 0.45 kB FLASH program memory, 64 bit RAM, and a 6-Pin SOT-23 surface mount package, making it ideal for space-constrained electronic assemblies.
The device supports up to 4 programmable I/Os and incorporates 2 timers for timing and control tasks. Operating voltage ranges from 2.3 V to 5.5 V with power dissipation up to 800 mW, suitable for low power embedded systems. Its operating temperature range from -40°C to 85°C allows use in industrial and commercial environments.
The PIC10F320T-I/OT uses a RISC instruction set architecture, providing 14-bit wide instructions and a versatile peripheral set including 3 channels of 8-bit ADCs. It is RoHS compliant, meeting modern environmental standards.
With its miniature dimensions - 3.1 mm length, 1.8 mm width, and 1.3 mm height - it fits perfectly in designs prioritizing compactness. The microcontroller is suitable for use in industrial control, automotive applications (non-automotive certified), consumer electronics, and embedded systems requiring reliable 8-bit processing.
The 6-Pin SOT-23 package supports surface-mount technology for automated PCB assembly. The microcontroller’s hardware stack and interrupt capabilities enhance multi-tasking performance. Robust program memory supports self-read and write operations improving programming flexibility.
Ideal for applications balancing cost, size, and processing needs in mid-range MCU category. Program memory type is FLASH, enabling reprogrammability during development cycles.
This Microchip PIC10F320T-I/OT microcontroller combines low pin count, compact packaging, and technical features necessary for embedded computing across diverse industrial, laboratory, HVAC, and commercial uses. Browse our electronics and semiconductor categories for more options in Microcontrollers and related components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 16 MHz.
It has a program memory size of 0.45 kB FLASH.
The supply voltage range is from 2.3 V to 5.5 V.
This microcontroller features 4 programmable I/Os.
The operating temperature range is from -40°C to 85°C.
It uses a 6-Pin SOT-23 surface mount package.
The maximum power dissipation is up to 800 mW.
The RAM size is 64 bits.
This model includes 2 built-in timers.
It uses a RISC instruction set architecture.
It features 3 channels of 8-bit ADCs.
Yes, it is RoHS compliant, meeting modern environmental standards.
