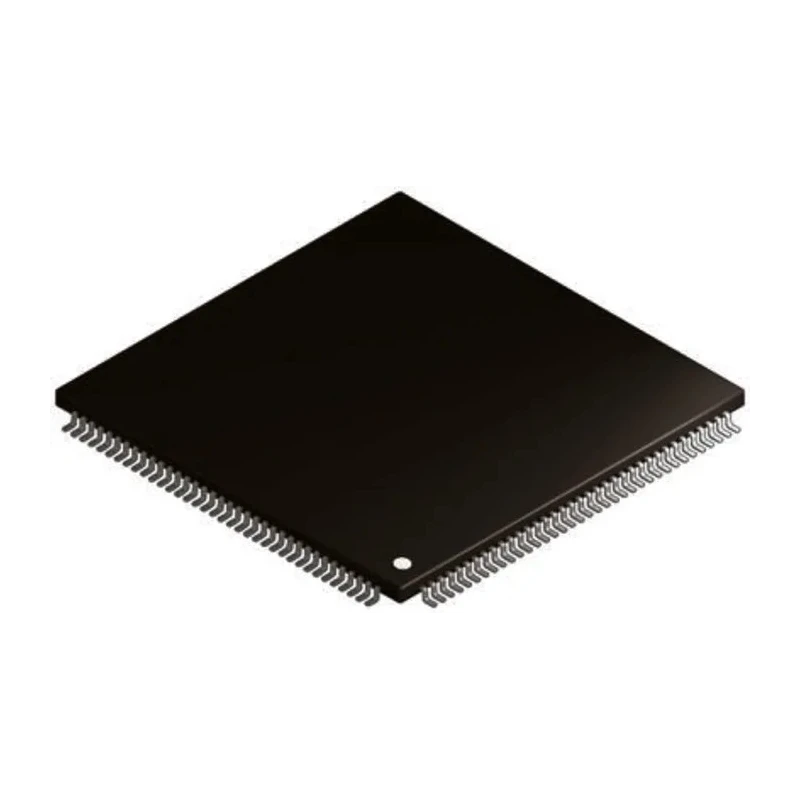

Microchip 16 bit dsPIC33EP Microcontroller 70 MHz 536kB FLASH 144-Pin TQFP dsPIC33EP512MU814-I/PH
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 16mm |
| Model | dsPIC33EP512MU814-I/PH |
| Width | 16mm |
| Mount Type | Surface |
| Series | DsPIC33EP |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 52kB |
| Pin Count | 144 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Device Core | dsPIC |
| Program Memory Size | 536kB |
| Maximum Clock Frequency | 70MHz |
| Analogue Comparators | 3 |
| Number of Timers | 13 |
| Instruction Set Architecture | C |
| ADCs | 32 x 12/24 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 4 Bit |
Key Features
- Operates at a maximum clock frequency of 70 MHz.
- Features 536kB of FLASH program memory for extensive code storage.
- Includes 52kB RAM and 32 ADC channels with 12/24 bit resolution.
- Equipped with 13 timers and 3 analogue comparators for precise control.
- Utilizes a 16 bit data bus width and dsPIC device core architecture.
- Comes in a 144-pin TQFP package with surface mount type for efficient layout.
- Supports automotive standard AEC-Q100 ensuring reliability in automotive applications.
- Operates within temperature range of -40°C to 85°C.
Product Description
Microchip dsPIC33EP512MU814-I/PH is a 16 bit dsPIC33EP series microcontroller designed for high-performance digital signal control applications. Featuring a powerful 70 MHz clock frequency and 536kB of FLASH memory, this device combines the capabilities of a DSP with the simplicity of an MCU.
This microcontroller includes 52kB of RAM, 32 ADC channels with 12/24 bit resolution, and 13 timers, making it suitable for complex control algorithms and precision timing. The 16 bit data bus and dsPIC device core aid in efficient data processing with low power consumption.
The device is housed in a 144-pin TQFP package with surface mount, facilitating compact and efficient PCB layouts. It complies with automotive standard AEC-Q100, ensuring suitability for automotive and harsh environment applications.
Operating within a temperature range of -40°C to 85°C and supply voltage range of 3 V to 3.6 V, the microcontroller is robust for diverse industrial uses including digital filtering, motor control, and speech/audio processing.
Additional features include 3 analogue comparators and a 1 x 4 bit DAC that support high precision analog signal manipulation. The microcontroller is ideal for use in industrial automation, automotive systems, power management, and embedded control solutions.
Operates at a maximum clock frequency of 70 MHz. Features 536kB of FLASH program memory for extensive code storage. Includes 52kB RAM and 32 ADC channels with 12/24 bit resolution. Equipped with 13 timers and 3 analogue comparators for precise control.
Utilizes a 16 bit data bus width and dsPIC device core architecture. Comes in a 144-pin TQFP package with surface mount type for efficient layout. Supports automotive standard AEC-Q100 ensuring reliability in automotive applications.
Operates within temperature range of -40°C to 85°C. Minimum supply voltage is 3 V and maximum supply voltage is 3.6 V ensuring operational stability. Incorporates 1 x 4 bit DAC for digital to analog conversions.
This microcontroller provides a flexible platform for embedded systems demanding high processing speed and precise control with advanced analog features. Explore EnvMart’s extensive Microchip Microcontroller range for reliable industrial-grade components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the dsPIC33EP512MU814-I/PH is 70 MHz.
It features 536kB of FLASH program memory for extensive code storage.
This microcontroller includes 52kB of RAM.
It includes 32 ADC channels with 12/24 bit resolution.
The operating temperature range is from -40°C to 85°C.
It comes in a 144-pin TQFP package with surface mount type.
It supports the automotive standard AEC-Q100, ensuring reliability in automotive applications.
This model is equipped with 13 timers for precise control.
The supply voltage range is from 3 V to 3.6 V.
It utilizes a 16 bit data bus width.
Yes, it incorporates 1 x 4 bit DAC for digital to analog conversions.
It is suitable for applications in industrial automation, automotive systems, power management, and embedded control solutions.
