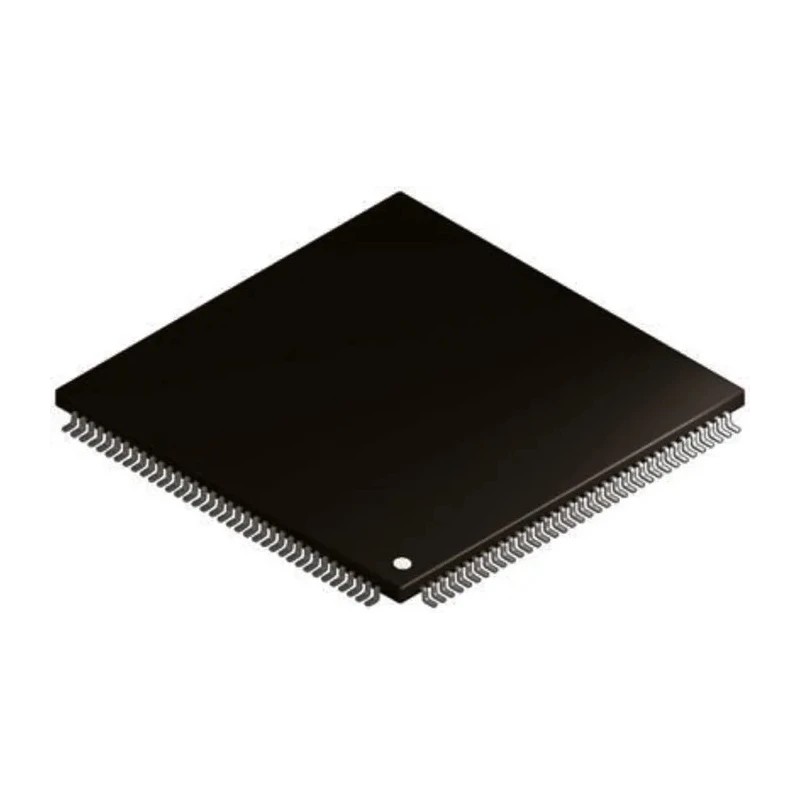

Microchip 16 bit dsPIC dsPIC33EP512MU814-I/PL Microcontroller 70 MHz 536kB FLASH 144-Pin LQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.4mm |
| Length | 20mm |
| Model | dsPIC33EP512MU814-I/PL |
| Width | 20mm |
| Mount Type | Surface |
| Series | dsPIC33EPXXXMU814 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 52kB |
| Pin Count | 144 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Device Core | dsPIC |
| Program Memory Size | 536kB |
| Maximum Clock Frequency | 70MHz |
| Analogue Comparators | 3 |
| Number of Timers | 13 |
| Instruction Set Architecture | C |
| ADCs | 32 x 12/24 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 4 Bit |
Key Features
- Operates at a maximum clock frequency of 70 MHz for efficient processing.
- Features 536kB of FLASH program memory and 52kB RAM size.
- Includes 32 x 12/24 Bit ADCs and 3 analogue comparators for precise signal control.
- Supports a wide operating voltage range between 3V and 3.6V.
- Designed for automotive applications with AEC-Q100 certification.
- Equipped with 13 timers and 1 DAC (4 Bit) for versatile timing and output capabilities.
- Compact dimensions with 20mm length, 20mm width, and 1.4mm height in Surface Mount LQFP package.
- Operating temperature range from -40°C to 85°C suitable for harsh environments.
Product Description
Microchip dsPIC33EP512MU814-I/PL is a 16 bit dsPIC microcontroller combining DSP performance with MCU simplicity. It operates at a maximum frequency of 70 MHz and features 536kB FLASH program memory, making it ideal for complex digital signal processing tasks in industrial and automotive applications.
This device includes 32 ADC channels of 12/24 Bit resolution, 3 analogue comparators, and 1 DAC with 4 Bit resolution, supporting precise analog signal conversion and processing. The microcontroller is equipped with 13 timers, providing advanced timing and counting functionalities essential for embedded system control.
It comes in a 144-Pin Low Quad Flat Package (LQFP) with surface mount technology. The compact dimensions of 20mm by 20mm by 1.4mm enable efficient use of PCB space. The device supports operation at supply voltages from 3V up to 3.6V, with an operating temperature range of -40°C to 85°C, meeting demanding industrial and automotive standards, including AEC-Q100 automotive certification.
This microcontroller is suitable for use in precision motor control, power management, audio processing, and other complex embedded applications requiring high computational performance and robust analog interfacing.
Operates at a maximum clock frequency of 70 MHz for efficient processing. Features 536kB of FLASH program memory and 52kB RAM size. Includes 32 ADC channels and 3 analogue comparators for precise signal control. Supports a wide operating voltage range between 3V and 3.6V.
Designed for automotive applications with AEC-Q100 certification. Equipped with 13 timers and 1 DAC (4 Bit) for versatile timing and output capabilities. Compact dimensions with 20mm length, 20mm width, and 1.4mm height in Surface Mount LQFP package.
Operating temperature range from -40°C to 85°C suitable for harsh environments.
Explore this Microchip microcontroller to upgrade your embedded systems in industrial, automotive, and consumer electronics domains. Browse additional Microcontroller models and components for your projects here at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a maximum clock frequency of 70 MHz, allowing for efficient processing capabilities.
This model features 536kB of FLASH program memory, suitable for complex digital signal processing tasks.
It supports a wide operating voltage range between 3V and 3.6V, making it versatile for various applications.
The operating temperature range is from -40°C to 85°C, suitable for harsh environments.
It includes 32 ADC channels with 12/24 Bit resolution for precise analog signal conversion.
It is designed for automotive applications and meets AEC-Q100 certification standards.
This model has compact dimensions of 20mm length, 20mm width, and 1.4mm height in a Surface Mount LQFP package.
It is equipped with 13 timers, providing advanced timing and counting functionalities essential for embedded systems.
Yes, it includes 1 DAC with 4 Bit resolution for output capabilities.
It features a RAM size of 52kB, which supports its processing tasks.
The microcontroller comes in a 144-Pin Low Quad Flat Package (LQFP) with surface mount technology.
It utilizes the C instruction set architecture, which is common for microcontrollers.
