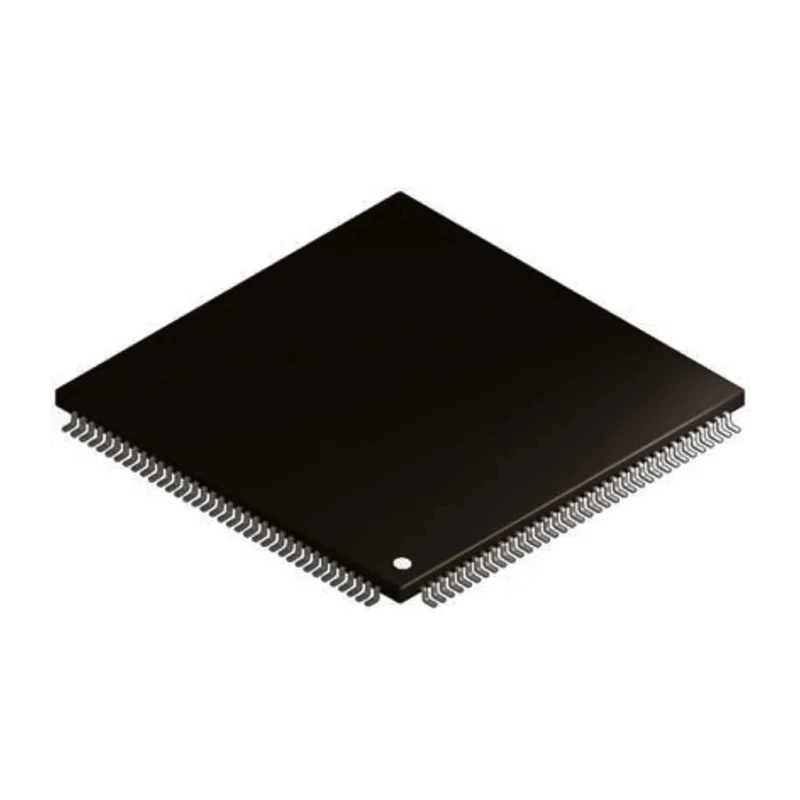

Microchip 16 bit dsPIC33EPXXXMU814 Microcontroller 70 MHz 536kB FLASH 144-Pin LQFP dsPIC33EPXXXMU814
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.4mm |
| Length | 20mm |
| Model | dsPIC33EPXXXMU814 |
| Width | 20mm |
| Mount Type | Surface |
| Series | dsPIC33EPXXXMU814 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 52kB |
| Pin Count | 144 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Device Core | dsPIC |
| Program Memory Size | 536kB |
| Maximum Clock Frequency | 70MHz |
| Analogue Comparators | 3 |
| Number of Timers | 13 |
| Instruction Set Architecture | C |
| ADCs | 32 x 12/24 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 4 Bit |
Key Features
- High performance 16-bit dsPIC device combining microcontroller and DSP capabilities.
- Operates at a maximum clock frequency of 70 MHz, suitable for complex digital processing.
- Embedded 536kB FLASH memory and 52kB RAM for efficient program and data storage.
- Equipped with 32 x 12/24-bit ADCs, 3 analogue comparators, and 1 x 4-bit DAC for precise signal processing.
- Designed for surface mount applications with a compact 20 mm x 20 mm x 1.4 mm LQFP package.
- Wide operating temperature range from -40°C to 85°C for industrial and automotive use.
- Complies with AEC-Q100 automotive standard ensuring quality and durability.
- Features 13 timers and a C instruction set architecture for versatile embedded programming.
Product Description
The Microchip dsPIC33EPXXXMU814 Microcontroller combines the efficiency of a 16-bit microcontroller with digital signal processing capabilities, running at a maximum clock speed of 70 MHz and equipped with 536kB FLASH memory. Encased in a 144-Pin Low Quad Flat Package (LQFP) measuring 20 mm by 20 mm and 1.4 mm in height, it is designed for compact surface mount installations.
This device features 32 channels of analog-to-digital converters (ADCs) with 12/24-bit resolution, 3 analogue comparators, and a 4-bit DAC, enabling precise control and measurement in embedded systems. Its 52kB RAM supports complex applications requiring fast data handling. With 13 timers and a C-based instruction set, it is well-suited for facilitating real-time control and processing tasks.
Operating within a wide voltage range from 3 V to 3.6 V and a temperature range of -40°C to 85°C, this microcontroller meets the demanding conditions of industrial and automotive sectors. The product adheres to the AEC-Q100 automotive qualification standard, confirming its reliability for automotive applications.
The dsPIC33EP series excels in digital filtering algorithms, high-speed control loops, and audio processing tasks. Its integrated motor control peripherals enable precision motor management, while the SMPS (Switched-Mode Power Supply) peripherals, including high-resolution PWM, fast ADC, and analog comparators, support advanced power supply designs.
High performance 16-bit dsPIC device combining microcontroller and DSP capabilities. Operates at a maximum clock frequency of 70 MHz, suitable for complex digital processing. Embedded 536kB FLASH memory and 52kB RAM for efficient program and data storage.
Equipped with 32 x 12/24-bit ADCs, 3 analogue comparators, and 1 x 4-bit DAC for precise signal processing. Designed for surface mount applications with a compact 20 mm x 20 mm x 1.4 mm LQFP package. Wide operating temperature range from -40°C to 85°C for industrial and automotive use.
Complies with AEC-Q100 automotive standard ensuring quality and durability. Features 13 timers and a C instruction set architecture for versatile embedded programming.
This microcontroller is ideal for industrial automation, automotive electronics, power management, and embedded control systems requiring robust processing power and advanced peripheral integration. Explore the full range of Microchip Microcontrollers and components at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 70 MHz, allowing it to handle complex digital processing tasks effectively.
It features an embedded program memory size of 536kB FLASH, providing ample storage for program code.
This microcontroller is equipped with 32 channels of 12/24-bit ADCs, enabling precise signal processing.
The dimensions of this microcontroller are 20 mm x 20 mm with a height of 1.4 mm, designed for surface mount applications.
It operates within a wide temperature range of -40°C to 85°C, suitable for industrial and automotive applications.
This model is packaged in a 144-Pin Low Quad Flat Package (LQFP), ideal for compact installations.
The microcontroller includes 52kB of RAM, supporting complex applications that require fast data handling.
It features 13 timers, which facilitate real-time control and processing tasks.
This microcontroller complies with the AEC-Q100 automotive standard, ensuring its reliability for automotive applications.
The dsPIC33EPXXXMU814 operates within a supply voltage range of 3 V to 3.6 V.
It utilizes a C instruction set architecture, which is versatile for embedded programming.
This model includes 3 analogue comparators and 1 x 4-bit DAC, enhancing its signal processing capabilities.
