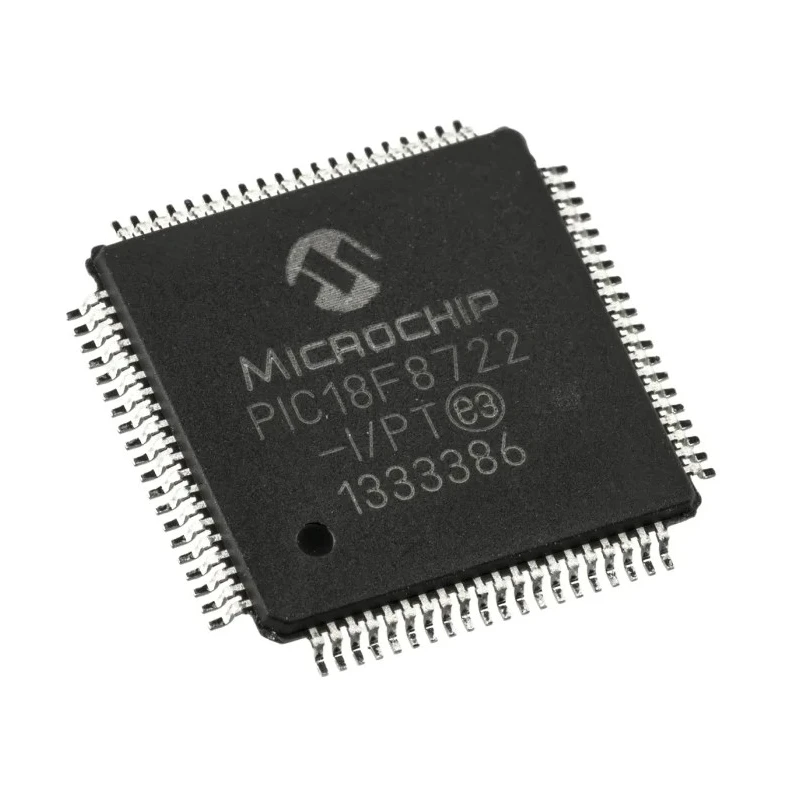

Microchip 8-bit PIC18F Microcontroller 40 MHz, 1.024kB RAM, 128 kB FLASH, 80-Pin TQFP PIC18F8722-I/PT

Microchip PIC18F8722-I/PT is an advanced 8-bit PIC18F microcontroller operating at a maximum frequency of 40 MHz. It features 1.024kB RAM and 128 kB of FLASH program memory housed in an 80-Pin TQFP surface mount package, designed for embedded system applications requiring high performance and reliability.

This microcontroller supports multiple communication interfaces including EUSART, I2C, and SPI, facilitating versatile connectivity in embedded designs. It includes 16 channels of 10-bit analog-to-digital converters and two analog comparators, enabling precise analog signal processing suitable for sensor interfacing and control systems.

The device architecture incorporates a hardware 8 x 8 single-cycle multiplier, enhancing computational efficiency for complex operations. It operates within a wide voltage range of 2.0V to 5.5V and supports multiple power management modes such as Run, Idle, and Sleep, balancing performance with low power consumption critical for battery-operated devices.

Reliability features include a programmable brown-out reset and an extended watchdog timer to ensure robust operation in fault conditions. Operating temperature spans from -40°C to 85°C, conforming to industrial use case requirements. The microcontroller also meets the ISO/TS 16949 automotive standard, making it suitable for automotive electronics applications.

Additional peripherals include five timers, 70 programmable digital I/O pins, and flexible oscillator structures with two-speed start-up capability. The architecture is RISC-based with an instruction set optimized for C compilers, facilitating efficient software development.

Supports EUSART, I2C, and SPI interfaces for communication flexibility. Wide operating voltage range from 2V to 5.5V. 16 x 10-bit ADC channels and 2 analog comparators for analog interfacing. Includes extended watchdog timer and programmable brown-out reset.

Measures 12mm x 12mm with a height of 1.05mm in TQFP package. Supports multiple power modes: Run, Idle, and Sleep. Operates at -40°C to 85°C temperature range, suitable for industrial environments. Complies with ISO/TS 16949 automotive standard.

Contains 70 programmable I/O pins and 5 timers for versatile control.

This microcontroller is ideal for industrial automation, automotive electronics, HVAC controls, communication devices, and other embedded system applications requiring robust, feature-rich 8-bit microcontrollers.
