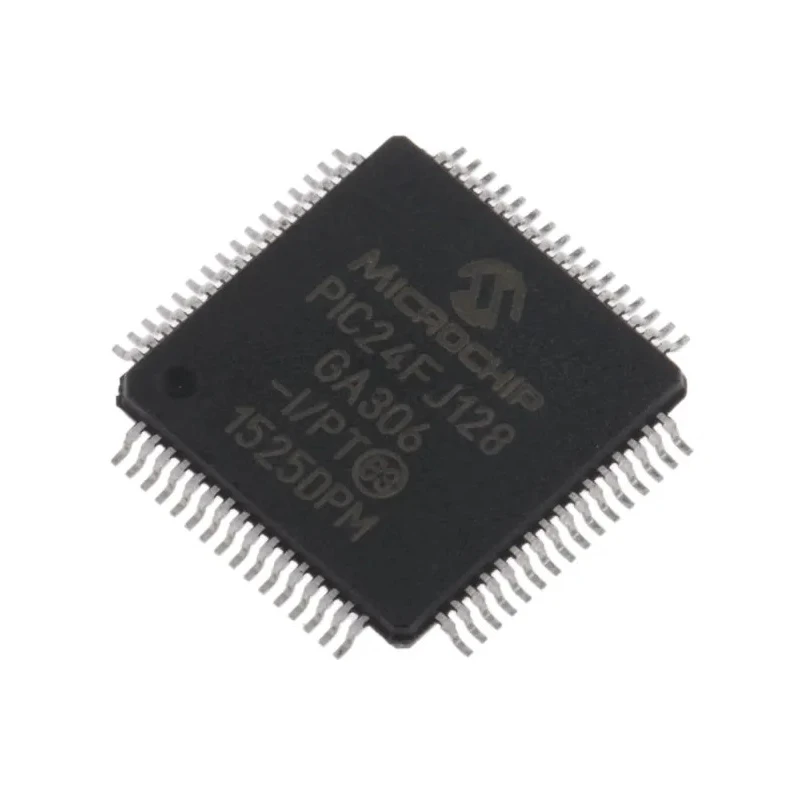

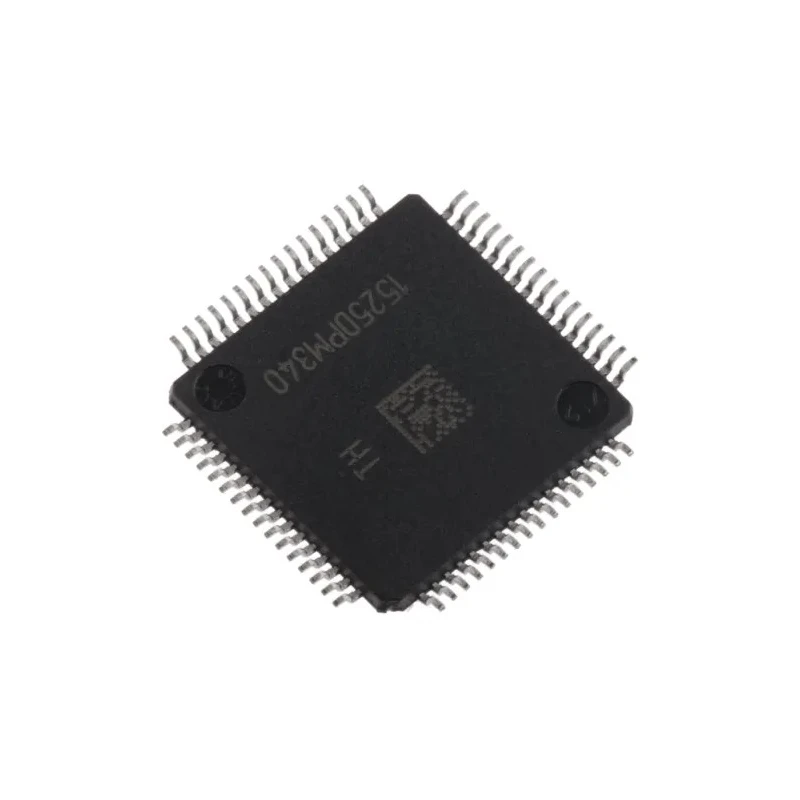

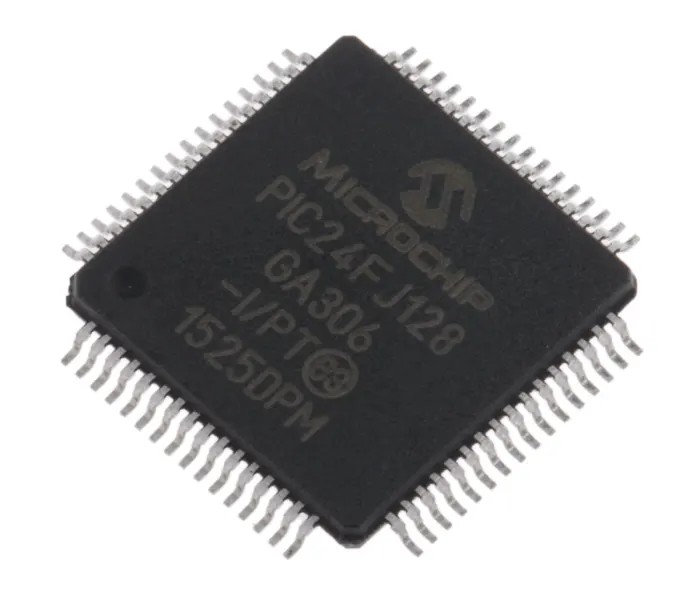

Microchip 16 bit PIC24FJ Microcontroller 32 MHz 128kB FLASH 64-Pin TQFP PIC24FJ
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC24FJ |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 3 |
| Number of Timers | 5 |
| Instruction Set Architecture | Modified Harvard |
| ADCs | 16 x 10/12 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with a maximum supply voltage of 3.6V.
- Features 8kB RAM suitable for embedded applications.
- Includes 16 channels of 10/12 bit ADCs and 3 analogue comparators.
- Supports up to 5 timers for precise control functions.
- Designed with modified Harvard architecture for efficient processing.
- Operating temperature range from -40°C to 85°C for industrial use.
- Compact dimensions of 10mm length, 10mm width, and 1.05mm height.
- Surface mount device with 64 pins in TQFP package type.
Product Description
Microchip PIC24FJ 16 bit microcontroller PIC24FJ128GA306-I/PT provides high performance embedded control with a 32 MHz clock frequency and 128kB of flash program memory. This device supports a 16-bit data bus width and contains 8kB of RAM, allowing efficient data processing and storage for complex embedded applications.
Featuring 16 channels of 10/12 bit analog-to-digital converters and 3 analogue comparators, it enables precise measurement and control functions.
The microcontroller operates within a supply voltage range of 2V to 3.6V and a temperature range from -40°C to 85°C, making it suitable for demanding industrial and automotive environments.
The 64-pin TQFP surface mount package ensures a compact footprint ideal for PCB designs requiring high pin count and small form factor. Additional features include 5 timers, modified Harvard instruction set architecture, and no automotive industry certifications.
This microcontroller is tailored for use in embedded systems, industrial automation, instrumentation, and control applications where reliability and performance are critical. Operates at 32 MHz clock frequency for fast processing.
128kB of FLASH program memory for code storage. 16-bit data bus supports efficient data handling. Includes ADCs and analogue comparators for sensor interfacing. Wide operating temperature range suitable for harsh environments.
Compact 64-pin TQFP surface mount package. Five timers provide versatile timing functions. Manufactured in Thailand adhering to quality standards. Modified Harvard architecture for streamlined instruction processing. Ideal for industrial control and embedded applications.
Discover more electronics components and Microcontrollers at EnvMart to enhance your development projects with reliable products from leading brands like Microchip.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC24FJ microcontroller operates at a maximum clock frequency of 32 MHz.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial applications.
This microcontroller features 128kB of FLASH program memory for code storage.
The microcontroller supports a supply voltage range from 2V to 3.6V.
It includes 16 channels of 10/12 bit analog-to-digital converters (ADCs).
The dimensions are 10mm in length, 10mm in width, and 1.05mm in height.
There are 5 timers available for precise control functions.
It comes in a 64-pin TQFP (Thin Quad Flat Package) surface mount package.
It is designed with a modified Harvard architecture for efficient processing.
The PIC24FJ has 8kB of RAM suitable for embedded applications.
It is manufactured in Thailand, adhering to quality standards.
It is tailored for use in embedded systems, industrial automation, instrumentation, and control applications.
