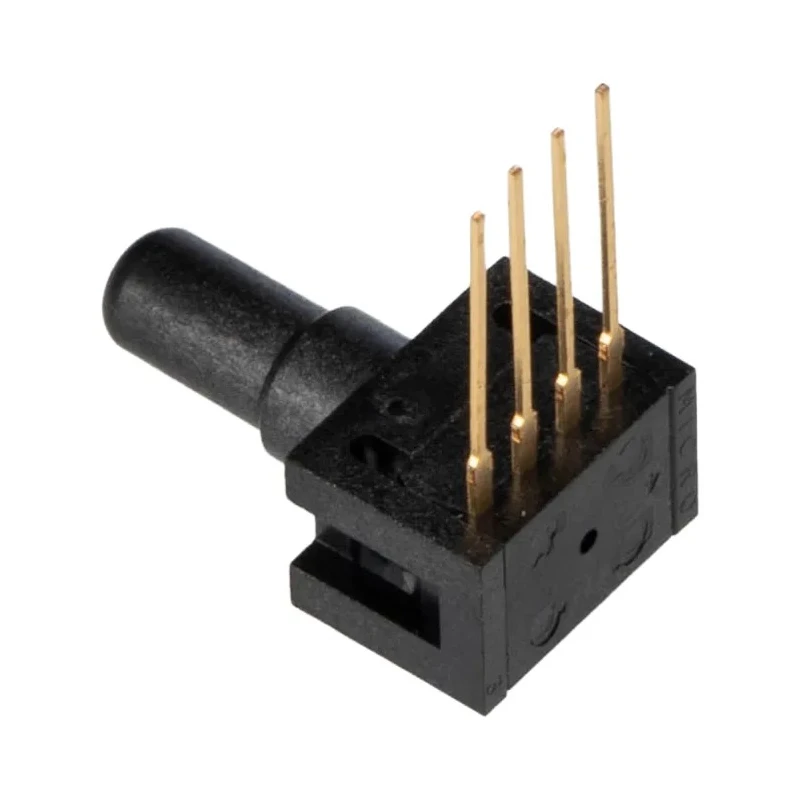

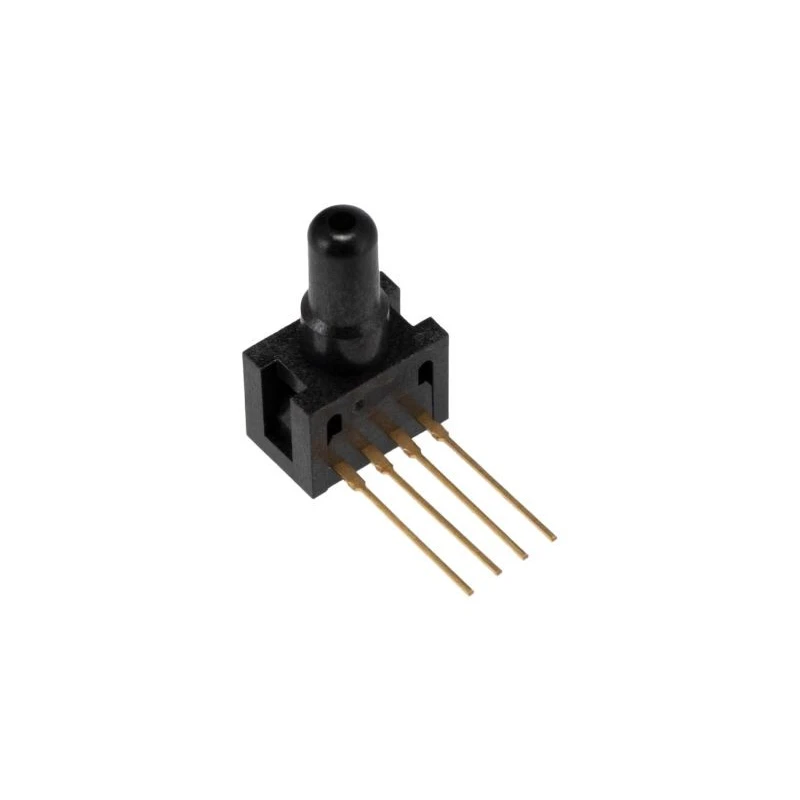

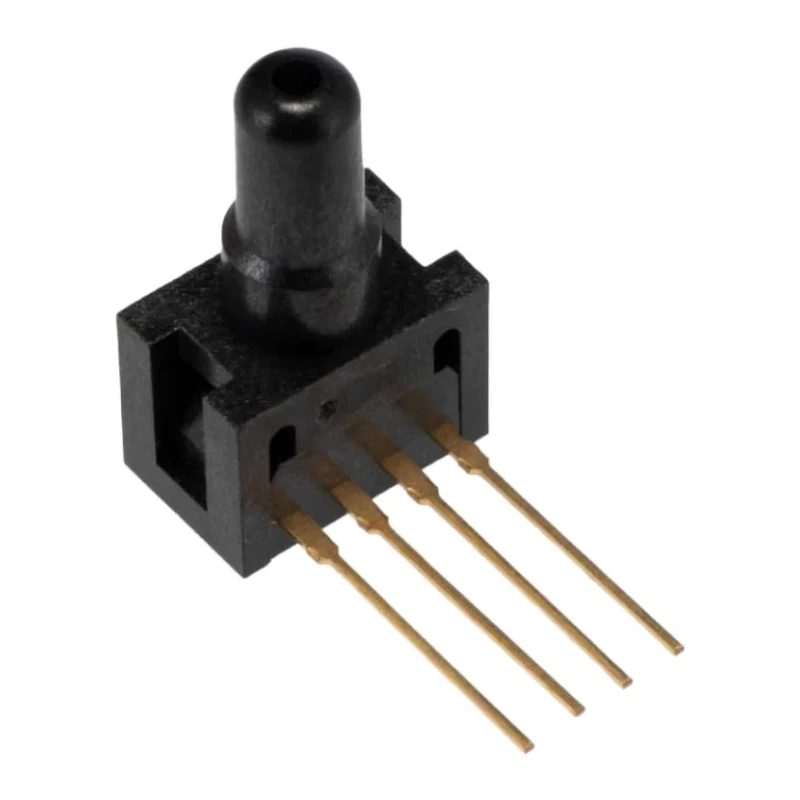

Honeywell Technologies 24PC Series Pressure Sensor, Wheatstone Bridge Output, 0 psi Min Pressure, 15 psi Max 24PCCFA6G

Honeywell 24PCCFA6G from the 24PC Series is a high-performance pressure sensor providing precise relative (gauge) pressure measurement with Wheatstone Bridge output. It measures pressures from 0 psi minimum up to 15 psi maximum and is designed for use in commercial and industrial settings requiring accurate pressure sensing on printed circuit boards.

The sensor utilizes a piezo-resistive micro-machined sensing element that converts pressure changes into electrical resistance, enabling rapid and accurate measurement with an accuracy of 0.2 percent. The device supports both gaseous and liquid pressure media, specifically compatible with water and other media compatible with its polyphthalamide (PPA) plastic housing and seals.

Operating voltage ranges from 2.5V DC up to a maximum of 12V DC, facilitating power-efficient integration into diverse control systems. It exhibits a wide operating temperature range from -40°C to 85°C, making it suitable for harsh environments commonly found in industrial, manufacturing, laboratory, and water control applications.

The miniature Surface Mount Technology (SMT) package minimizes PCB footprint and simplifies assembly. The sensor features soldering terminals for reliable electrical connections and weighs approximately 2 grams, reducing mechanical strain on the board. Its rapid 1 ms response time enables fast pressure changes detection, aiding precise machine control in applications such as water control valves, air leak detection, and oxygen/nitrogen distribution systems.

Measures gauge pressure from 0 to 15 psi accurately and reliably. Compact SMT package for downsized PCB footprint and assembly efficiency. Robust performance over wide temperature ranges from -40 to 85 degrees Celsius. Compatible with both liquid and gas media including water.

Complies with international RoHS and ISO standards ensuring quality and environmental safety. Low weight and fast response time improve system responsiveness and durability.

This gauge pressure sensor is ideal for industrial automation, fluid control, HVAC systems, medical devices, and laboratory instruments, providing precise pressure sensing capability for demanding applications. Explore other Pressure Sensor models and Honeywell products on EnvMart for optimized industrial control and monitoring solutions.
