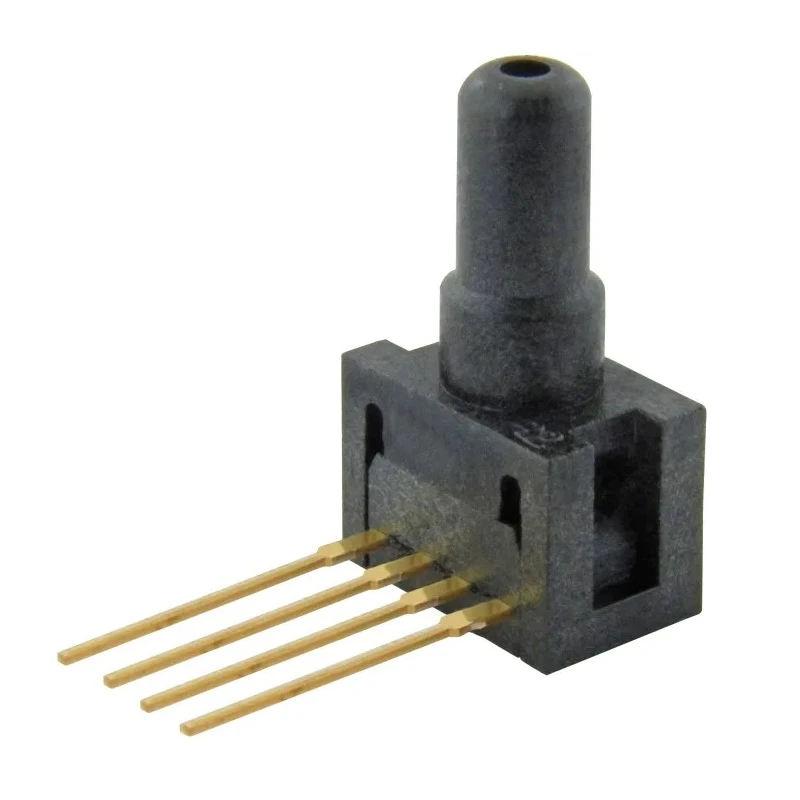

Honeywell Technologies 24PC Series Pressure Sensor 0 to 1 psi, Wheatstone Bridge Output, SMT Surface Mount 24PCAFA6G

Honeywell 24PCAFA6G 24PC Series Pressure Sensor is a precise, compact low pressure sensor designed with miniature Surface Mount Technology (SMT) for efficient PCB integration. This sensor operates over a pressure range from 0 psi to 1 psi with a Wheatstone bridge output, offering high accuracy of ±0.2% and reliable relative pressure measurement suitable for wet/wet differential pressure sensing.

The compact SMT package minimizes PCB space requirements and manufacturing costs by enabling direct board mounting alongside other SMT devices. It utilizes a specialized piezo-resistive micro-machined sensing element to ensure high performance and durability. The 24PC series model is unamplified and uncompensated, optimized for a variety of standard industrial, laboratory, and HVAC sensor applications.

The sensor measures media such as water, nitrogen, and oxygen, maintaining stable readings over a broad temperature range from -40°C to 85°C. It operates with a minimum supply voltage of 2.5 V up to a max of 12 V and features a rapid 1 ms response time, making it ideal for processes requiring prompt pressure feedback.

Its soldering terminal type ensures secure installation on printed circuit boards, supporting automation, control systems, and measurement devices in industrial machinery and instrumentation contexts.

This pressure sensor complies with ISO and RoHS standards, confirming quality in manufacturing and environmental safety. Compact SMT mounting package reduces PCB size and assembly time. Wet/wet capability permits use with liquids on both sensing ports.

Uncompensated and unamplified 24PC series sensor design. Measures pressures from 0 to 1 psi with ±0.2% accuracy. Compatible media include water, nitrogen, and oxygen. Operating temperature range of -40°C to 85°C enables diverse usage.

Minimum supply voltage of 2.5 V and maximum of 12 V. Fast 1 ms response time suitable for real-time pressure monitoring. Soldering terminal type for robust PCB mounting.

This Honeywell 24PC Series Pressure Sensor is suited for industrial tools, instrumentation, laboratory equipment, HVAC controls, and water treatment systems. Explore our wide range of Pressure Sensors and related devices to meet your precise measurement needs.
