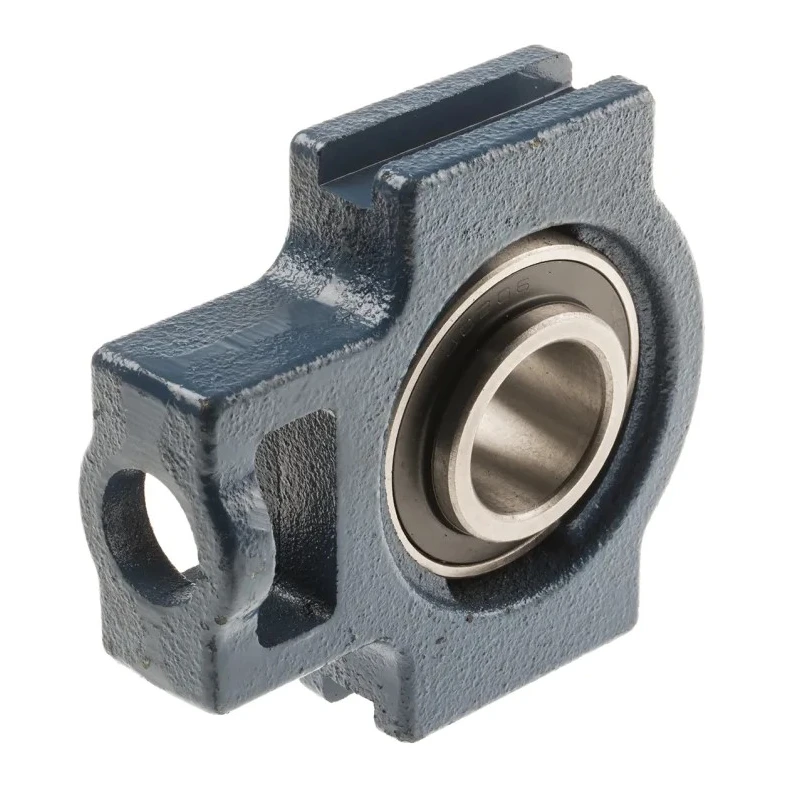

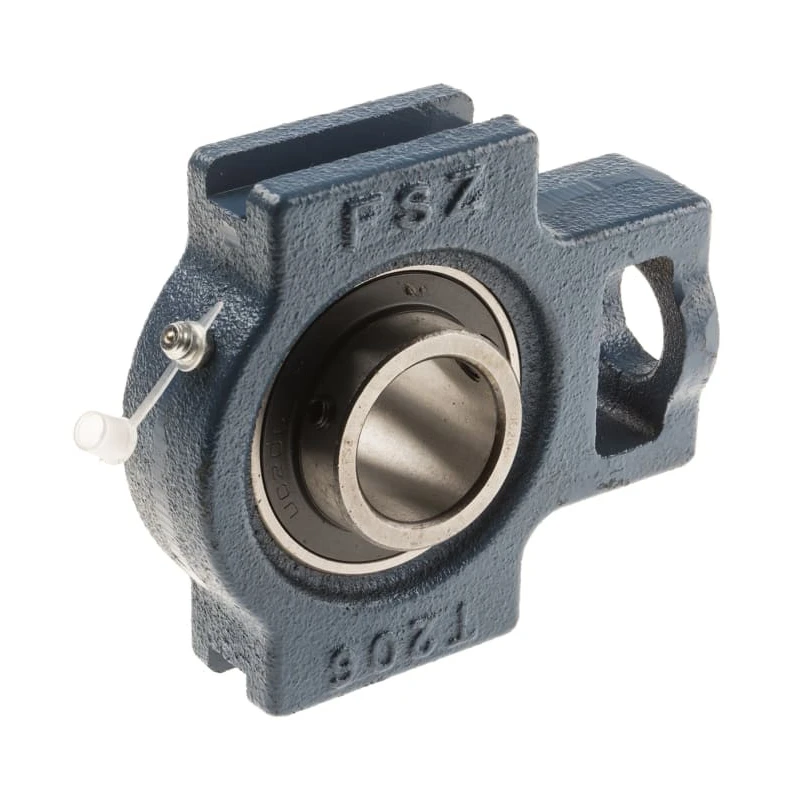

RS PRO Bearing Unit Ball Take-Up Unit Cast Iron Housing 30 mm ID UCT206

RS PRO UCT206 Bearing Unit is a ball bearing take-up unit featuring a robust cast iron housing and a 30 mm inside diameter. This unit is primarily used to take up slack and adjust tension in conveyor belt systems by means of a nut and bolt mechanism in the unit body slot.

The set screw locking type bearing ensures secure positioning, while the ball bearing supports rotational shaft applications with a static load rating of 11.4 kN and a limiting speed of 5000 rpm.

The housing dimensions of length 113 mm, width 102 mm, and depth 38.1 mm allow for compatibility in various conveyor and industrial equipment setups. Included grease nipples provide convenient lubrication points for prolonged service life.

These take-up units are commonly used in industrial machinery, agricultural equipment, food processing industries, and any system requiring precise belt or shaft tension adjustment. The cast iron housing adds strength and durability under operational stress.

The housing is constructed from cast iron for enhanced strength and longevity. Ball bearing type with a set screw locking mechanism provides secure locking. Static load rating of 11.4 kN makes it suitable for medium duty applications.

Supports speeds up to 5000 rpm for efficient functioning. Grease nipples included for easy lubrication and maintenance. Dimensions are 113 mm length, 102 mm width, and 38.1 mm depth for fitting in diverse machinery. Ideal for conveyor belts, agricultural equipment, and food processing industries.
