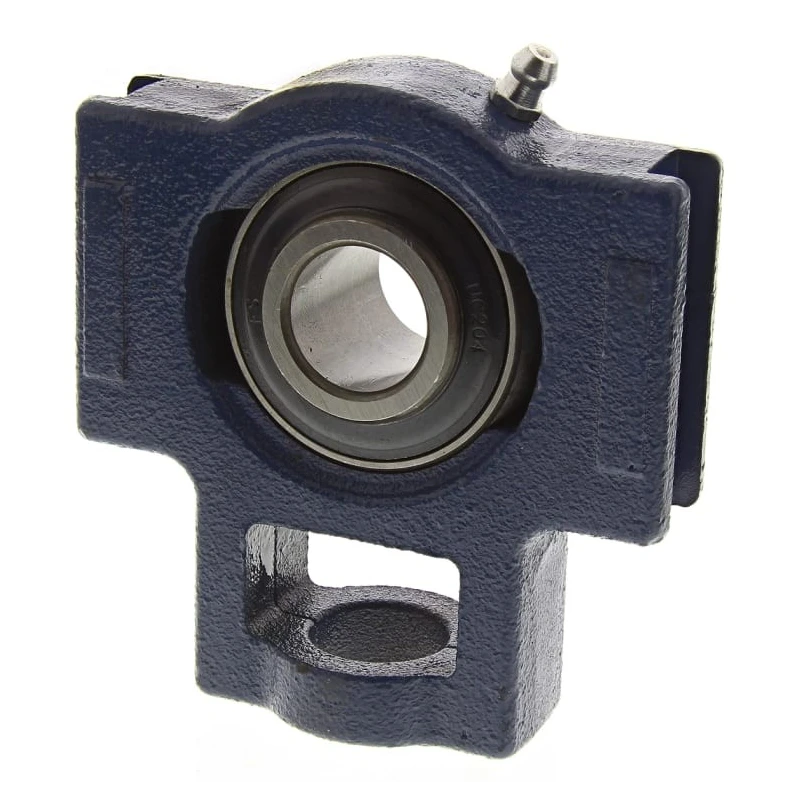

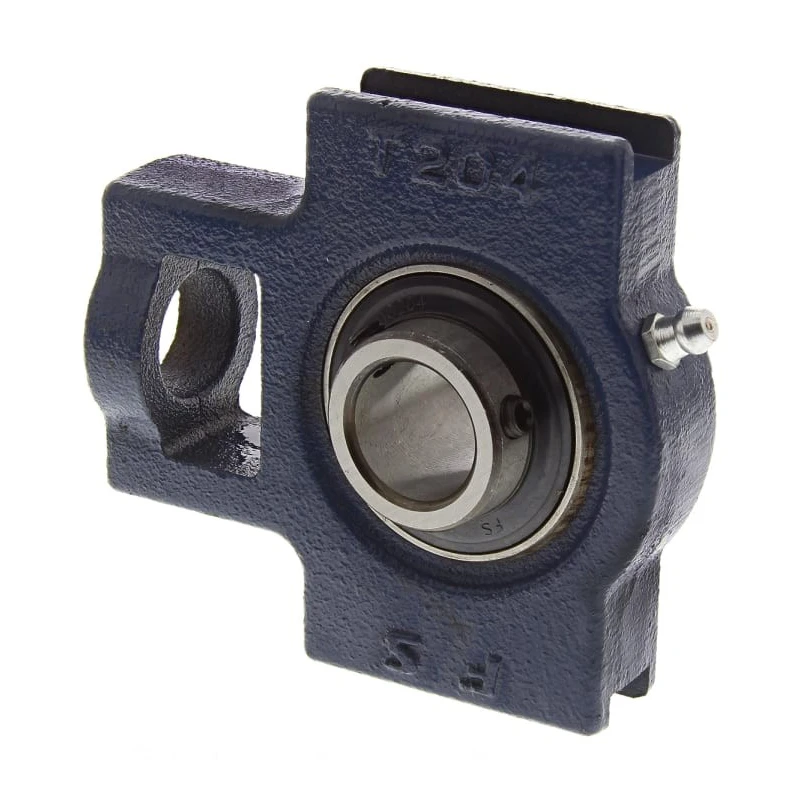

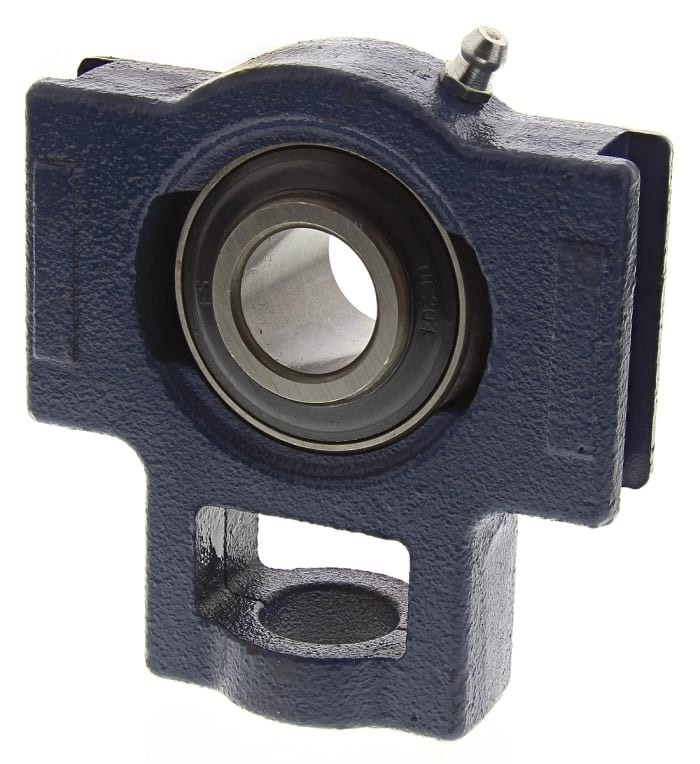

RS PRO Bearing Unit Ball Type Cast Iron Housing 20 mm ID 6.7kN Static Load 6500 rpm UCT204

RS PRO UCT204 Bearing Unit is a ball bearing housed in a robust cast iron body designed for normal duty take-up functions primarily in conveyor systems and other industrial equipment.

This model features a 20 mm inside diameter bearing with a set screw locking type securely fixing it to the shaft. The housing dimensions are 94 mm length, 89 mm width, and 31 mm depth, giving it a compact and sturdy form factor.

The bearing unit can withstand a static load rating of 6.7 kN and can operate at speeds up to 6500 rpm. It comes equipped with grease nipples to facilitate easy and regular lubrication ensuring long operating life and low maintenance.

Take-up units like the UCT204 model are often used in conveyor belt systems to take up slackness, enabling tension adjustment and smooth belt operation. Additionally, this unit is applicable in food processing plants and agricultural machinery where reliable shaft and belt tightening is necessary.

The bearing housing is made of cast iron for durability. Set screw locking mechanism for secure attachment. 20 mm inside diameter suitable for standard shafts. Static load rating of 6.7kN ensures operational robustness. Limiting speed of 6500 rpm supports high-speed applications.

Compact housing with length 94 mm, width 89 mm, depth 31 mm. Grease nipples provided for efficient lubrication.

This RS PRO bearing unit is an ideal solution for industrial and mechanical applications requiring precision bearing units with long service life. Explore more Bearing Units and components on EnvMart for your equipment needs.
