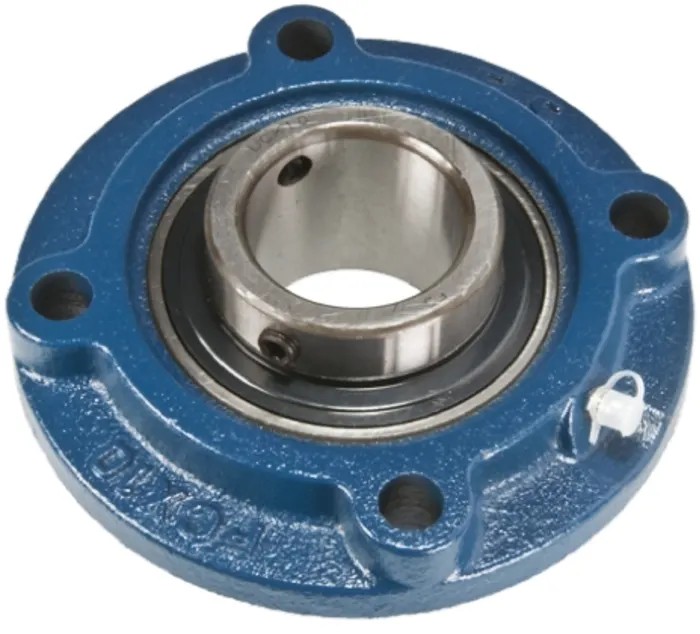

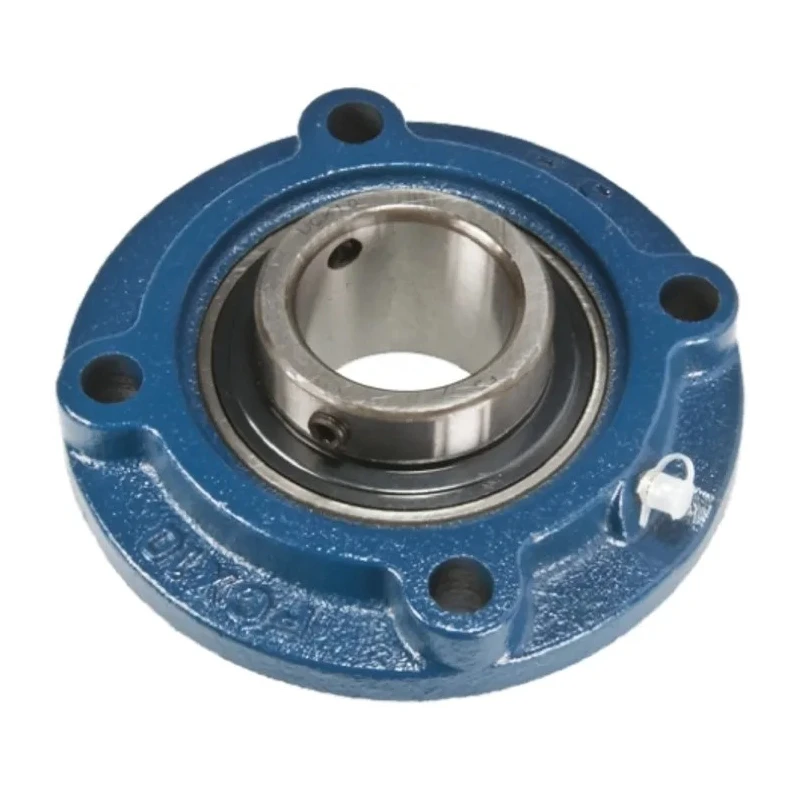

RS PRO 4 Hole Flange Bearing Unit 35 mm Inside Diameter Cast Iron UCFCX07
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Material | Cast Iron |
| Length | 133mm |
| Model | UCFCX07 |
| Depth | 39.2mm |
| Width | 39.2mm |
| Inside Diameter | 35mm |
| Bore Type | Flange |
| Mount Hole Size | 12 mm |
| Mount Hole Centre-to-Centre | 78.5mm |
| Number of Mount Holes | 4 |
| 4 Hole , MFC35, 35mm IDBrand | NSK-RHP |
Key Features
- Features a 4-hole mounting flange for secure installation.
- Contains a bore diameter of 35 mm suitable for various bearings.
- Constructed with durable cast iron for long service life.
- Includes mounting hole size of 12 mm and centre-to-centre hole distance of 78.5 mm.
- Overall dimensions are 133 mm length, 39.2 mm width, and 39.2 mm depth.
- Suitable for agricultural equipment and general industrial machinery.
- Can be installed as a flange cartridge or surface-mounted unit.
- Manufactured to medium duty specifications for enhanced performance.
Product Description
RS PRO UCFCX07 4 Hole Flange Bearing Unit is a medium duty flange cartridge bearing designed with a cast iron body and a 35 mm inside diameter. It features four mounting holes with a 12 mm size and 78.5 mm center-to-center spacing, allowing robust mounting options.
The flange bearing unit measures 133 mm in length, 39.2 mm in width, and 39.2 mm in depth, making it suitable for installation in various industrial and agricultural machinery. Its flange bore type facilitates ease of assembly and secure positioning in equipment housings.
This bearing unit is ideal for use in agricultural and construction plant equipment, conveyor systems, and packaging machinery. The medium duty design ensures reliability in heavier operating conditions where normal duty bearings may not suffice.
Built primarily from cast iron, the unit offers durability and resistance to wear in demanding environments. It does not have any formal standards or approvals listed but is widely applicable in mechanical power transmission and fluid power tools.
Features a 4-hole mounting flange for secure installation. Bore diameter of 35 mm suitable for various applications. Constructed with durable cast iron. Mount hole size of 12 mm with 78.5 mm centre-to-centre spacing. Overall compact dimensions: 133 mm length, 39.2 mm width, and 39.2 mm depth.
Suitable for agricultural and industrial equipment. Medium duty cartridge flange bearing for improved performance under load.
This RS PRO flange bearing unit is an essential component for mechanical, agricultural, and industrial machinery requiring dependable bearing housings. It is distributed from China and supplied new.
Explore more Bearing Units and flange cartridge bearings to suit your specific industrial needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inside diameter of this flange bearing unit is 35 mm.
It is constructed from durable cast iron, providing resistance to wear in demanding environments.
The overall dimensions of this model are 133 mm in length, 39.2 mm in width, and 39.2 mm in depth.
This bearing unit features four mounting holes for secure installation.
The size of the mounting holes is 12 mm.
The center-to-center distance of the mounting holes is 78.5 mm.
This bearing unit is suitable for agricultural equipment, construction plant equipment, conveyor systems, and packaging machinery.
It is manufactured to medium duty specifications, making it suitable for enhanced performance under heavier operating conditions.
Yes, it can be installed as a flange cartridge or surface-mounted unit, providing flexibility in installation options.
It has a flange bore type, which facilitates ease of assembly and secure positioning.
This product is manufactured in China.
The model number of this flange bearing unit is UCFCX07.
