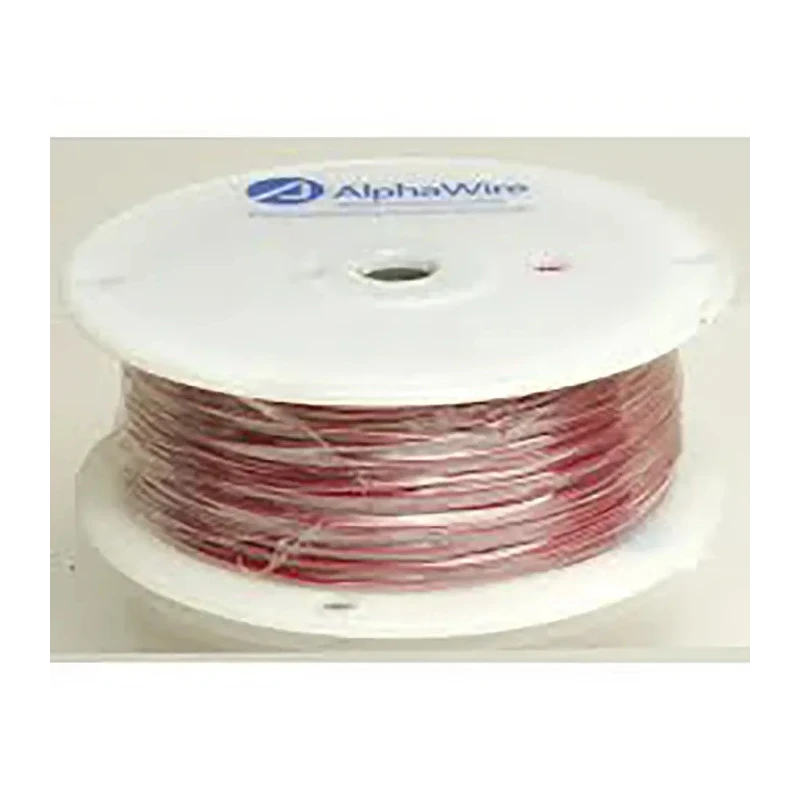

RS PRO Ecogen Ecowire Plus Series Red 0.52 mm² Hook Up Wire 20 AWG 7/0.32 mm Core Strands 30 m Modified 6824 RD005

Alpha Wire 6824 RD005 EcoWire Plus Series Red 0.52 mm² Hook Up Wire is engineered with modified polyphenylene ether (mPPE) insulation delivering superior fluid resistance and extended temperature performance from -40°C up to 110°C. Designed for demanding factory and industrial environments, this wire is suitable for applications in solar energy, transportation systems, wind power installations, and medical equipment.

The 20 American Wire Gauge (AWG) copper conductor consists of seven strands of 0.32 mm core diameter, providing excellent electrical conductivity and flexibility. Its red flame retardant jacket is low smoke and halogen free, meeting high safety standards such as CE, ISO 6722, RoHS, and REACH compliance. The wire's outside diameter measures 1.37 mm with an insulation thickness of 0.20 mm, making it lighter and tougher than conventional PVC insulated wiring.

EcoWire Plus offers a 30 meter length suitable for extended wiring runs, offering a reliable and recyclable alternative to XLPE insulated equipment wires. The insulation is made from non-halogenated materials containing no heavy metals, facilitating compliance with Waste Electrical and Electronic Equipment (WEEE) regulations.

This Hook Up Wire withstands exposure to oils, solvents, fuels, and other hazardous fluids, making it ideal for harsh industrial environments. Its flame retardant and low smoke halogen free properties enhance onsite safety and environmental compatibility.

Red jacket colour with 0.52 mm² cross sectional area. 7 strands of 0.32 mm diameter copper conductor for flexibility. Rated voltage of 300 V and operating temperature range from -40°C to 110°C. Complies with CE, ISO 6722, RoHS, and REACH standards.

Flame retardant with low smoke halogen free jacket construction. 30 meters length suited for various industrial wiring applications. Modified polyphenylene ether insulation improves dielectric strength and reduces wall thickness.

Suitable for solar, transportation, wind power, industrial, and medical uses. Explore a wider range of industrial wires and cables in the Wires & Cables category at EnvMart for premium quality and performance.
