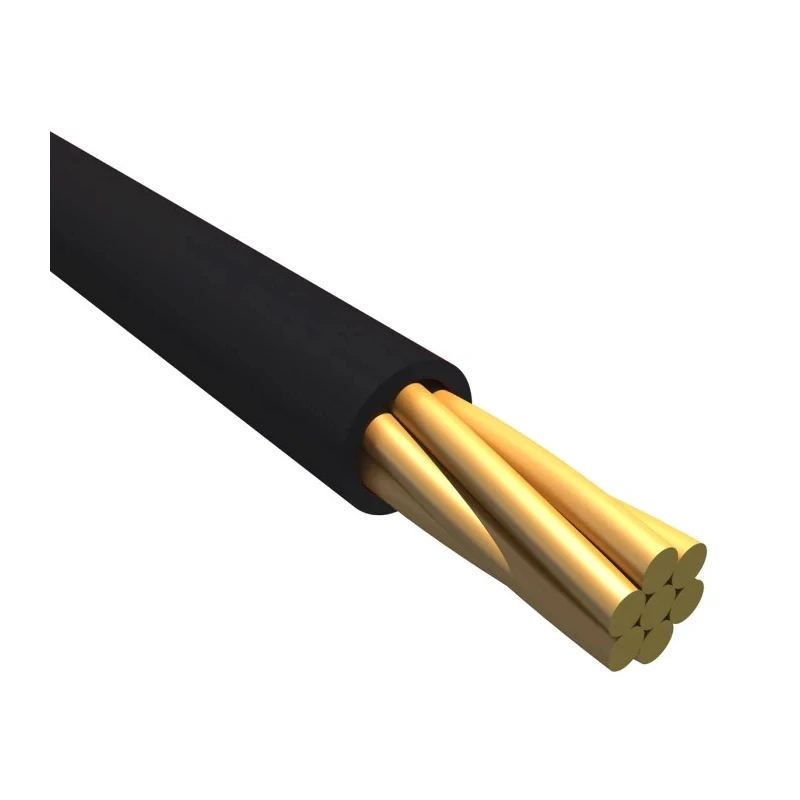

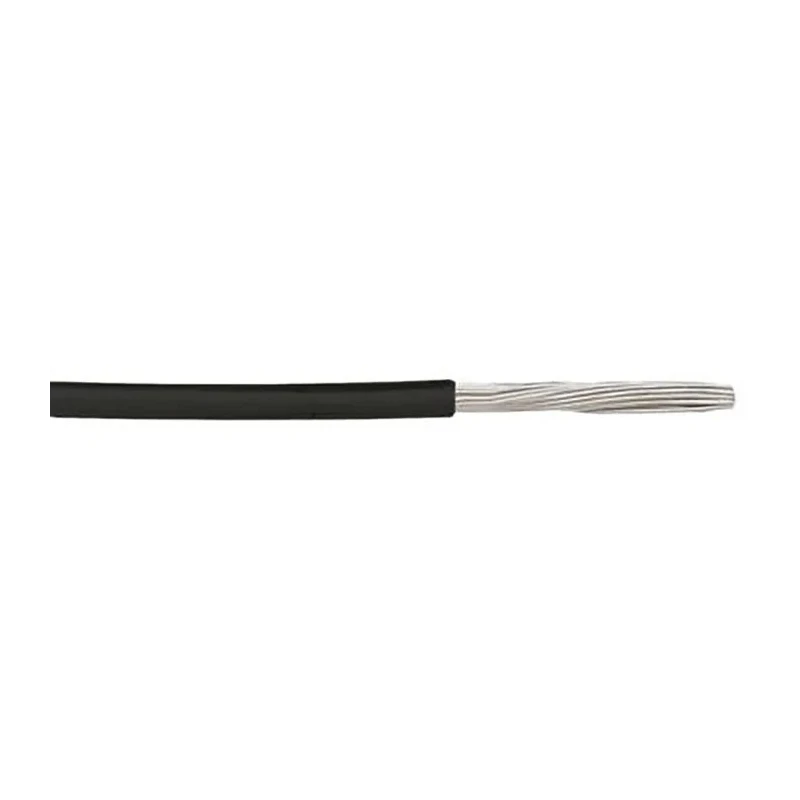

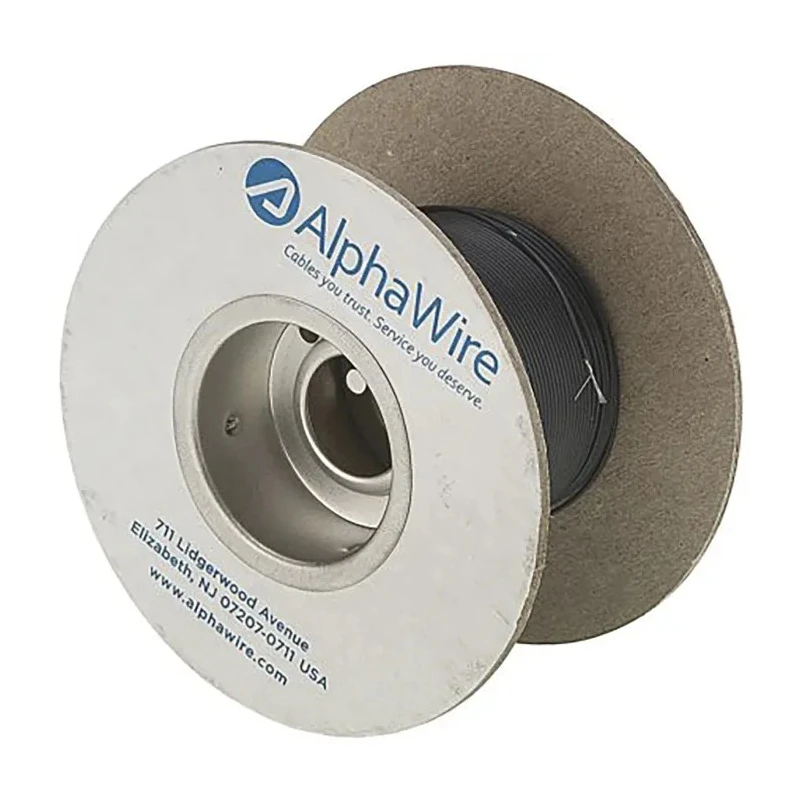

Alpha Wire Ecogen Ecowire Plus Series Black 0.2 mm² Hook Up Wire 24 AWG 7/0.20 mm Core Strands 30 m MPPE 6822 BK005

Alpha Wire 6822 BK005 is a high-quality Ecogen Ecowire Plus Hook Up Wire designed for industrial and demanding applications. It features a 0.2 mm² cross-sectional area with 24 AWG stranded copper conductors (7 strands of 0.20 mm diameter) insulated with advanced mPPE, providing superior dielectric strength and mechanical toughness compared to PVC and XLPE wires.

The wire is rated for continuous voltage of 300 V and can operate reliably in a temperature range from -40°C to 110°C, making it suitable for harsh environmental and industrial factory conditions. The insulation material is flame retardant, halogen free, and low smoke, ensuring safety and compliance with strict regulations.

The compact design includes an outside diameter of 1.02 mm and an insulation thickness of approximately 0.20 mm, enabling efficient wiring harness construction with reduced bulk. Its black colored jacket uses MPPE for excellent resistance against hazardous fluids, oils, solvents, and fuels.

Alpha Wire EcoWire Plus series is known for its environmentally responsible design that contains no hazardous substances and is fully recyclable. This product complies with RoHS, REACH, CE, and ISO 6722 standards, reinforcing its suitability for quality-conscious industrial customers.

Typical applications include industrial automation, renewable energy systems like solar and wind power, transportation, and medical device wiring where reliability, safety, and durability are paramount.

Manufactured with mPPE insulation providing lightweight and robust protection. Operating temperature suitable for extreme conditions from -40°C to +110°C. Seven stranded copper conductors offer flexibility and excellent current capacity.

Flame retardant, low smoke, and halogen free for enhanced fire safety. Complies with international standards including CE, RoHS, REACH, and ISO 6722. Wire diameter 1.02 mm and insulation thickness 0.20 mm for compact installations.

Eco-friendly design ensures full recyclability and compliance with environmental directives. Explore more in our Hook Up Wire section for industrial-grade wires with optimized performance from Alpha Wire and similar trusted brands.
