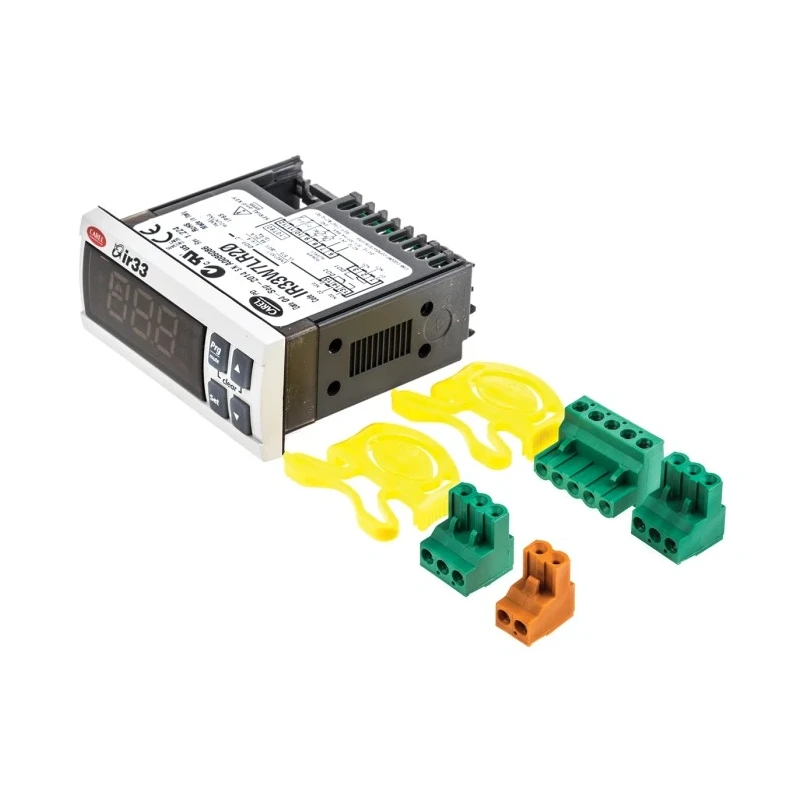

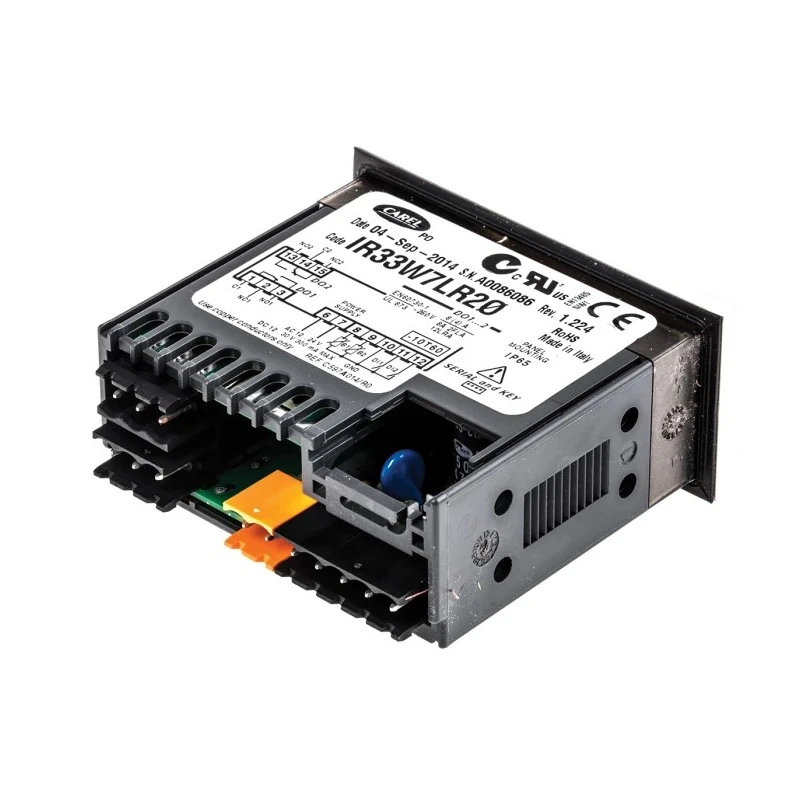

Carel Panel Mount PID Temperature Controller 2 Input, 2 Output Relay 230V IR33

Carel IR33 PID Temperature Controller IR33 model is a universal panel mount device engineered for precise temperature regulation and process control. Designed with 2 inputs and 2 relay outputs, it provides versatile control over heating and cooling loads in industrial environments. The IP65-rated enclosure ensures durability and protection against dust and water ingress, making it ideal for demanding applications.

This controller comes equipped with RS485 communication enabling network connectivity for system monitoring and remote programming, contributing to streamlined automation processes. The intuitive interface features a clear single line LED display and large control buttons, enhancing ease of operation and commissioning.

The IR33 series introduces auto tuning capabilities, utilizing rule-based algorithms to automatically optimize PID parameters either at set-point or during load changes, improving control accuracy and reducing manual setup complexity.

Compact dimensions of 76.2 mm length, 34.2 mm width, and a panel depth of 94 mm allow seamless integration into standard panel cutouts (71 x 29 mm). The controller operates on 230V supply voltage, supporting loads up to 8A relay outputs, with a maximum operating voltage of 250V, making it suitable across a wide range of industrial temperature control applications.

Standards compliance includes UL 873 and EN60730-1, ensuring adherence to international safety and performance requirements. This device is customizable with optional programming keys and remote control modules, facilitating efficient service and parameter configuration from a distance.

Equipped with 2 independent control inputs for precise temperature monitoring. Offers 2 relay outputs rated up to 8 amperes ensuring reliable load control. Panel mount design with IP65 rating for protection in demanding industrial environments.

Supports RS485 digital communication for network connectivity and programming. Auto tuning functionality enhances control accuracy and system efficiency. Single line, clear LED display with user-friendly large control buttons.

Compact dimensions of 76.2 mm length, 34.2 mm width, and 94 mm panel depth. Compatible with 230V maximum supply voltage and 250V maximum voltage rating. Meets UL 873 and EN60730-1 standards ensuring safety and compliance.

Suitable for automation, HVAC, process control, and industrial temperature regulation.

Ideal for use in industrial automation, HVAC systems, manufacturing process control, and laboratory environments requiring precise temperature regulation. The Carel IR33 controller represents a robust and versatile solution to modern temperature control challenges. Browse EnvMart for more advanced automation and control solutions from leading brands.
