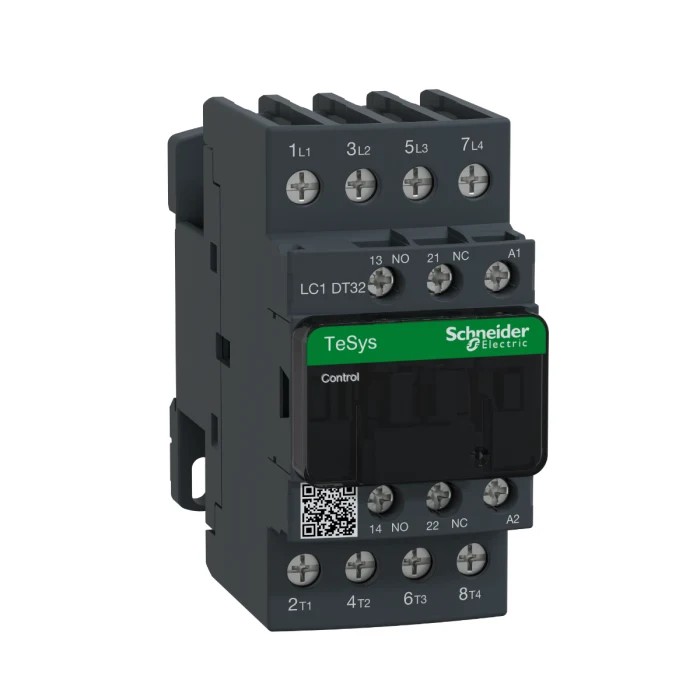

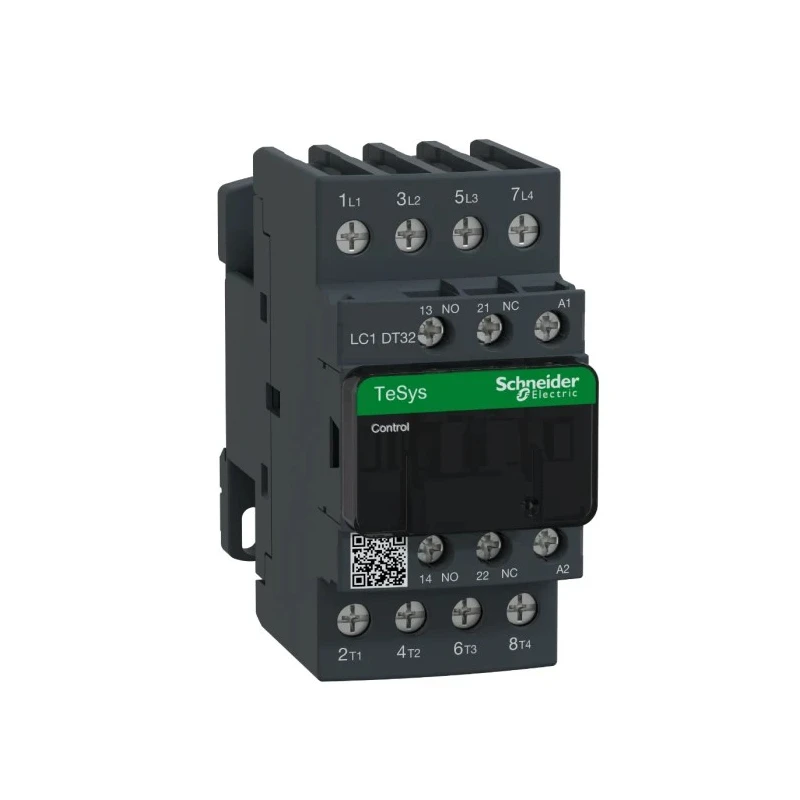

Schneider Electric LC1D Contactor 48V AC Coil 4-Pole 32A 4 NO 690V AC/DC LC1DT32E7

Schneider Electric LC1DT32E7 Contactor is a high-quality, reliable 4-pole contactor designed primarily for motor control and resistive loads under demanding industrial conditions. It operates with a 48V AC coil voltage, delivering consistent performance with a contact current rating of 32A and contact voltage of 690V AC/DC, making it suitable for switching a range of electrical loads.

The contactor features a compact and robust design with dimensions of 91 mm length, 45 mm width, and 99 mm depth, allowing for efficient integration into panel-mounted and DIN rail configurations. IP20 rated finger-safe screw terminals are provided for safe wiring and ease of maintenance. The device operates reliably in ambient temperatures ranging from -40°C to 60°C and has undergone certifications including CSA and UL for quality and safety assurance.

With 4 normally open main contacts and 2 auxiliary contacts (1 normally open), the contactor facilitates versatile control schemes in automation and control gear applications. Its construction emphasizes durability with high resistance to shock and vibration, ensuring longevity in industrial environments. The product is part of the Schneider Electric TeSys D contactor range known for long mechanical and electrical life cycles.

Applications include motor switching, resistive load management, and industrial automation systems across manufacturing, HVAC, water treatment, and commercial sectors. The product supports quick and simple setup with compatibility for various accessories such as auxiliary contact blocks, pneumatic time delay blocks, surge suppressors, and interface modules.

The LC1DT32E7 supports utilization categories AC-1 and AC-3, suitable respectively for resistive loads and squirrel cage motor control under operational breaking conditions. Designed for disassembly, this contactor aligns with Schneider Electric’s Better World initiative focusing on energy efficiency and sustainability.

This contactor features a 48V AC coil voltage for reliable coil operation. It has a 4-pole configuration with 4 normally open (NO) contacts. The contact voltage rating is 690V AC/DC with a contact current of 32A suitable for various industrial applications.

Designed for DIN rail mounting, it ensures simple installation and secure placement. The product supports a wide operating temperature range from -40°C to 60°C. IP20 finger-safe screw terminals provide enhanced safety during installation and maintenance.

Approved by CSA and UL standards ensuring compliance and quality assurance. The compact size with dimensions 91mm (length) x 45mm (width) x 99mm (depth) fits standard control panels. Includes 2 auxiliary contacts with 1 normally open configuration for extended functionality.

The component is designed for motor control and resistive load applications in industrial environments. Explore more Schneider Electric automation and control gear products on EnvMart for reliable industrial solutions.
