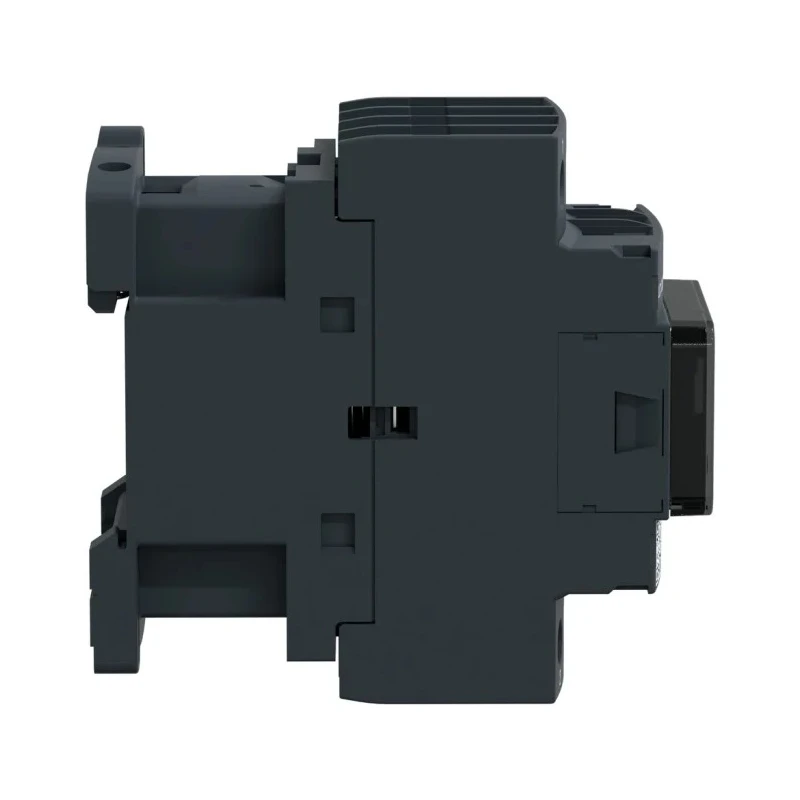

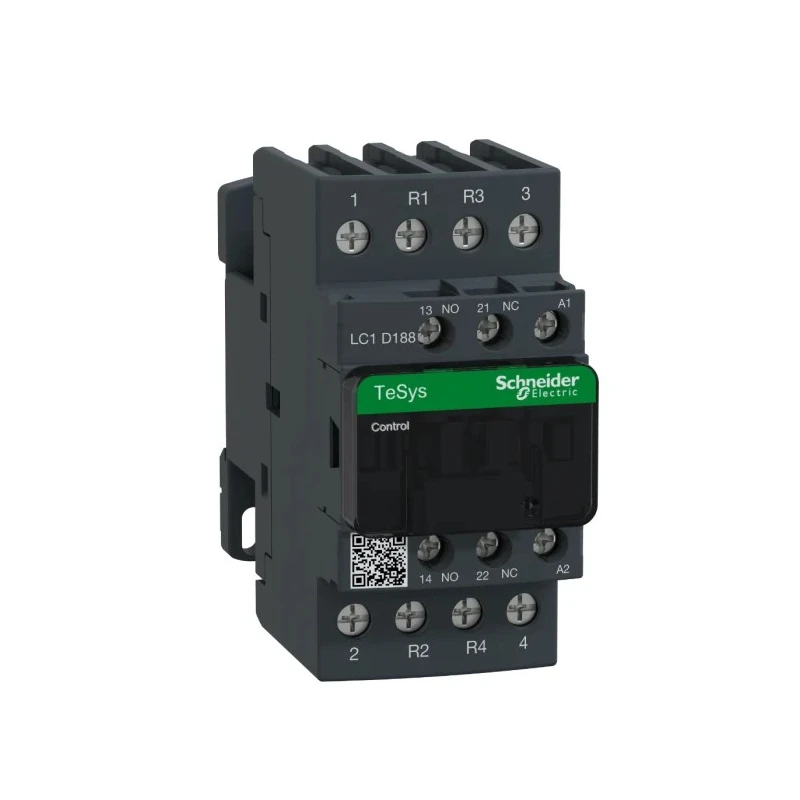

Schneider Electric LC1D Contactor, 230V AC Coil, 4-Pole, 32 A Contact Current, 2 NO/2 NC, 690V AC/DC LC1D188U7
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 105mm |
| Model | LC1D188U7 |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 230V ac |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 250A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Compact and durable design suitable for industrial motor starters.
- 2 normally open and 2 normally closed contacts provide flexible control options.
- DIN rail mounting with screw terminals for secure installation.
- Operational temperature range from -5°C to 60°C for wide environmental use.
- Certified to international standards including UL, CSA, IEC, CCC, EAC, and Marine ratings.
- High reliability for electrical and mechanical life with operational rates up to 3600 cycles/hour.
- Includes one built-in auxiliary contact (1 NO + 1 NC), with NC mirror certification.
- Power contacts rated for resistive loads up to 32A at 690V AC/DC.
Product Description
Schneider Electric LC1D188U7 is a high-quality TeSys D contactor designed for efficient motor control and non-inductive load applications up to 32A at 690V AC-1. This 4-pole device features a 230V AC coil and supports 2 normally open and 2 normally closed contacts, making it ideal for a broad range of industrial automation tasks.
Designed for durability and reliability, the LC1D188U7 operates within a temperature range of -5°C to 60°C and offers operational rates up to 3600 cycles per hour. Its compact 45 mm width and DIN rail mounting capability help save installation space while ensuring secure placement.
This contactor features screw clamp terminals for both load and auxiliary connections which comply with IP20 finger-safe requirements, enhancing user safety. The unit also includes one built-in auxiliary contact (1 NO + 1 NC) certified for mirror NC operations, improving control reliability.
Certified for compliance with multiple international standards including UL, CSA, IEC, CCC, EAC, and Marine standards, the LC1D188U7 is a Green Premium product fully compliant with RoHS and REACh directives, supporting better environmental practices in industrial automation.
Compact 4-pole contactor with 2 NO and 2 NC contacts. 230V AC coil suitable for standard industrial control circuits. Robust construction for high cycle endurance and reliability. Easy installation with DIN rail and panel mounting options.
Suitable for motor starters and resistive load control.
Applications include industrial motor controls, HVAC systems, manufacturing automation, water treatment facilities, and other electrical automation environments requiring reliable switching of moderate current loads.
Choose Schneider Electric LC1D188U7 contactor to ensure durable, reliable, and environmentally responsible motor control solutions. Explore other automation and control gear products from Schneider Electric on EnvMart.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D188U7 has a contact current rating of 32A.
This model operates with a coil voltage of 230V AC.
The maximum contact voltage for this contactor is 690V AC/DC.
This contactor features 4 poles.
The operational temperature range is from -5°C to 60°C.
It is designed for DIN rail mounting.
The LC1D188U7 includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
This model is certified to UL and CSA standards.
It is suitable for motor control and non-inductive load applications up to 32A.
The dimensions are 105mm in length, 99mm in depth, and 45mm in width.
This contactor can operate at rates up to 3600 cycles per hour.
It features screw clamp terminals that comply with IP20 finger-safe requirements.
