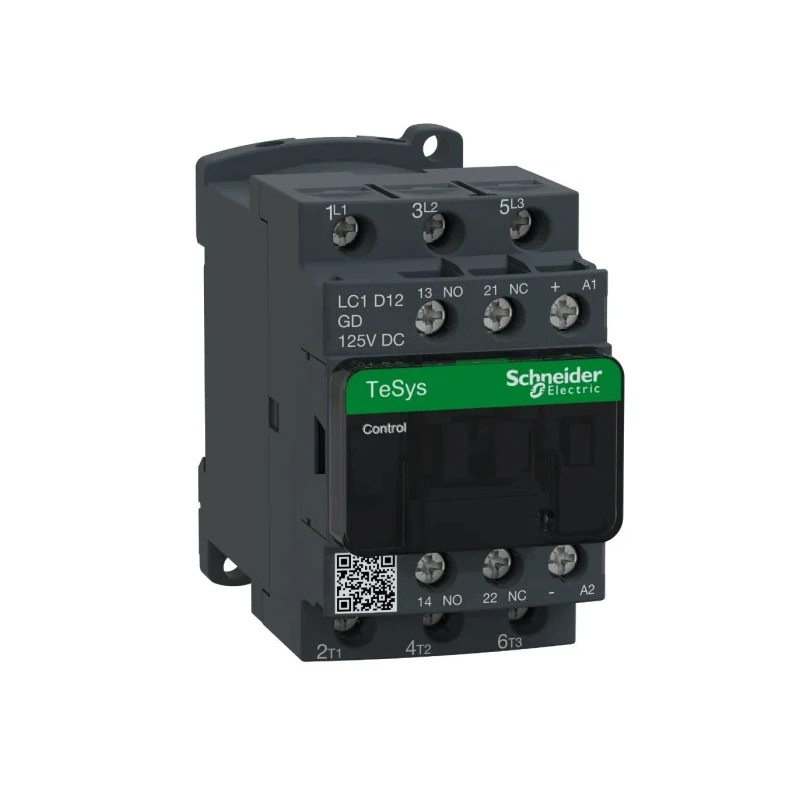

Schneider Electric LC1D Contactor, 110V DC Coil, 3-Pole, 12 A, 7.5 kW 125V Control, 3 NO Contacts, 690V AC LC1D12GD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D12GD |
| Depth | 95mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 120A |
| Control Circuit Voltage Uc | 125V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for use with motor control and resistive load applications.
- Features three normally open (3 NO) contact poles for efficient switching.
- Includes 1 NO and 1 NC auxiliary contact for versatile control options.
- Supports control circuit voltage of 125V and contact voltage up to 690V AC.
- Equipped with screw terminal type for secure connections.
- Suitable for industrial environments with a wide operating temperature range from -40°C to 60°C.
- Mounts easily on DIN rail frameworks for convenient installation.
- Complies with CSA and UL standards ensuring safety and quality.
Product Description
Schneider Electric LC1D12GD Contactor is a robust industrial electrical component designed for controlling motors and resistive loads in automation and control systems. It operates with a 110V DC coil and supports a 3-pole configuration with a contact current rating of 12 A, making it suitable for various industrial motor control applications.
The device features three normally open contacts (3 NO) and two auxiliary contacts (1 NO and 1 NC), providing flexible control circuit integration. It supports a control circuit voltage of 125V and can handle contact voltages up to 690V AC, catering to demanding operational environments.
This contactor is engineered to function reliably between -40°C and 60°C temperatures and mounts directly onto DIN rails for ease of installation. Its screw terminal type ensures secure and reliable electrical connections. Meeting CSA and UL standards, it guarantees compliance with recognized safety and performance certifications.
The compact dimensions of 77mm length, 45mm width, and 95mm depth allow integration in various control panels and automation setups. Schneider Electric’s LC1D series is known for long mechanical and electrical life cycles, providing durable solutions for industrial automation.
Designed for motor control and resistive load switching. Highly reliable with long electrical and mechanical life. Quick and simple setup with DIN rail mounting compatibility. Supports auxiliary contacts for additional control flexibility.
Built-in coil suppression mechanism enhances operation stability. Suitable for applications including lifts, escalators, conveyors, compressors, and pumps. Compliant with international standards and quality certifications.
Part of Schneider Electric’s sustainable Better World product line designed for disassembly.
This Schneider Electric contactor is ideal for industrial, manufacturing, HVAC, and automation applications requiring reliable motor control and load switching. For further product selection and related automation gear, explore EnvMart’s extensive Schneider Electric catalog.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 110V DC.
This contactor has a contact current rating of 12 A.
It can handle contact voltages up to 690V AC.
The power rating of this contactor is 7.5 kW.
This model features a 3-pole configuration.
The dimensions are 77 mm in length, 45 mm in width, and 95 mm in depth.
It operates within a temperature range of -40°C to 60°C.
This contactor mounts easily on DIN rails.
It is equipped with screw terminal type connections for secure wiring.
It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact.
This contactor complies with CSA and UL standards, ensuring safety and quality.
It is designed for motor control and resistive load applications, such as lifts, escalators, and conveyors.
