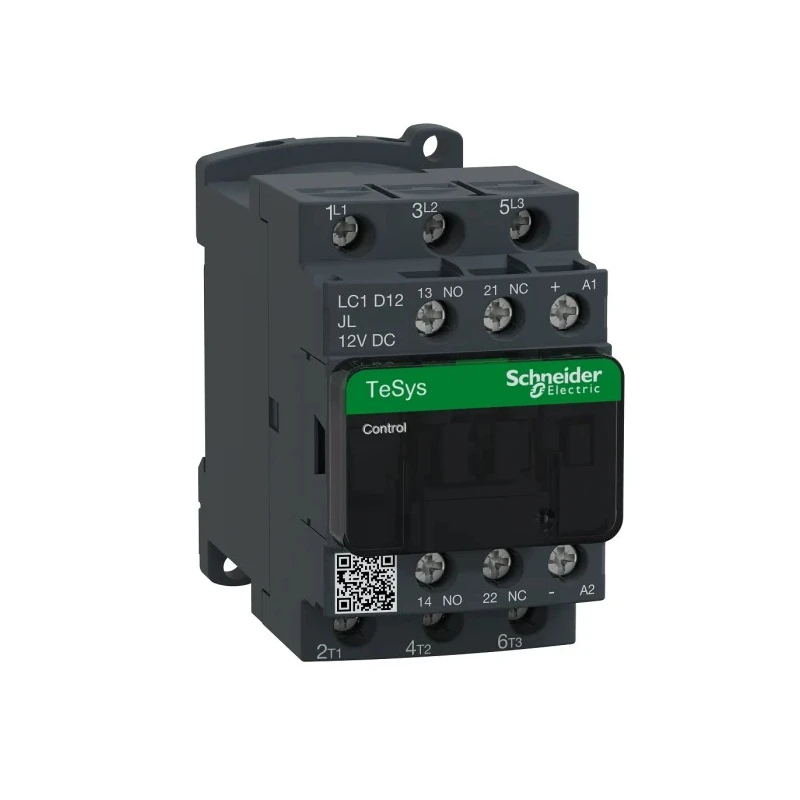

Schneider Electric LC1D Contactor, 12V DC Coil, 3-Pole, 12A, 0.5 HP 690V AC, 3 NO, 12V DC Coil LC1D12JL

Schneider Electric LC1D12JL Contactor is a premium motor control device with a 12V DC coil, featuring a 3-pole configuration and 12A contact current, rated for 0.5 HP at 690V AC. It is ideally suited for industrial and commercial motor control applications, providing high reliability and durability in diverse environments.

This contactor integrates a low-consumption 12V DC coil with a transient suppressor module that protects the coil from voltage spikes, enhancing longevity. The device includes three normally open (NO) main contacts and built-in auxiliary contacts configured as 1 NO and 1 NC, with the normally closed contact mirror certified for safety and compliance.

Designed for compact installation, it features a DIN rail mount and screw clamp terminals for secure and efficient wiring. It supports operational ambient temperatures from -40°C up to 60°C, ensuring performance in harsh conditions. Mechanical and electrical endurance allow it to operate reliably up to 3600 cycles per hour.

The contactor complies with multiple international standards including IEC, UL, CSA, CCC, EAC, and Marine certifications, and meets environmental standards such as RoHS and REACh as a Green Premium product. Its dimensions are 77mm length, 45mm width, and 95mm depth, weighing approximately 0.49 kg (1.07 lbs), suitable for compact control panels.

Typical applications include motor starters for a wide range of industrial equipment such as compressors, pumps, conveyors, and HVAC systems. Its robust performance makes it suitable for resistive loads and motor control in factories, manufacturing plants, and commercial buildings.

The product is designed for easy accessory integration and simple installation, making it a versatile component in automation and control systems. Its reliability and compliance with global certifications provide confidence in critical industrial processes.

Features a 12V DC coil with transient suppressor module for coil protection. Three poles with 3 NO contacts for robust current handling. Supports motor control up to 12A, suitable for various industrial uses. Compact DIN rail mount design with screw clamp terminals for easy installation.

Operates reliably within -40°C to 60°C temperature range. Includes built-in auxiliary contacts with 1 NO and 1 NC configuration, with the NC contact mirror certified. Compliant with multiple international standards including IEC, UL, CSA, CCC, EAC, and Marine certifications.

Green Premium compliant and RoHS/REACh certified ensuring sustainable and eco-friendly design. Contactor dimensions approximately 77mm length, 45mm width, and 95mm depth. Designed for durability and high operating rates up to 3600 cycles/hour.
