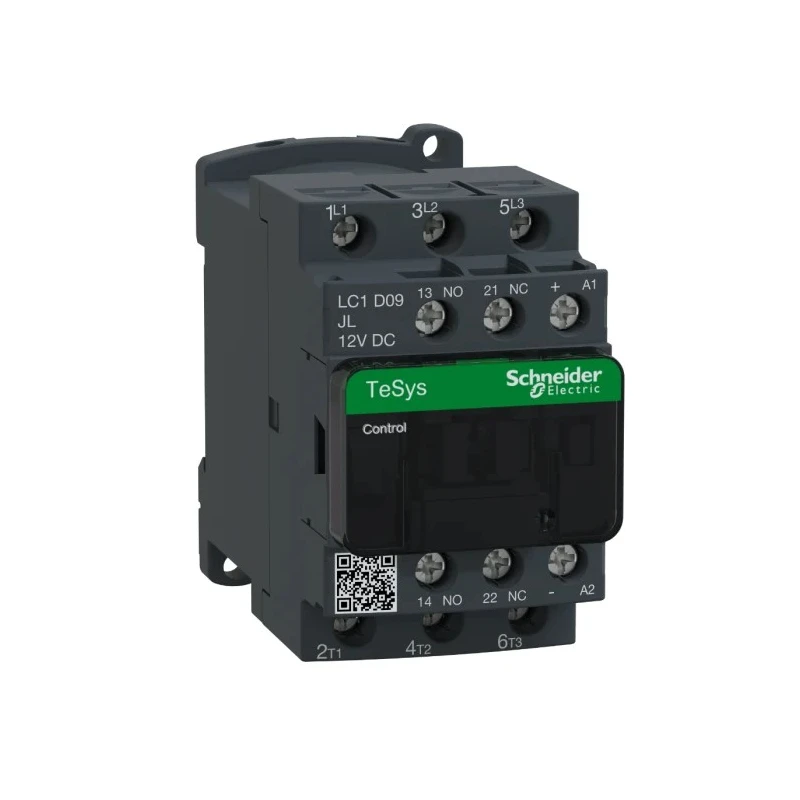

Schneider Electric TeSys D Contactor, 3-Pole, 9 A, 2.2 kW, 12V DC Coil, 690V AC/DC LC1D09JL
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D09JL |
| Depth | 95mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 2.2kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | IEC 61095 |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 12V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 12V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Features a low consumption 12V DC coil with transient suppressor module.
- Includes 3 normally open (NO) contacts and 2 auxiliary contacts (1 NO and 1 NC).
- Rated for contact voltages up to 690V AC/DC and operational current of 9A.
- Compact design with DIN rail mounting and screw clamp terminals for easy installation.
- Operates reliably at temperatures ranging from -40°C to 60°C.
- Suitable for motor control applications up to 20HP at 200-208VAC and 60HP at 480-600VAC three-phase.
- Compliant with IEC standards and RoHS/REACh, making it a Green Premium product.
- Multiple certifications including UL, CSA, CCC, EAC, and Marine standards.
Product Description
Schneider Electric LC1D09JL TeSys D contactor is a 3-pole, 9-amp device equipped with a 12V DC coil, engineered for motor control and resistive load applications. This compact and robust contactor supports power ratings up to 2.2 kW at 12V DC and contact voltages up to 690V AC/DC, ensuring high performance and durability for diverse industrial automation needs.
The device features a low power consumption coil with a built-in transient suppressor for enhanced electrical protection. It includes three normally open contacts and two auxiliary contacts (one normally open and one normally closed) with the NC contact mirror certified for reliable auxiliary circuit integration.
Designed for DIN rail mounting and screw clamp terminals, installation is quick and secure. The contactor is certified to IEC standards and meets multiple international certifications including UL, CSA, CCC, EAC, and Marine, ensuring compliance with global industry requirements. Operating temperature ranges from -40°C to 60°C, making it suitable for varied environmental conditions.
This contactor can handle motor control applications with ratings of up to 20HP at 200-208VAC and up to 60HP at 480-600VAC in three-phase power systems. When combined with appropriate circuit breakers or fuses, the device offers high short-circuit current ratings (SCCR) for safety and reliability.
The product is marked as a Green Premium device due to its compliance with RoHS and REACh standards, reflecting Schneider Electric's commitment to sustainable and environmentally friendly solutions.
Low consumption 12V DC coil with transient suppressor. Three normally open contacts and two auxiliary contacts (1 NO/1 NC) with certified NC contact. Rated for 9A current and 690V AC/DC contact voltage. Compact 45mm width housing suitable for DIN rail mounting.
Wide operating temperature range from -40°C to 60°C. Complies with IEC 61095 and multiple international certifications. Green Premium compliance ensures environmentally responsible manufacturing. Screw clamp terminals for load and auxiliary connections.
This Schneider Electric LC1D09JL contactor is ideal for industrial, commercial, and manufacturing automation, providing reliable motor control, integration flexibility, and adherence to global safety standards. It is a proven solution for protecting and controlling electric motors, resistive loads, and related electrical equipment.
Explore more products from Schneider Electric and advanced Contactors on EnvMart for your automation and electrical control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 2.2 kW.
It is rated for contact voltages up to 690V AC/DC.
The rated operational current is 9A.
It features a low consumption 12V DC coil with a transient suppressor module.
This contactor has 3 poles.
The dimensions are 77mm in length, 95mm in depth, and 45mm in width.
It operates reliably at temperatures ranging from -40°C to 60°C.
It is designed for DIN rail mounting.
This contactor includes two auxiliary contacts, one normally open and one normally closed.
It is suitable for motor control and resistive load applications.
It is compliant with IEC standards and has multiple certifications including UL, CSA, CCC, EAC, and Marine standards.
The normal state configuration includes three normally open contacts.
