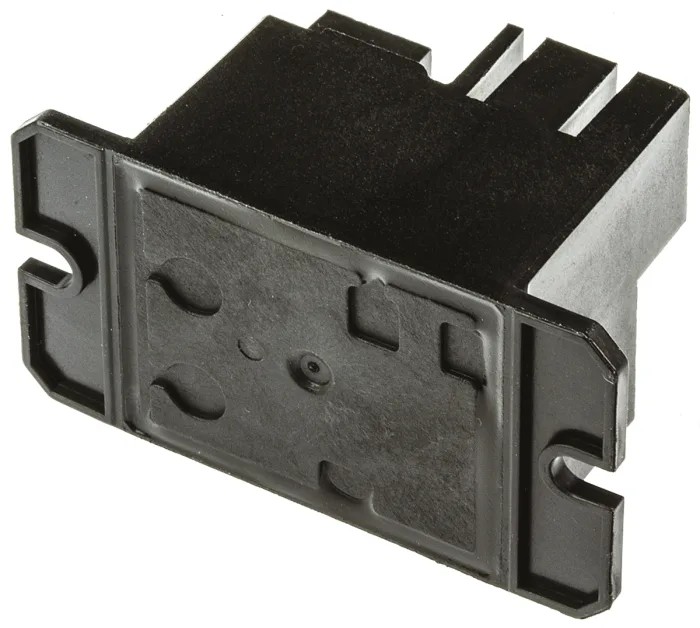

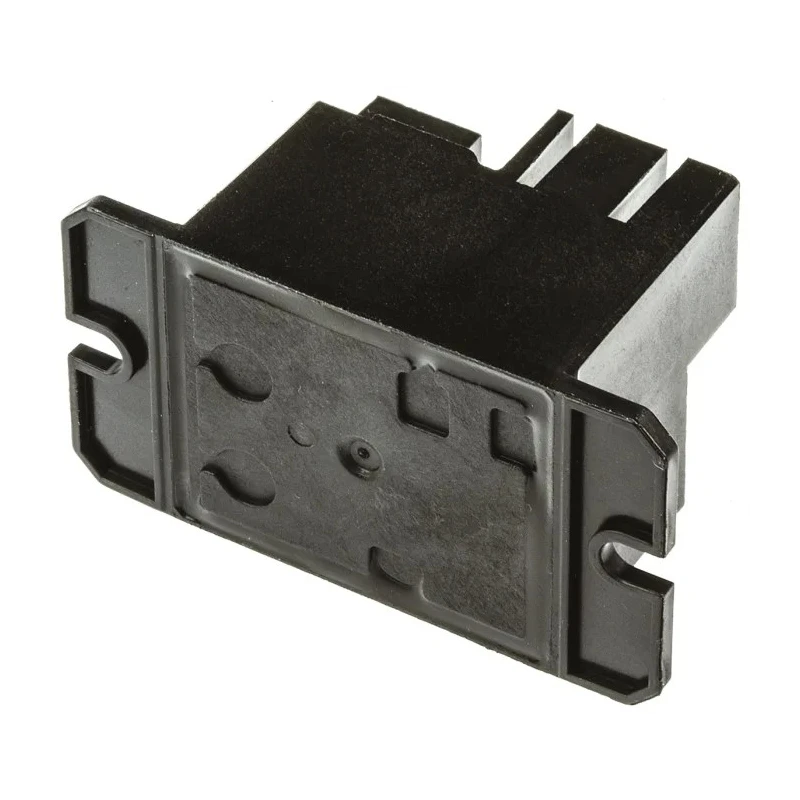

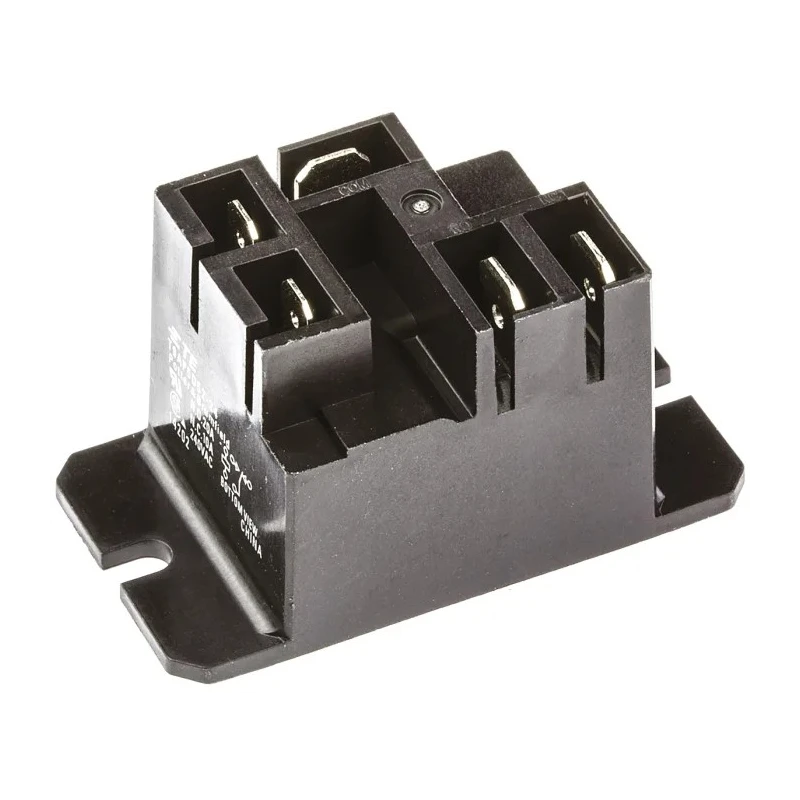

TE Connectivity Flange Power Relay 24V DC Coil 20A Switching Current SPDT T9AP5D52-24 5-1419102-2
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -55°C to +85°C |

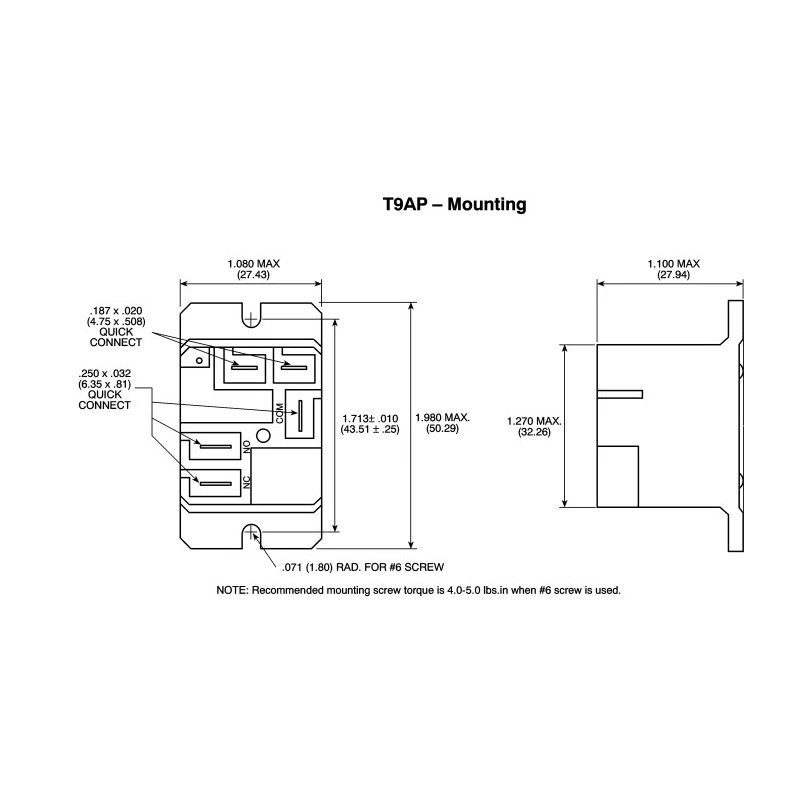

| Dimensions | H27.94mm, W27.43mm, D50.29mm |
| Height | 27.9mm |
| Length | 50.3mm |
| Model | T9AP5D52-24 5-1419102-2 |
| Width | 27.4mm |
| Mount Type | Flange |
| Contact Material | Silver Alloy |
| Series | T9A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -55°C |
| Switching Current | 20A |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| Coil Resistance | 576Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 600V ac |
| Coil Power | 1.7W |
Key Features
- Features a flange mounting type for secure installation.
- Contact material is silver alloy ensuring reliable conductivity.
- Operates within a temperature range of -55°C to +85°C.
- Coil power consumption is 1.7 watts with coil resistance of 576 ohms.
- Switching AC voltage rated up to 600V AC.
- UL recognized and CSA certified ensuring industrial safety compliance.
- Quick connect terminal type for fast and easy wiring.
Product Description
TE Connectivity T9AP5D52-24 5-1419102-2 flange power relay is designed for industrial and automation applications requiring reliable switching performance. The relay features a 24V DC coil voltage and a single pole double throw (SPDT) contact configuration capable of switching currents up to 20A. Its robust flange mounting offers secure installation suitable for control panels and machinery.
Constructed with silver alloy contacts, this relay provides excellent electrical conductivity and durability. It supports a wide operating temperature of -55°C to +85°C, making it suitable for harsh environments. The coil resistance is 576 ohms with a coil power consumption of just 1.7 watts, enabling efficient operation.
The relay complies with RoHS standards and is UL recognized and CSA certified, ensuring safety and quality in demanding industrial contexts. Its compact dimensions of approximately 27.9mm height, 27.4mm width, and 50.3mm length save panel space. Quick connect terminals facilitate easy and secure wiring during installation.
This flange power relay is ideal for use in electrical automation systems, industrial machinery, HVAC controls, and other applications requiring dependable power switching. Its design supports immersion washability in specific T9AS types, enhancing maintenance ease.
Country of origin is China. The product is part of the TE Connectivity T9A series, known for reliability and compliance with industry spacing standards including UL873 and UL508 with 1/8 inch air clearance and 1/4 inch over surface clearance.
Flange mounting provides secure and stable installation. Silver alloy contacts ensure long-lasting electrical performance. Wide operating temperature range suitable for various industrial environments. Compliant with RoHS, UL recognized, and CSA certified for safety.
Compact size maximizes panel space efficiency. Quick connect terminals simplify wiring and maintenance. 1.7W coil power with 576 ohm coil resistance for energy efficiency. Suitable for automation, industrial control, and HVAC applications.
Explore the full range of TE Connectivity Power Relays and electrical components on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
This model can switch currents up to 20A.
The dimensions are approximately 27.9mm in height, 27.4mm in width, and 50.3mm in length.
It operates within a temperature range of -55°C to +85°C.
This relay features a single pole double throw (SPDT) contact configuration.
The coil resistance is 576 ohms.
It uses quick connect terminals for fast and easy wiring.
Yes, it is UL recognized and CSA certified, ensuring compliance with safety standards.
The coil power consumption is 1.7 watts.
The contacts are made of silver alloy, ensuring reliable conductivity.
This relay is suitable for electrical automation systems, industrial machinery, and HVAC controls.
The country of origin for this relay is China.
