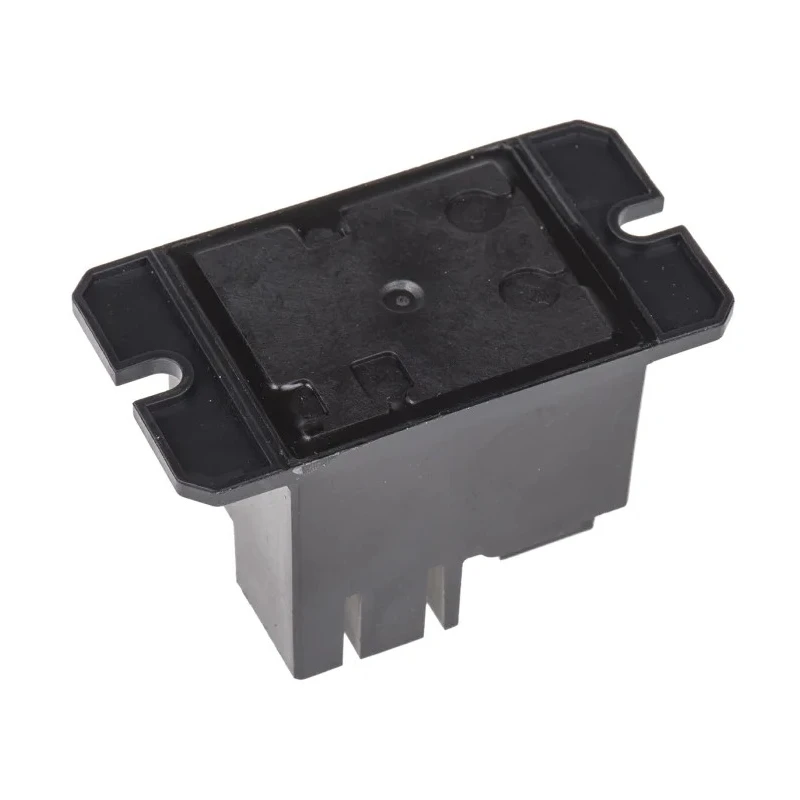

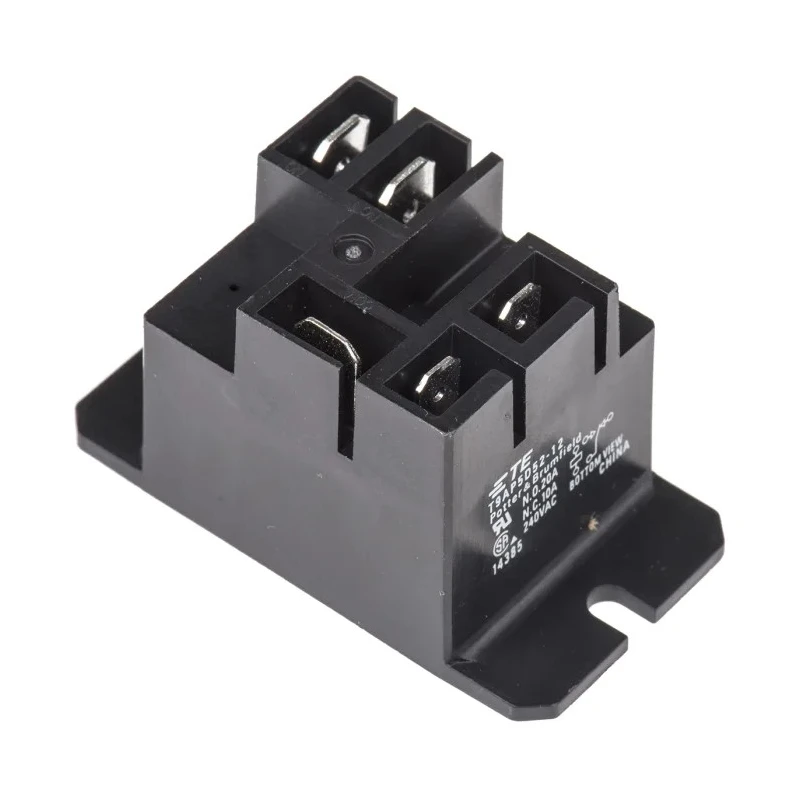

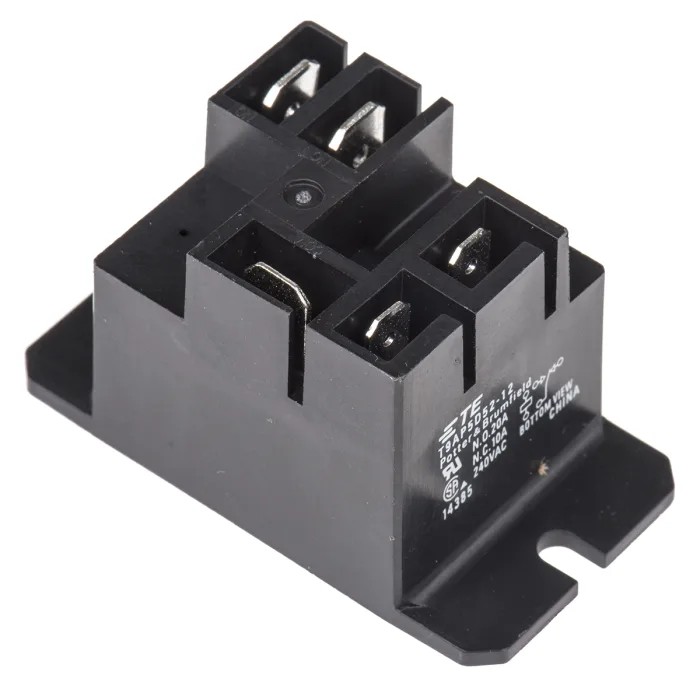

TE Connectivity Flange Power Relay 12V dc Coil 20A Switching Current SPDT T9AP5D52-12 5-1419102-4

TE Connectivity T9AP5D52-12 5-1419102-4 flange power relay is designed for industrial and automation applications requiring reliable switching of electrical loads. Featuring a single-pole double-throw (SPDT) contact configuration, this relay operates with a 12V DC coil voltage and can switch currents up to 20A effectively.

Its flange mount design supports secure and stable installation, making it suitable for control panels and equipment assemblies. The relay is equipped with quick-connect terminals facilitating rapid wiring and maintenance.

The coil resistance of 144 ohms and a coil power consumption of just 1 watt make it energy efficient. It functions efficiently in a broad temperature range from -55°C up to 85°C, allowing use in harsh environments.

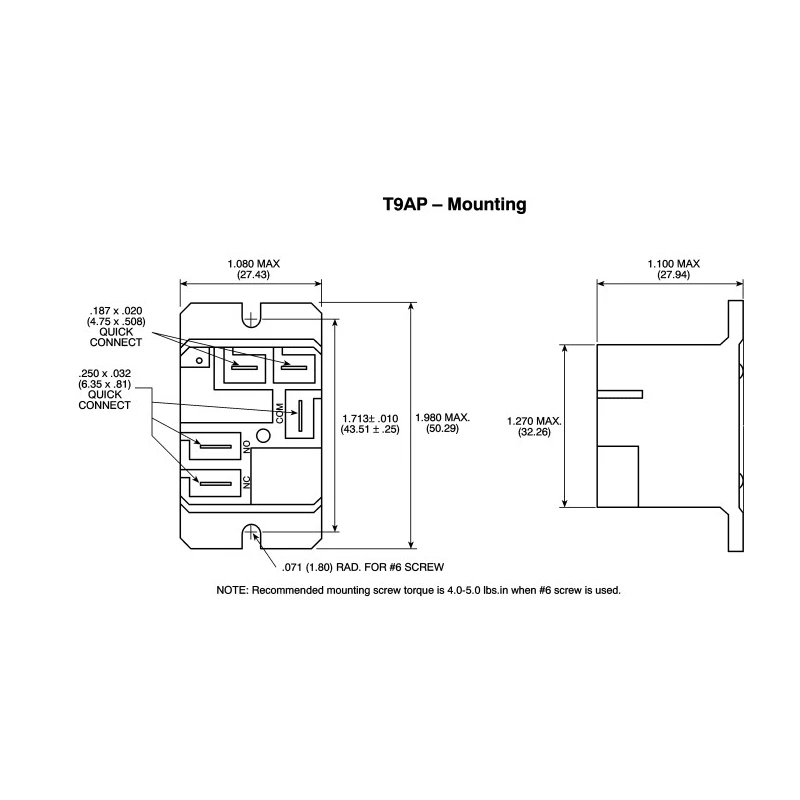

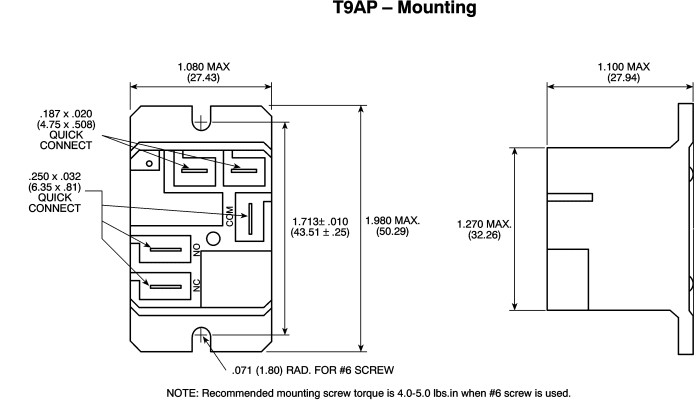

Compact physical size with dimensions approximately 27.9mm height, 27.4mm width, and 50.3mm length enables easy fitment in space-constrained setups. The silver cadmium oxide contact material ensures high conductivity and long operational life, supporting switching AC voltages up to 400V.

Compliant with multiple international standards and approvals including CSA, EN, IEC, REACH, RoHS, UL, and VDE, this relay guarantees quality and safety for demanding electrical applications.

Flange mount type for secure installation. Quick connect terminals. Coil resistance: 144 Ω, coil power: 1 W. Operating temperature range: -55°C to 85°C. Dimensions: height 27.9mm, width 27.4mm, length 50.3mm. Contact material silver cadmium oxide (AgCdO).

Switching AC voltage up to 400V. Certified to CSA, EN, IEC, REACH, RoHS, UL, and VDE standards.

This power relay is ideal for use in electrical automation, control panels, industrial machinery, HVAC systems, manufacturing equipment, and other commercial electrical applications. Browse EnvMart's Power Relay category for quality TE Connectivity products and trusted partners.
