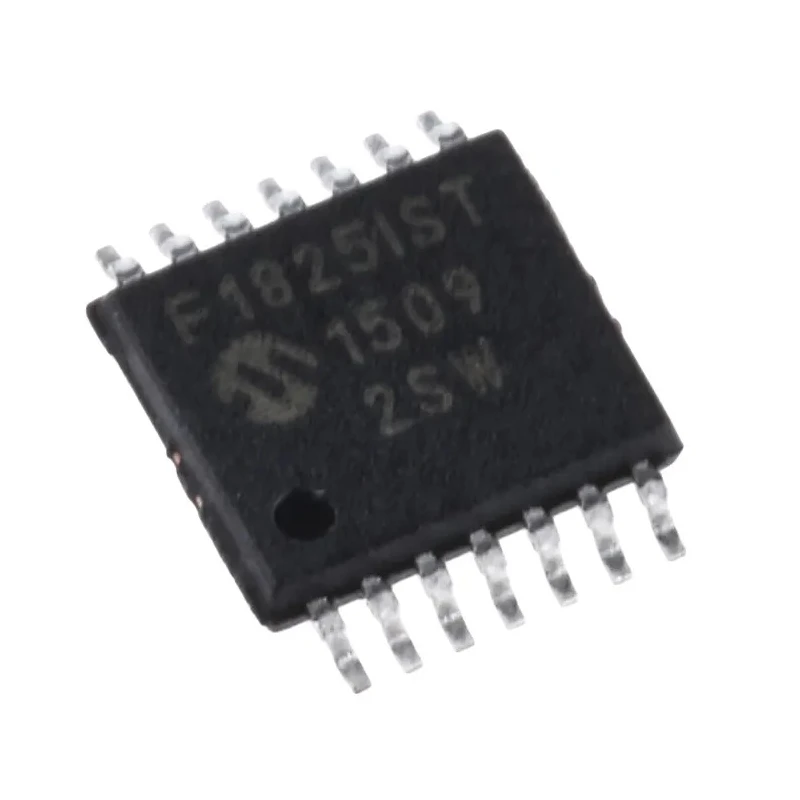

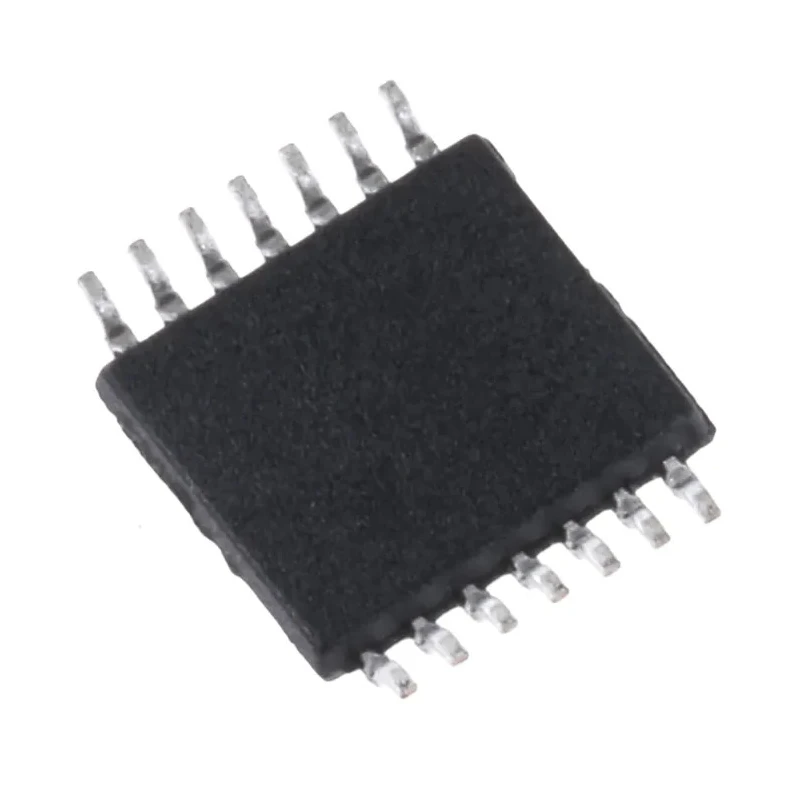

Microchip 8-bit PIC Microcontroller, PIC16F Series, 14kB FLASH, 32 MHz, 14-Pin TSSOP PIC16F1825-I/ST

Microchip PIC16F1825-I/ST is an 8-bit microcontroller from the PIC16F series, clocked at 32 MHz with 14kB FLASH memory and 1.014kB RAM. It is housed in a compact 14-pin TSSOP package optimized for surface mount applications, offering a balance between size and functionality for embedded system designs.

Designed with an enhanced mid-range PIC architecture featuring a 16-level hardware stack and RISC instruction set, the PIC16F1825/1829 family provides up to 8 MIPS processing speed. This MCU includes analog and digital peripherals such as an 8-channel 10-bit analog-to-digital converter, mTouch capacitive sensor functionality, and various capture/compare/PWM modules.

The device offers 12 programmable I/O pins, two analog comparators, and a variety of timers (four 8-bit and one 16-bit) which facilitate precise timing and control capabilities. It supports communication protocols including SPI, I2C, and UART through the MSSP and EUSART modules, enabling versatile connectivity options for industrial, automotive, consumer electronics, and automation applications.

Operational reliability is ensured with integrated features such as Power-On Reset, Brown-Out Reset, Extended Watchdog Timer, and enhanced low-voltage programming. The device is rated for a broad operating temperature range from -40°C to 85°C, making it suitable for rigorous environmental conditions.

The microcontroller is widely used in embedded design projects requiring efficient processing, low power consumption, and a compact form factor. It supports in-circuit debugging and programming, via ICSP and ICD capabilities, facilitating efficient development workflows.

Compact 14-pin TSSOP surface mount package suitable for space-constrained designs. Operating voltage range from 1.8V to 5.5V supports low power applications. High performance 8-bit PIC core with RISC architecture and 49 instructions.

Includes 8 channels of 10-bit ADC for precise analog signal processing. 12 Programmable input/output pins provide flexible interfacing options. Supports various timers and PWM modules for complex timing control. Features Power-On Reset, Brown-Out Reset, and Watchdog Timer for reliable operation.

Operating temperature range from -40°C to 85°C ensures industrial grade robustness.

Microchip microcontrollers are reliable, widely supported components used in industrial, automotive, and consumer electronics embedded systems development. Explore our full range of Microchip PIC microcontrollers and related Microcontroller development tools available at EnvMart to support your next design.
