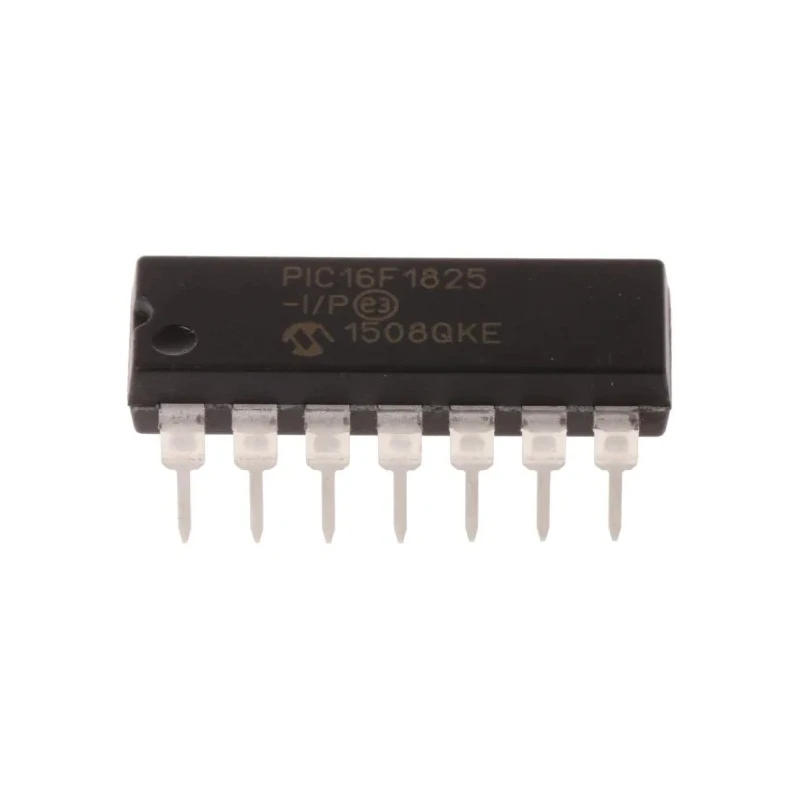

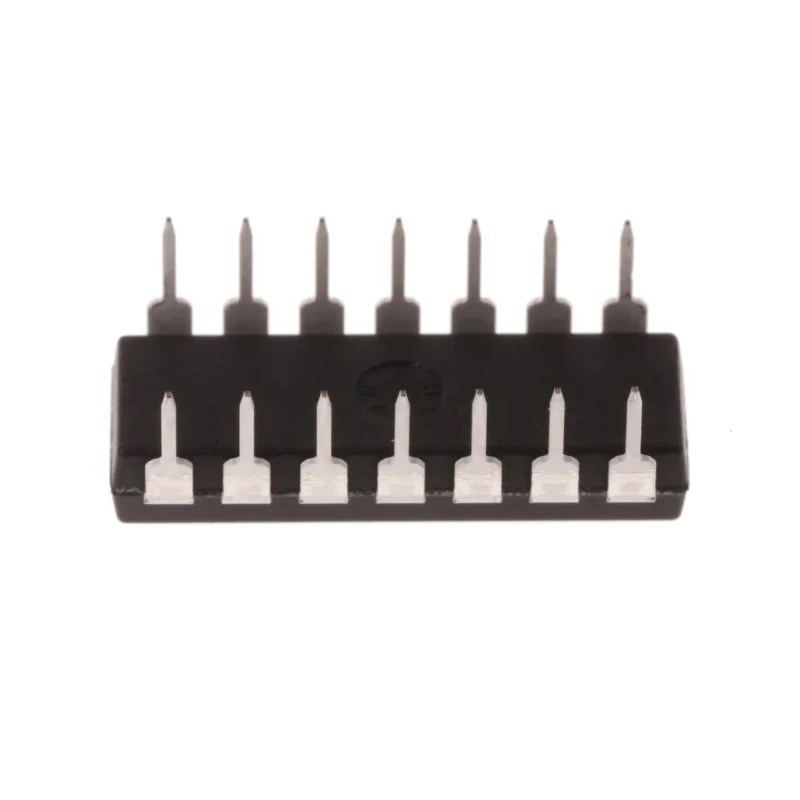

Microchip 8-bit PIC16F Microcontroller 32 MHz, 14kB FLASH, 14-Pin PDIP PIC16F1825-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 5.08mm |
| Length | 19.81mm |
| Model | PIC16F1825-I/P |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- This microcontroller operates up to 32 MHz with an 8-bit data bus width.
- It features 14 kB of program memory and 1 kB of RAM for versatile embedded applications.
- Includes 12 programmable I/O pins and multiple on-chip peripherals such as ADCs and timers.
- Operates within a voltage range of 1.8V to 5.5V with a power dissipation of 800 mW maximum.
- Suitable for industrial, automotive (ISO/TS 16949), and general embedded system applications.
- Package type is PDIP with through-hole mounting for ease of prototyping and assembly.
- Temperature operating range is from -40°C to +85°C ensuring reliability in harsh environments.
- Includes features such as Power-On Reset, Brown-Out Reset, Watchdog Timer, and In-Circuit Debug and Programming support.
Product Description
Microchip PIC16F1825-I/P is a reliable 8-bit PIC microcontroller designed for various embedded system applications. This device features a maximum clock frequency of 32 MHz and comes with 14 kB of FLASH program memory and 1 kB of RAM, supporting efficient code execution and data management.
The microcontroller is housed in a 14-Pin PDIP package with through-hole mount, facilitating easy integration into prototype circuits and custom PCB designs. It operates on a wide voltage range of 1.8V to 5.5V and supports power dissipation up to 800 mW, making it suitable for low power embedded applications.
Key on-chip peripherals include an 8-channel 10-bit ADC, two analog comparators, multiple timers, and PWM modules. It supports a rich set of communication protocols including SPI and I2C through the MSSP module, and an Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART).
The device incorporates safety and reliability features such as Power-On Reset (POR), Brown-Out Reset (BOR), and an Extended Watchdog Timer (WDT). It also facilitates In-Circuit Serial Programming (ICSP) and In-Circuit Debug (ICD) for development and production testing.
This microcontroller supports automotive standard ISO/TS 16949, ensuring quality compliance. Its operating temperature range from -40°C to +85°C allows use in extreme environments common in industrial and automotive contexts.
PDIP packaging with 14 pins provides straightforward implementation and prototyping flexibility.
Applications include industrial control systems, automotive electronics, consumer devices, and other embedded applications requiring efficient 8-bit microcontrollers with a compact footprint.
Explore more Microcontroller products and solutions at EnvMart for your electronic design and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features 14 kB of FLASH program memory.
This microcontroller operates within a voltage range of 1.8V to 5.5V.
It includes 12 programmable I/O pins.
The operating temperature range is from -40°C to +85°C.
It is housed in a 14-Pin PDIP package with through-hole mounting.
Key on-chip peripherals include an 8-channel 10-bit ADC, two analog comparators, multiple timers, and PWM modules.
It incorporates features such as Power-On Reset, Brown-Out Reset, and an Extended Watchdog Timer.
It complies with the automotive standard ISO/TS 16949.
The maximum power dissipation is 800 mW.
This model includes five timers.
It has a RAM size of 1 kB.
