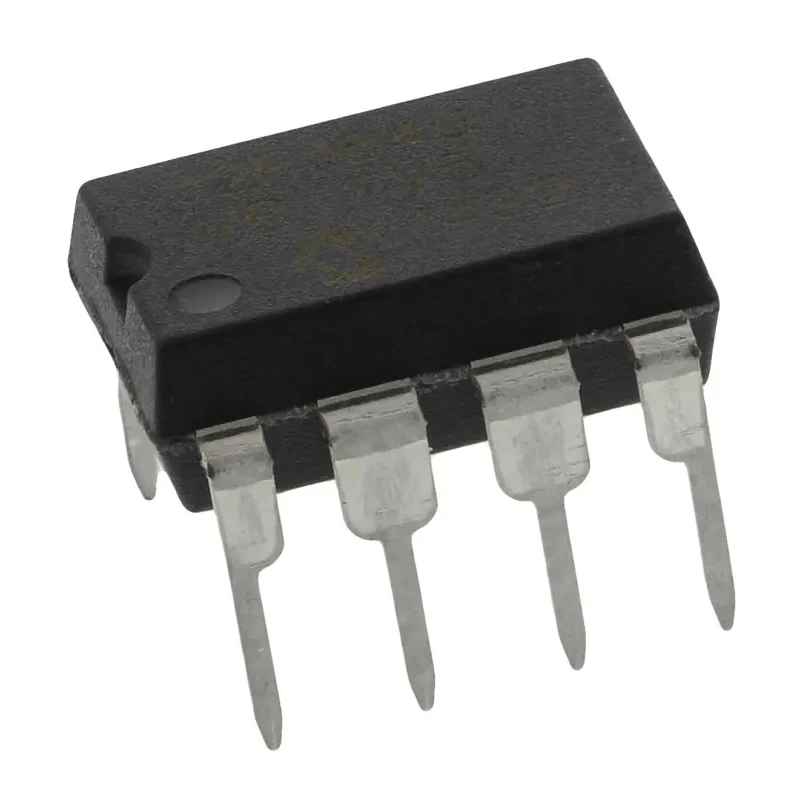

Microchip PIC12F1840-I/P 8-Bit PIC12F Microcontroller 32 MHz 7kB FLASH 8-Pin PDIP

Microchip PIC12F1840-I/P is an 8-bit PIC12F series microcontroller designed for versatile embedded applications. With a maximum clock frequency of 32 MHz and 7 kB of FLASH program memory, this device combines efficient processing power with low resource consumption within a compact 8-pin Dual In-line Package (PDIP).

This microcontroller features a PIC core with a RISC instruction set, delivering up to 8 MIPS performance. It operates across a voltage range of 2.5 V to 5.5 V and supports a maximum power dissipation of 800 mW, suited for battery-powered and low-power embedded systems.

The device includes 256 bits of RAM, 6 programmable input/output pins, and four 10-bit ADC channels, facilitating versatile sensor interfacing and analog data acquisition. Additionally, it integrates a 5-bit DAC, an analogue comparator, and capacitive sensing support for mTouch™ applications, expanding its capability for advanced human interface and control functions.

Microchip PIC12F1840-I/P supports multiple timing and communication modules including two 8-bit timers, one 16-bit timer, Enhanced Capture Compare PWM (ECCP), and Master Synchronous Serial Port (MSSP) that supports SPI and I2C protocols, as well as a USART for serial communication, enabling extensive connectivity in embedded systems.

The microcontroller is designed to work reliably within an operating temperature range of -40°C to 85°C, making it suitable for industrial, automotive, and consumer electronic applications. Its 8-pin PDIP package with through-hole mounting is ideal for rapid prototyping and development processes.

This product is RoHS compliant and is sourced from Thailand, ensuring adherence to environmental and quality standards.

Microchip's PIC12F1840-I/P continues the legacy of the PIC12 series, known as the world's first 8-pin microcontrollers, providing a perfect balance of features and performance for compact, low-footprint embedded design projects.

This microcontroller operates with a maximum supply voltage of 5.5 volts. It includes 256 bits of RAM and 6 programmable I/O pins. Features include 4 channels of 10-bit ADC and 5-bit DAC capabilities. Operating temperature ranges from -40°C to 85°C ensuring reliability in various environments.

The device supports multiple timers and communication interfaces including SPI and I2C. It offers advanced peripherals such as comparators and capacitive sensing modules. Designed with RISC architecture for efficient performance.

The package is through-hole mounted PDIP for easy prototyping and soldering. Explore the wide selection of Microchip Microcontrollers and related semiconductor products at EnvMart to find the perfect component for your embedded design needs.
