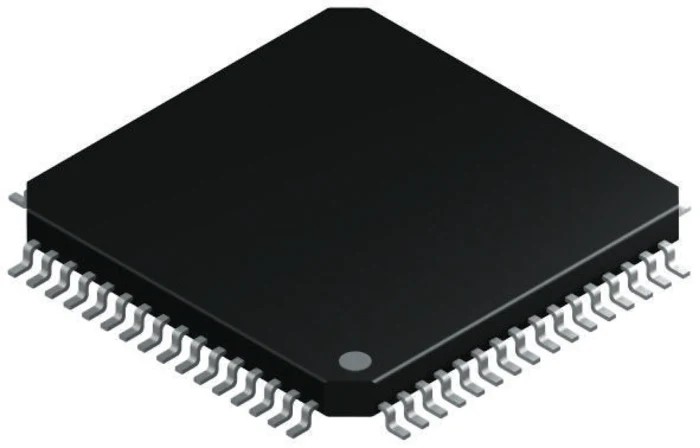

Microchip 32 Bit PIC32MX Microcontroller 80 MHz 128kB FLASH 64-Pin TQFP PIC32MX564F128H-I/PT
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC32MX564F128H-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC32MX |
| Maximum Operating Temperature | +85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Ram size | 32kB |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 80MHz |
| Number of Programmable I/Os | 51 |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
| High-performance 32-bit microcontrollers designed for | High Impact Graphics/User Interfaces, Ethernet/USB/CAN Connectivity, Multitasking Embedded Control, High Performance Audio |
Key Features
- Features a MIPS32 M4K 32-bit core for high-performance embedded applications.
- Equipped with 32kB RAM and 128kB of FLASH program memory for efficient code storage.
- Supports extensive peripherals including USB 2.0 OTG, Ethernet MAC, and CAN 2.0B module.
- Offers 16 channels of 10-bit ADCs, multiple UART, SPI, and I2C modules for versatile connectivity.
- Operates over a voltage range of 2.3V to 3.6V with wide temperature tolerance from -40°C to +85°C.
- Designed with power-saving features including low-power modes and fast wake-up.
- Includes fail-safe clock monitor, timers, comparators, and real-time clock/calendar modules.
- Surface mount 64-Pin TQFP package suitable for compact PCB designs.
Product Description
Microchip PIC32MX564F128H-I/PT is a high-performance 32-bit microcontroller featuring a MIPS32 M4K core capable of running at up to 80 MHz. This device integrates 128kB of FLASH program memory and 32kB of RAM within a 64-pin TQFP surface mount package, enabling compact and efficient embedded designs.
The microcontroller supports a rich set of integrated peripherals including USB 2.0 full-speed OTG, 10/100 Ethernet MAC with MII/RMII interface, and CAN 2.0B communication module, suitable for industrial, automotive, and communications applications.
It features 16 channels of 10-bit analog-to-digital converters, multiple UART modules supporting up to 20 Mbps, SPI and I2C interfaces, and a parallel master port for advanced data transfer capabilities. Its extensive timer modules and real-time clock/calendar facilitate real-time operations and precise timekeeping.
Power management capabilities include low-power modes, fail-safe clock monitoring, programmable PLLs, and fast wake-up features to optimize energy consumption in portable and battery-driven applications.
The operating voltage ranges from 2.3V to 3.6V, and it supports a wide operating temperature range from -40°C to +85°C, ensuring reliability in harsh industrial environments. With a small footprint at 10mm by 10mm and a package height of 1.05mm, this device fits well in space-constrained designs.
Features MIPS32 M4K 32-bit core running at 80 MHz. 128kB FLASH and 32kB RAM memory. Supports USB 2.0 OTG, Ethernet MAC, and CAN 2.0B modules. 16 channel 10-bit ADCs and multiple UART, SPI, I2C interfaces. Low-voltage operation from 2.3V minimum to 3.6V maximum.
Wide temperature range and industrial-grade reliability. Surface mount 64-pin TQFP package for compact systems. Advanced power management and clock features. Ideal for graphics, user interface, network and multitasking embedded control applications.
Microchip's PIC32MX564F128H-I/PT microcontroller is suitable for a variety of industrial, embedded, communications, and user interface applications, offering robust connectivity and processing power. Its integration with MPLAB Harmony software platform simplifies development and accelerates time-to-market. Explore Microchip Microcontrollers at EnvMart for reliable semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC32MX564F128H-I/PT microcontroller has a maximum operating frequency of 80 MHz.
It features 128kB of FLASH program memory and 32kB of RAM.
This model operates within a voltage range of 2.3V to 3.6V.
It can operate in a wide temperature range from -40°C to +85°C.
The PIC32MX564F128H-I/PT has a total of 64 pins.
It supports USB 2.0 OTG, Ethernet MAC, and CAN 2.0B communication modules.
It is housed in a surface mount 64-pin TQFP package with dimensions of 10mm x 10mm and a height of 1.05mm.
It features 16 channels of 10-bit analog-to-digital converters (ADCs).
This microcontroller is designed for high-impact graphics, user interfaces, Ethernet, USB, CAN connectivity, and multitasking embedded control applications.
It includes low-power modes, fail-safe clock monitoring, and fast wake-up features to optimize energy consumption.
The PIC32MX564F128H-I/PT has 51 programmable I/Os.
It utilizes a RISC instruction set architecture.
