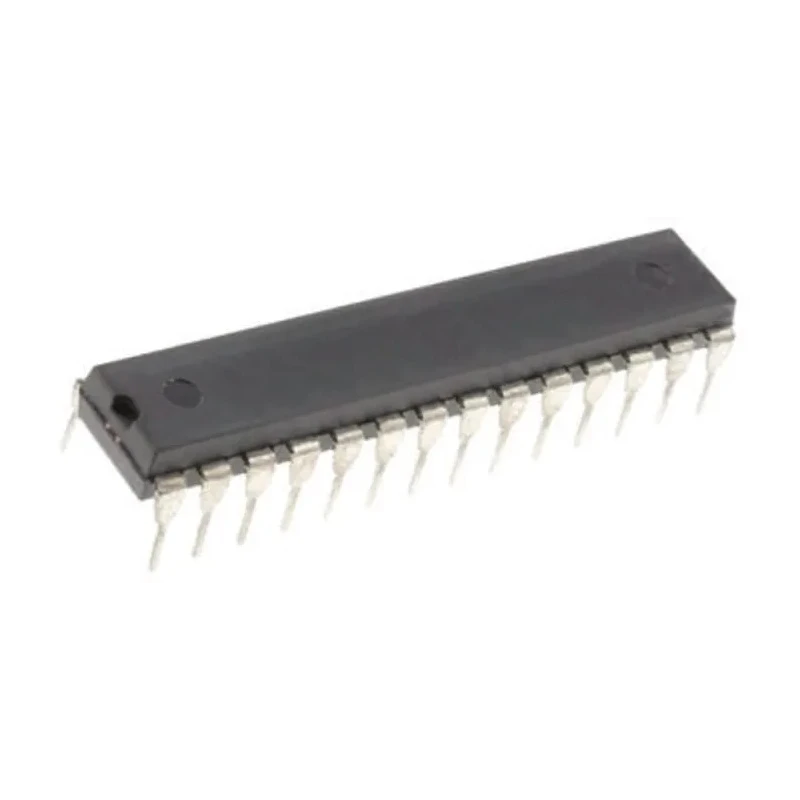

Microchip 16 bit PIC PIC24FV Microcontroller 32 MHz 32kB Flash 28-Pin SPDIP
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 3.81mm |
| Length | 35.56mm |
| Model | PIC24FV |
| Width | 0.3in |
| Mount Type | Through Hole |
| Series | PIC24FV |
| Maximum Operating Temperature | 85°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2.05kB |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 3 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC, DSP |
| ADCs | 13 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- 16-bit PIC architecture with 32 MHz maximum clock frequency for efficient processing.
- 32 kB Flash memory for program storage and 2.05 kB RAM for data operations.
- Operates with supply voltage ranging from 2 V to 5.5 V.
- Includes 13 analog-to-digital converters (ADCs) of 12-bit resolution.
- Equipped with 3 analogue comparators and 5 timers for versatile applications.
- Package mount type is Through Hole suitable for PDIP sockets or PCB insertion.
- Operating temperature range from -40°C to +85°C ensures reliability in various environments.
- Instruction set architecture based on RISC and DSP for performance and efficiency.
Product Description
The Microchip PIC24FV32KA302-I/SP is a 16-bit PIC microcontroller delivering a maximum clock frequency of 32 MHz, packaged in a 28-Pin SPDIP format. It features 32 kB of FLASH program memory and 2.05 kB of RAM, suitable for compact embedded designs requiring moderate processing power.
This microcontroller is designed for reliable operation across a supply voltage range from 2 V to 5.5 V and can operate in temperatures between -40°C and 85°C, making it excellent for harsh industrial environments and control systems.
Its architecture uses RISC and DSP instruction sets, enhancing computing efficiency for signal processing and control applications. It includes 13 high-resolution 12-bit ADC channels and 3 analogue comparators to interface with analog signals effectively.
Additional features include 5 versatile timers for timing operations, and through-hole SPDIP packaging facilitates straightforward prototyping and PCB mounting. The physical dimensions are 35.56 mm in length, 3.81 mm in height, and 0.3 inch in width.
This microcontroller is widely used across industrial electronics, embedded systems, manufacturing automation, and other applications where a compact 16-bit processing unit is required.
16-bit PIC architecture with 32 MHz maximum clock frequency for efficient processing. 32 kB Flash memory for program storage and 2.05 kB RAM for data operations. Operates with supply voltage ranging from 2 V to 5.5 V. Includes 13 analog-to-digital converters (ADCs) of 12-bit resolution.
Equipped with 3 analogue comparators and 5 timers for versatile applications. Package mount type is Through Hole suitable for PDIP sockets or PCB insertion. Operating temperature range from -40°C to +85°C ensures reliability in various environments.
Instruction set architecture based on RISC and DSP for performance and efficiency. Dimensions are 35.56 mm length, 3.81 mm height, and 0.3 inch width. Ideal for industrial, electronic, embedded, and control system applications.
Explore more Microchip Microcontrollers at EnvMart for your embedded system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the Microchip PIC24FV32KA302-I/SP is 32 MHz.
It features 32 kB of FLASH program memory for program storage.
The operating temperature range is from -40°C to 85°C, allowing reliable operation in various environments.
This microcontroller operates with a supply voltage ranging from 2 V to 5.5 V.
It includes 13 analog-to-digital converters (ADCs) with 12-bit resolution.
The physical dimensions are 35.56 mm in length, 3.81 mm in height, and 0.3 inches in width.
It is packaged in a 28-Pin SPDIP format, suitable for through-hole mounting.
This microcontroller is equipped with 5 versatile timers for timing operations.
The instruction set architecture is based on RISC and DSP, enhancing performance and efficiency.
It has a RAM size of 2.05 kB for data operations.
It is widely used in industrial electronics, embedded systems, and manufacturing automation, among others.
