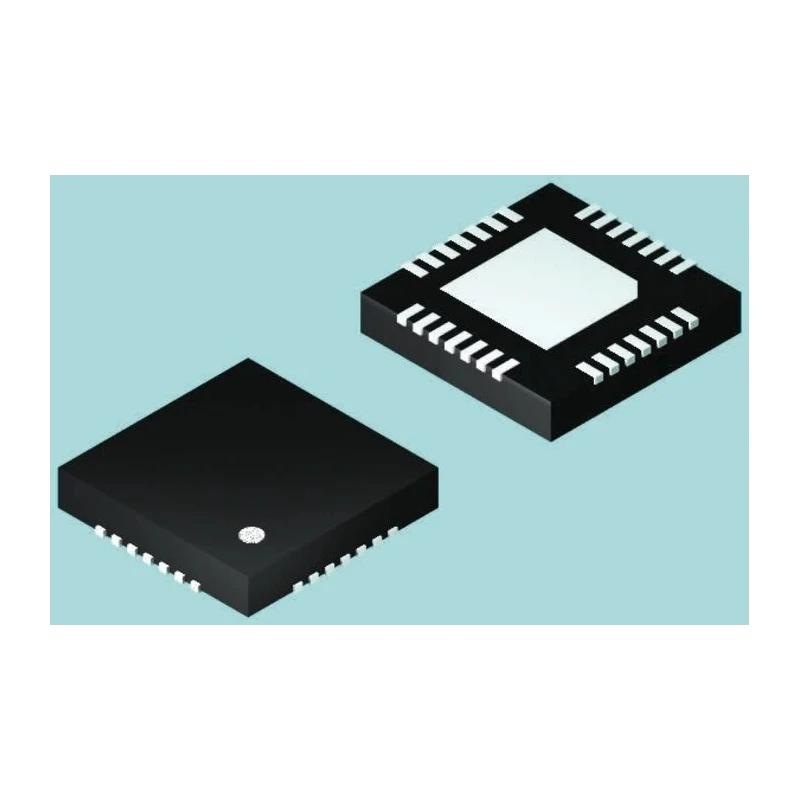

Microchip PIC24F32KA302-I/ML 16 bit PIC Microcontroller 32 MHz Clock Frequency 32kB FLASH 28-Pin QFN
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 6mm |
| Model | PIC24F32KA302-I/ML |
| Width | 6mm |
| Mount Type | Surface |
| Series | PIC24F |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 2.048kB |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 3 |
| Maximum Expanded Memory Size | 12MB |
| Number of Timers | 5 |
| Instruction Set Architecture | DSP, RISC |
| ADCs | 13 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Features a 16-bit PIC device core supporting DSP and RISC instruction set architectures.
- Operates within a voltage range of 1.8V to 5.5V for versatile power management.
- Provides 2.048kB of RAM and up to 12MB expanded memory support for complex processing tasks.
- Includes 13 analog comparators with 12-bit resolution ADCs for precise signal acquisition.
- Designed with 5 timers and packaged in a compact 28-pin QFN surface mount package.
- Compact physical dimensions of 6mm length, 6mm width, and 950μm height support space-constrained PCB designs.
- RoHS compliant ensuring environmental safety and adherence to modern standards.
- Operates reliably in temperatures ranging from -40°C to 85°C for industrial and automotive applications.
Product Description
Microchip PIC24F32KA302-I/ML is a 16-bit PIC microcontroller optimized for embedded control systems and high-performance applications. Equipped with a 32 MHz maximum clock frequency and 32kB of flash memory, this device supports DSP and RISC architectures, making it suitable for signal processing and fast instruction execution.
Its 16-bit PIC core, combined with 2.048kB RAM and support for expanded memory up to 12MB, offers versatile computational resources. The inclusion of 13 high-resolution 12-bit ADC channels and 3 analog comparators enables accurate analog data acquisition essential for industrial instrumentation and sensing applications.
The microcontroller's power supply operability extends from 1.8V to 5.5V, allowing efficient power management in embedded designs. Five internal timers facilitate precise timing and event counting functions critical to control and automation systems.
Physically, this microcontroller is housed in a low-profile 28-pin QFN package with dimensions of 6mm by 6mm and a height of 950μm, ideal for compact circuit board layouts.
Compliant with RoHS standards, it supports environmentally responsible electronics manufacturing. Its operating temperature range from -40°C to 85°C suits applications requiring wide temperature tolerance, including automotive and industrial sectors.
Common industrial uses include embedded control in manufacturing systems, instrumentation, consumer electronics, and automotive electronics. This microcontroller provides reliability and efficiency for advanced control and data processing tasks.
Features a 16-bit PIC device core supporting DSP and RISC instruction set architectures. Operates within a voltage range of 1.8V to 5.5V for versatile power management. Provides 2.048kB of RAM and up to 12MB expanded memory support for complex processing tasks.
Includes 13 analog comparators with 12-bit resolution ADCs for precise signal acquisition. Designed with 5 timers and packaged in a compact 28-pin QFN surface mount package. Compact physical dimensions of 6mm length, 6mm width, and 950μm height support space-constrained PCB designs.
RoHS compliant ensuring environmental safety and adherence to modern standards. Operates reliably in temperatures ranging from -40°C to 85°C for industrial and automotive applications. Discover advanced Microchip microcontrollers and components in EnvMart's Electronics & Electricals category for semiconductor Microcontroller solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC24F32KA302-I/ML microcontroller has a maximum clock frequency of 32 MHz.
It operates within a voltage range of 1.8V to 5.5V, allowing for versatile power management.
This model features 32kB of flash memory for program storage.
It includes 2.048kB of RAM and supports up to 12MB of expanded memory.
The microcontroller includes 3 analog comparators and 13 ADC channels with 12-bit resolution.
It has compact dimensions of 6mm in length, 6mm in width, and a height of 950μm.
It is packaged in a 28-pin QFN (Quad Flat No-lead) surface mount package.
This microcontroller operates reliably within a temperature range of -40°C to 85°C.
There are 5 internal timers designed for precise timing and event counting functions.
It supports DSP and RISC instruction set architectures, making it suitable for various applications.
Yes, it is RoHS compliant, ensuring adherence to environmental safety standards.
This microcontroller is suitable for embedded control in manufacturing systems, instrumentation, consumer electronics, and automotive electronics.
