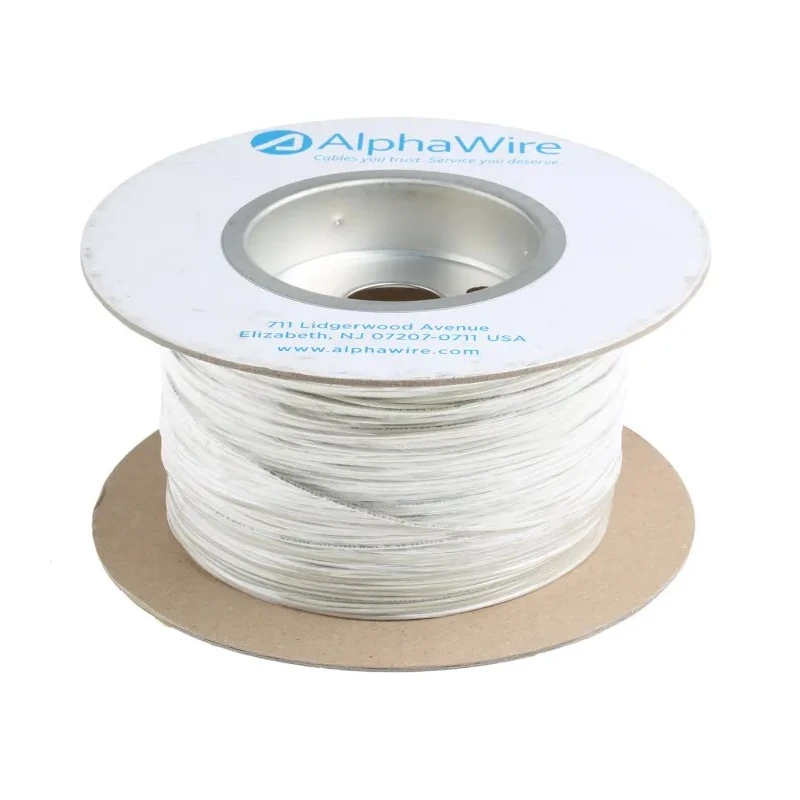

Alpha Wire Ecogen Ecowire Series White 0.33 mm² Hook Up Wire, 22 AWG, 7x0.25 mm Core Strands, 305 m, MPPE Jacket 6713 WH001

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Ecogen Ecowire Series White 0.33 mm² Hook Up Wire, 22 AWG, 7x0.25 mm Core Strands, 305 m, MPPE Jacket 6713 WH001

Name: Alpha Wire Ecogen Ecowire Series White 0.33 mm² Hook Up Wire, 22 AWG, 7x0.25 mm Core Strands, 305 m, MPPE Jacket 6713 WH001
Brand: ALPHA WIRE
SKU: 224481
Price: 259.15 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Alpha Wire
CROSS SECTIONAL AREA	0.33mm²
Model	6713 WH001
Cable Length	305m
Series	Ecogen Ecowire
Outside diameter	1.24mm
Maximum Operating Temperature	105°C
Conductor Material	Copper
Minimum Operating Temperature	-40°C
Jacket Material	MPPE
Standards/Approvals	CE, CSA, UL
Jacket Colour	White
Fire Behaviour	Flame Retardant, Halogen Free, Low Outgassing
American Wire Gauge	22AWG
Number of Strands	7
Core Strands	7 x 0.25mm
Size of Strands	0.25mm

Key Features

The wire features a 305 m continuous length ideal for industrial wiring applications.
Outer jacket is flame retardant, halogen free, and designed for low outgassing in fire scenarios.
Rated for operating temperatures from -40°C to 105°C for versatile environments.
Meets UL, CSA, CE standards ensuring reliable industrial and medical application compliance.
Constructed with modified polyphenylene ether insulation and polyurethane jacket for abrasion resistance.
Suitable for automation cabinets, control panels, electronics manufacturing, and medical devices.
Provides compliance with RoHS, REACH, and ISO 10993-5 biocompatibility testing.
Designed for systems requiring flame resistance IEC 60332-2 and vertical flame test UL VW-1.

Product Description

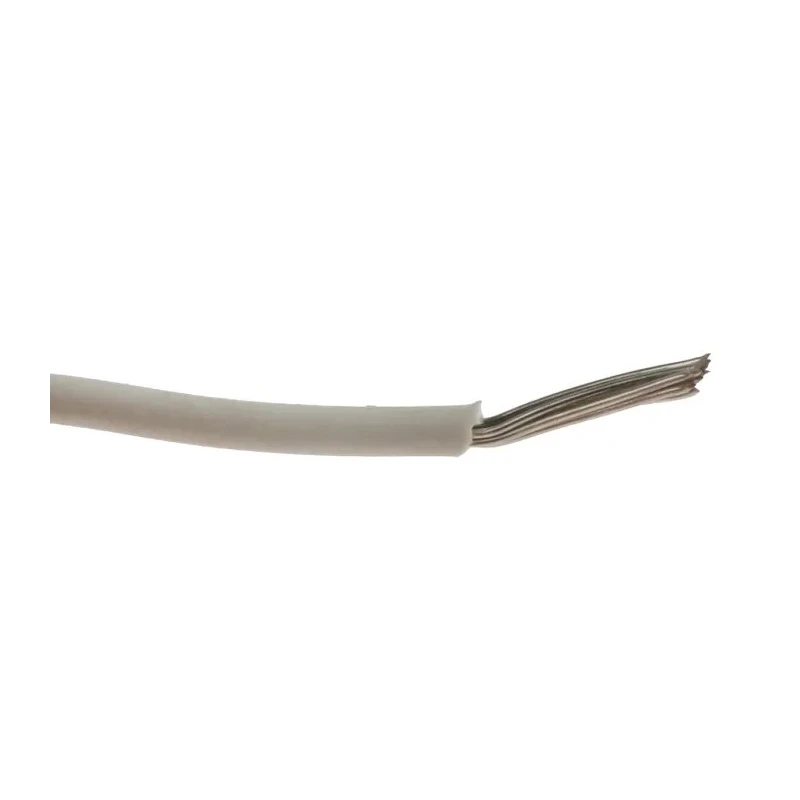

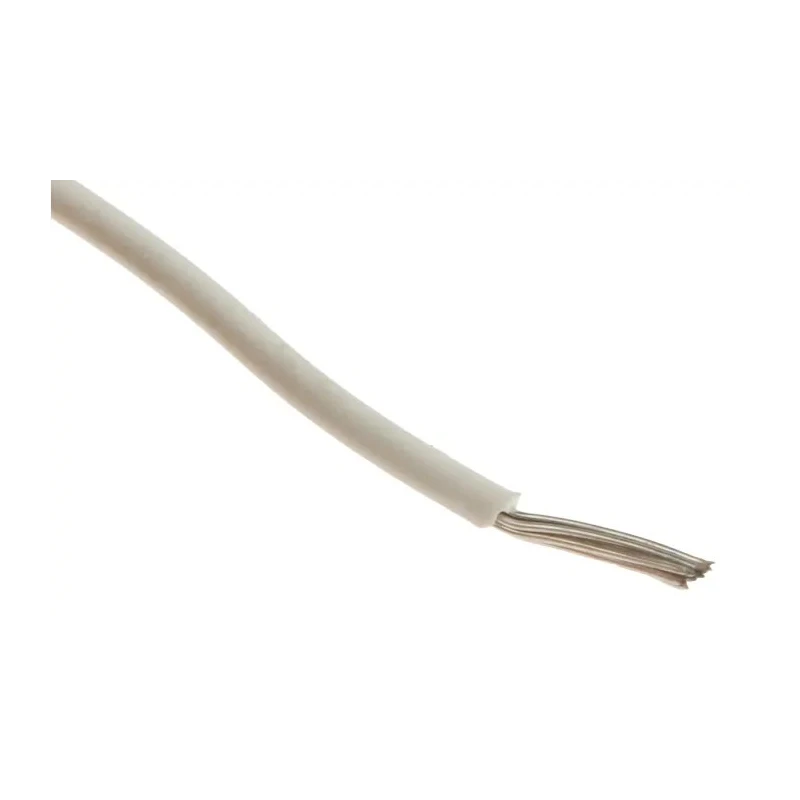

Alpha Wire 6713 WH001 Ecogen Ecowire Series is a 0.33 mm² hook up wire designed for flexible internal wiring and signal connections in demanding industrial and medical environments. It features a multi-strand copper conductor constructed with seven strands of 0.25 mm diameter wire, providing enhanced flexibility and ease of installation within tight routing channels.

The wire has a white MPPE (modified polyphenylene ether) jacket combined with a polyurethane outer layer, offering a robust balance between thermal endurance, mechanical abrasion resistance, and low toxic emission in fire conditions. Rated for continuous service at voltages up to 600 V and temperatures ranging from -40°C to 105°C, this wire supports critical safety requirements including flame retardancy, halogen-free composition, and minimal outgassing.

Alpha Wire 6713 WH001 complies with key international standards including UL AWM 11028 VW-1, CSA AWM I A/B FT1, IEC 60332-2 flame resistance, and RoHS/REACH regulations, ensuring dependable performance for electrical installations in automation cabinets, control panels, and medical device wiring. Its construction meets ISO 10993-5 biocompatibility requirements ideal for medical applications.

This Hook Up Wire is supplied in a 305 m long continuous reel, suitable for prototyping to high-volume production runs. Its flame retardant and halogen-free features reduce corrosive gases during fire situations, improving safety in industrial workspaces and health care environments.

The wire features a 0.33 mm² copper conductor with seven strands for flexibility. MPPE jacket ensures flame retardancy and low emission. Rated for 600 V and temperature range -40°C to 105°C. Meets UL, CSA, IEC and RoHS standards.

Ideal for automation, electronics manufacturing, and medical device wiring. Explore more from the Alpha Wire Ecogen Ecowire Series and browse related cables and wires at EnvMart.
