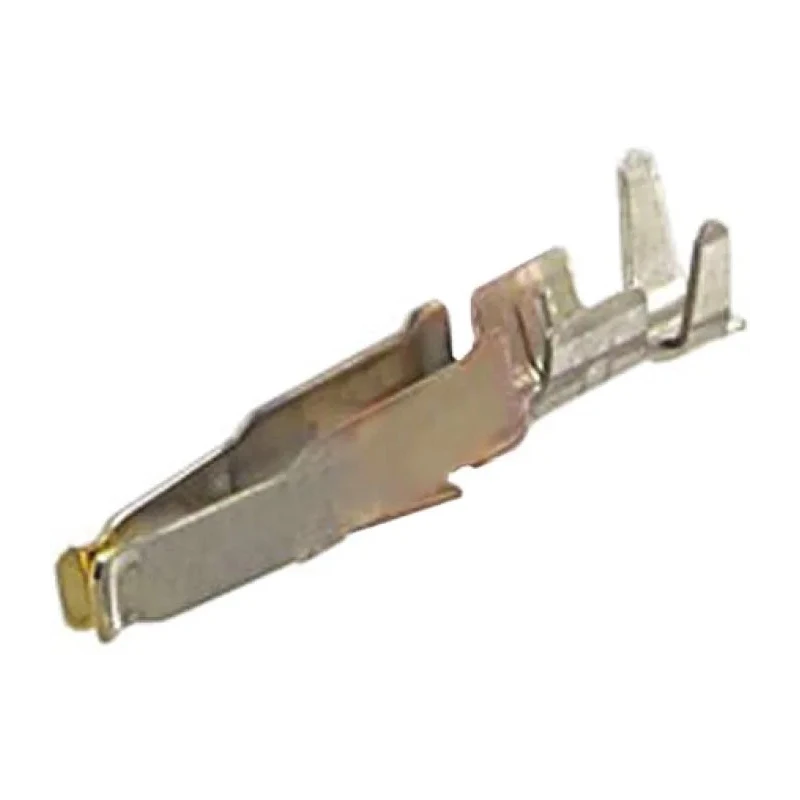

HARTING Backplane Connector Contact Straight Female Gold over Nickel Copper Alloy 6A Crimp Termination 09060006482
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 6A |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | 09 06 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Wire size | 0.5, 1.5mm² |
| For Use With | DIN41612 Type F Female Connector, DIN41612 Type E Female Connector, DIN41612 Type D Female Connector |
| Contact Plating | Gold over Nickel |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Compatible with DIN41612 Type F, E, and D female connectors.
- Designed for crimp termination with wire sizes 0.5 to 1.5 mm².
- Rated current of 6 amps suitable for power applications.
- Operating temperature range from -55°C to 125°C ensures reliable performance.
- Contact resistance maximum of 20 milliohms maintains signal integrity.
- Constructed using copper alloy contact material for durability.
- Gold over nickel plating provides corrosion resistance and optimum conductivity.
- Suitable for use in backplane and rack connector assemblies.
Product Description
HARTING 09060006482 Backplane Connector Contact is a precision-engineered component designed for use in DIN41612 type F, E, and D female connectors. This straight orientation contact is constructed from high-quality copper alloy to ensure mechanical robustness and electrical reliability in high-demand industrial and electronic applications.
The contact features a gold over nickel plating that provides excellent corrosion resistance and maintains superior electrical conductivity over extended periods, making it ideal for use in backplanes and rack connector assemblies within control cards, power supply units, and railway transport systems.
Designed for crimp termination, this backplane connector contact supports wire sizes ranging from 0.5 to 1.5 mm², enabling flexible integration into various wiring harnesses. Its current rating of 6 amperes and a low maximum contact resistance of 20 milliohms ensure stable power transmission and signal integrity under operational stresses.
With an operating temperature range spanning from -55°C to 125°C, this contact maintains dependable performance in diverse environmental conditions. Manufactured in Germany, it meets rigorous quality standards to deliver consistent functionality and long service life.
Compatible with DIN41612 Type F, E, and D female connectors. Supports crimp termination for wire sizes 0.5 to 1.5 mm². 6 amp current rating suitable for power and control applications. Gold over nickel plating enhances durability and conductivity.
Maximum contact resistance of 20 milliohms for optimal electrical performance. Constructed from copper alloy contact material. Operates reliably between -55°C and 125°C. Manufactured in Germany to exacting standards.
This backplane connector contact is widely used in industrial, electronic, and electrical assembly manufacturing to ensure reliable connections in power and control cards as well as transportation equipment. It is an essential component for design engineers and maintenance professionals involved in high reliability electronics and power distribution systems.
Explore the full range of HARTING connector solutions and components on EnvMart for your next electrical assembly or industrial project.
Explore more products in our Backplane Connector Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This backplane connector contact has a current rating of 6 amperes, making it suitable for power applications.
It supports crimp termination for wire sizes ranging from 0.5 to 1.5 mm².
The maximum contact resistance is 20 milliohms, ensuring optimal electrical performance and signal integrity.
It operates reliably within a temperature range of -55°C to 125°C.
This contact is compatible with DIN41612 Type F, E, and D female connectors.
The contact is constructed from copper alloy, which provides mechanical robustness and electrical reliability.
This model is designed for crimp termination, allowing for secure connections with compatible wire sizes.
It is manufactured in Germany, adhering to rigorous quality standards.
It features gold over nickel plating, which enhances durability and conductivity.
This contact belongs to the HARTING series 09 06.
It is widely used in industrial, electronic, and electrical assembly manufacturing, particularly in power and control cards.
This connector contact has a straight orientation, suitable for various assembly configurations.
