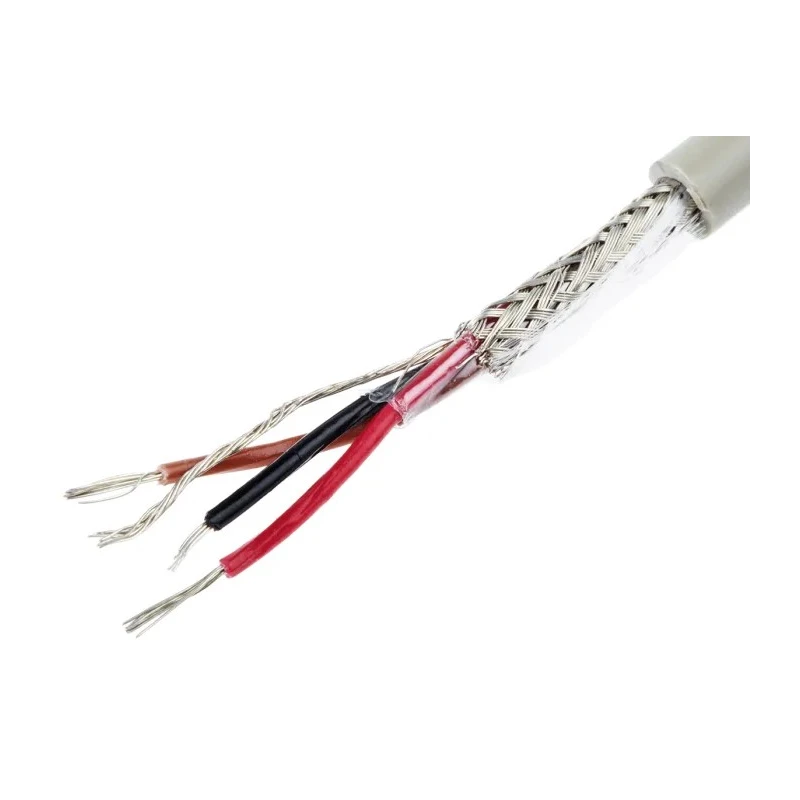

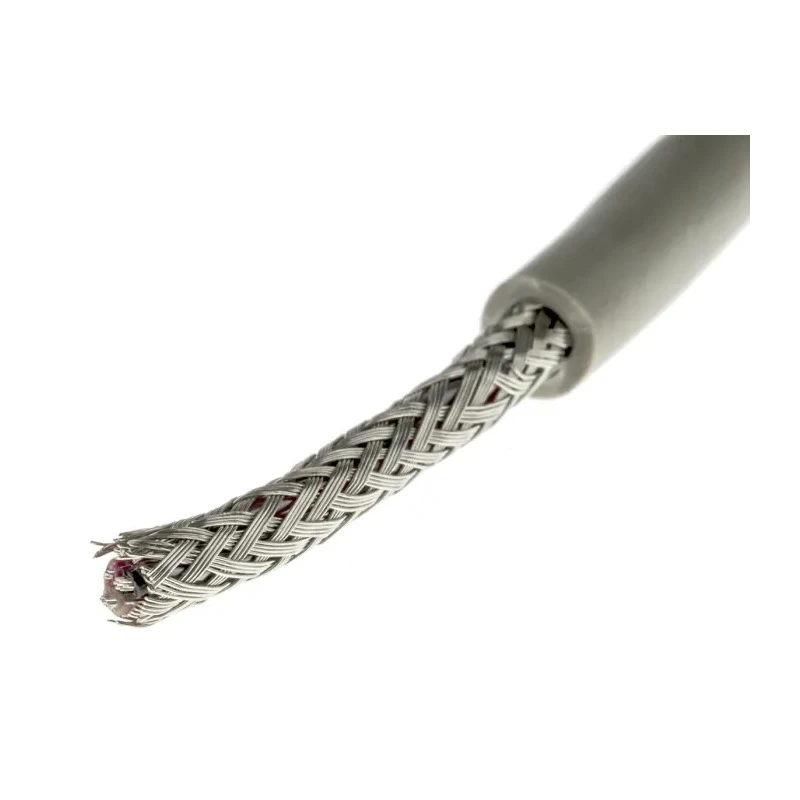

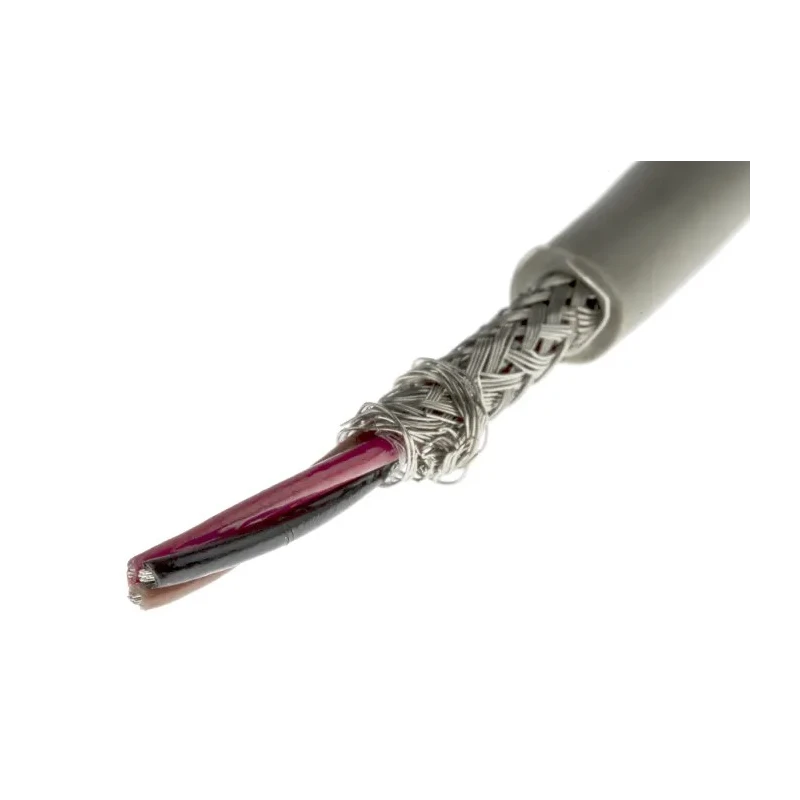

Alpha Wire Pro-Tekt Series Data Cable 3 Cores 0.14 mm² 50 m Grey Sheath Polyvinyl Chloride B952033 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.14mm² |
| Model | B952033 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 4.39mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 3 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.173 inch (4.39 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.16mm |
| Size of Strands | 0.16mm |
| Conductors | 3, Black, Brown, Red |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/34 |
Key Features
- The cable features stranded tin copper conductors for enhanced flexibility.
- It operates reliably in temperatures from -30°C up to 105°C.
- The grey PVC sheath is UV and oil resistant, providing durability and abrasion resistance.
- Includes flame retardant properties ensuring safer operation in industrial environments.
- The cable has a nominal outside diameter of 4.39 mm with a jacket thickness of 0.81 mm.
- It has a high-quality braided shield offering excellent mechanical strength and electromagnetic interference resistance.
- Colour coded cores (Black, Brown, Red) simplify installation and maintenance.
Product Description
Alpha Wire B952033 GE321 Pro-Tekt Series Data Cable is designed for high-performance data and power transmission in demanding industrial environments. Featuring three colour-coded cores with a cross-sectional area of 0.14 mm² each, the stranded conductors are made from tin-plated copper wire, enhancing flexibility and corrosion resistance. The cable is sheathed in grey polyvinyl chloride (PVC), which offers resistance against oils, UV degradation, and abrasion, while ensuring flame retardant properties for safe usage.
This 50-meter long cable operates over a wide temperature range from -30°C to 105°C and carries a nominal voltage of 300V, making it suitable for electrical power and industrial applications including automation systems, medical devices, aerospace, petrochemical industries, and commercial electronics. The Pro-Tekt range is noted for combining data, power, coaxial, and audiovisual cores into a single highly reliable cable.
The cable has a nominal outside diameter of 4.39 mm with a jacket thickness of 0.81 mm, stranded at 7/34, and insulated with a thickness of 0.25 mm, ensuring both flexibility and durability. Its superior braid shielding provides excellent electromagnetic interference suppression, which is essential for maintaining signal integrity in complex industrial setups.
Alpha Wire’s Pro-Tekt cables comply with international standards including CE, CSA Certified, and UL approvals, plus IEC and UL listings for fire behaviour and safety. This makes it a trustworthy choice for installations that require adherence to stringent electrical and mechanical standards.
The cable features stranded tin copper conductors for enhanced flexibility. It operates reliably in temperatures from -30°C up to 105°C. The grey PVC sheath is UV and oil resistant, providing durability and abrasion resistance.
Includes flame retardant properties ensuring safer operation in industrial environments. Rated voltage is 300V, suitable for electrical power and industrial cable applications. The cable has a nominal outside diameter of 4.39 mm with a jacket thickness of 0.81 mm.
It has a high-quality braided shield offering excellent mechanical strength and electromagnetic interference resistance. Colour coded cores (Black, Brown, Red) simplify installation and maintenance.
Alpha Wire’s Pro-Tekt Data Cable series is ideal for use in industrial automation, manufacturing, HVAC, water treatment, medical, aerospace, and petrochemical sectors. Its premium design ensures reduced downtime due to minor faults or cable failures, and it can be easily connected to switches, plugs, sockets, and connectors for versatile installation.
Explore the Alpha Wire category on EnvMart for more cables and related industrial electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal voltage rating of this data cable is 300V, making it suitable for various electrical power and industrial applications.
This model operates reliably at temperatures up to 105°C, allowing it to be used in demanding environments.
It features three cores, which are color-coded as Black, Brown, and Red for easy identification during installation.
The cable is constructed with stranded tin copper conductors and is sheathed in grey polyvinyl chloride (PVC), which offers resistance to UV, oil, and abrasion.
The nominal outside diameter of this cable is 4.39 mm, which contributes to its flexibility and ease of installation.
This data cable includes flame retardant properties, ensuring safer operation in industrial environments.
The cable has a length of 50 meters, providing ample reach for various applications.
The cable complies with international standards including CE, CSA Certified, and UL approvals, ensuring adherence to safety and performance regulations.
The insulation thickness of this cable is 0.25 mm, contributing to its durability and performance in various applications.
This model operates reliably at temperatures as low as -30°C, making it suitable for a wide range of environments.
It features a high-quality braided shield that provides excellent mechanical strength and electromagnetic interference resistance, ensuring signal integrity.
The cable is suitable for applications in industrial automation, medical devices, aerospace, and petrochemical industries, among others.
