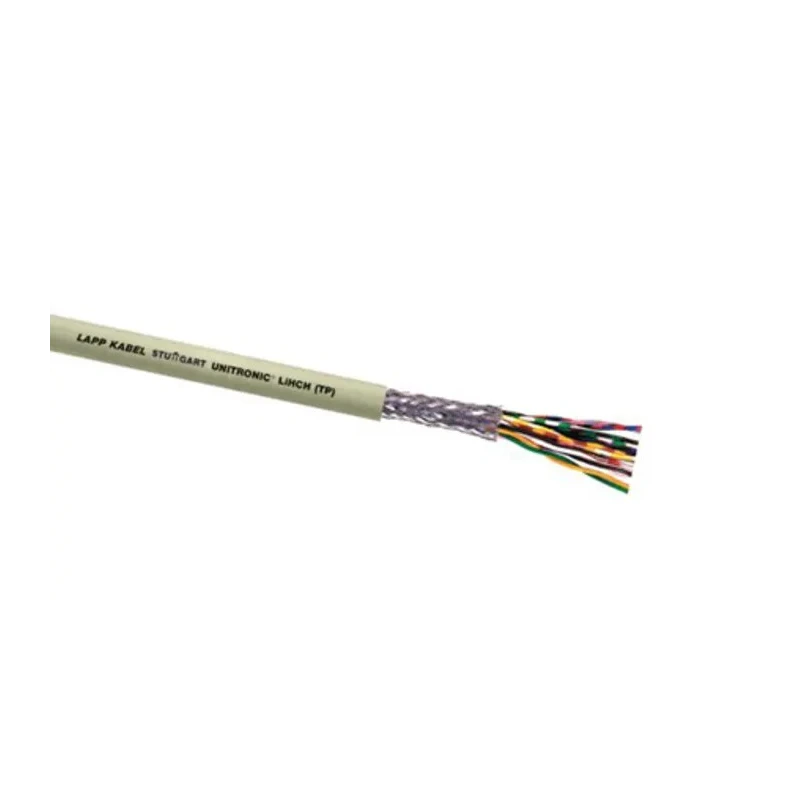

Lapp Unitronic LiHCH Series Data Cable 3 Pairs 0.25 mm² 50 m Pebble Grey Sheath Low Smoke Zero Halogen 0038403
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 0.25 mm² |
| Model | 0038403 |
| Cable Length | 50m |
| Series | Unitronic LiHCH |
| Outside diameter | 7.3mm |
| Maximum Operating Temperature | 80°C |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Low Smoke Zero Halogen |
| Standards/Approvals | EU-Directive 2014/35/EU (Low Voltage Directive) and to EU-Directive 2011/65/EU (RoHS, Restriction of the use of certain hazardous substances) |
| Jacket Colour | Pebble Grey |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Pairs | 3 |
| • Operating temperature range of with occasional flexing | -5°C to +70°C |
| • Operating temperature range in fixed installations | -30°C to +80°C |
Key Features
- The cable contains 3 pairs of stranded bare copper conductors with a cross-sectional area of 0.25 mm².
- It has a screened design with a layer of braided shielding to minimize electrical interference.
- The low smoke zero halogen (LSZH) jacket is flame retardant according to IEC 60332-1-2 standards.
- The cable operates at a voltage rating of 250 V suitable for data transmission applications.
- Operating temperature ranges from -5°C to +70°C with occasional flexing and -30°C to +80°C in fixed installations.
- The cable's outside diameter measures 7.3 mm with a pebble grey sheath colour.
- Ideal for use in industrial, public building, and transport system environments requiring safety and reduced smoke generation.
- Complies with EU directives 2014/35/EU (Low Voltage) and 2011/65/EU (RoHS) ensuring regulatory compliance.
Product Description
Lapp 0038403 Unitronic LiHCH Series Data Cable is a high-quality screened twisted pair cable designed for low-frequency data transmission. It features 3 pairs of stranded bare copper conductors each with a 0.25 mm² cross-sectional area and a pebble grey low smoke zero halogen sheath ensuring enhanced fire safety and minimal toxic emissions.
The cable construction includes polyolefin-based insulation that provides low capacitance for optimal signal integrity. The overall braid shielding effectively reduces electromagnetic interference, making it suitable for industrial and commercial data communication systems.
The cable operates at a rated voltage of 250 V and withstands temperatures from -5°C to +70°C with occasional flexing and from -30°C to +80°C in fixed installation conditions, providing excellent durability in diverse environments.
Designed to meet flame retardant standards IEC 60332-1-2 and conforming to EU directives on electrical safety (2014/35/EU) and hazardous substance restrictions (2011/65/EU RoHS), this cable ensures reliability and compliance in demanding applications.
Applications include data processing, measurement, control engineering, safety-related systems, instrumentation, office equipment, and computer systems where public safety and protection of sensitive materials are critical. Its low smoke zero halogen properties make it particularly suitable for public buildings and transportation systems with high occupancy.
Lapp also offers compatible cable glands to complement this cable's screened capabilities, enhancing installation performance. The cable contains 3 pairs of stranded bare copper conductors with 0.25 mm² cross-section. The pebble grey LSZH jacket ensures flame retardant and low smoke emission.
Suitable for operation at 250 V across broad temperature ranges. Screened braid minimizes electrical interference for reliable signal transmission. Complies with EU Low Voltage and RoHS directives, confirming safety and environmental standards.
Explore further cables and accessories within the electronics and electrical category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable operates at a voltage rating of 250 V, making it suitable for data transmission applications.
Each conductor in this cable has a cross-sectional area of 0.25 mm².
The maximum operating temperature for this cable is 80°C in fixed installations.
This model contains 3 pairs of stranded bare copper conductors.
The outside diameter of the cable measures 7.3 mm.
The jacket is made from Low Smoke Zero Halogen (LSZH) material, which enhances fire safety and minimizes toxic emissions.
The cable operates between -5°C to +70°C with occasional flexing and -30°C to +80°C in fixed installations.
It complies with EU directives 2014/35/EU (Low Voltage Directive) and 2011/65/EU (RoHS).
The cable features a screened design with a layer of braided shielding to minimize electrical interference.
It is suitable for use in industrial, public building, and transport system environments requiring safety and reduced smoke generation.
The conductors are made of stranded bare copper, which provides good electrical conductivity.
Yes, there are compatible cable glands offered to complement this cable's screened capabilities, enhancing installation performance.
