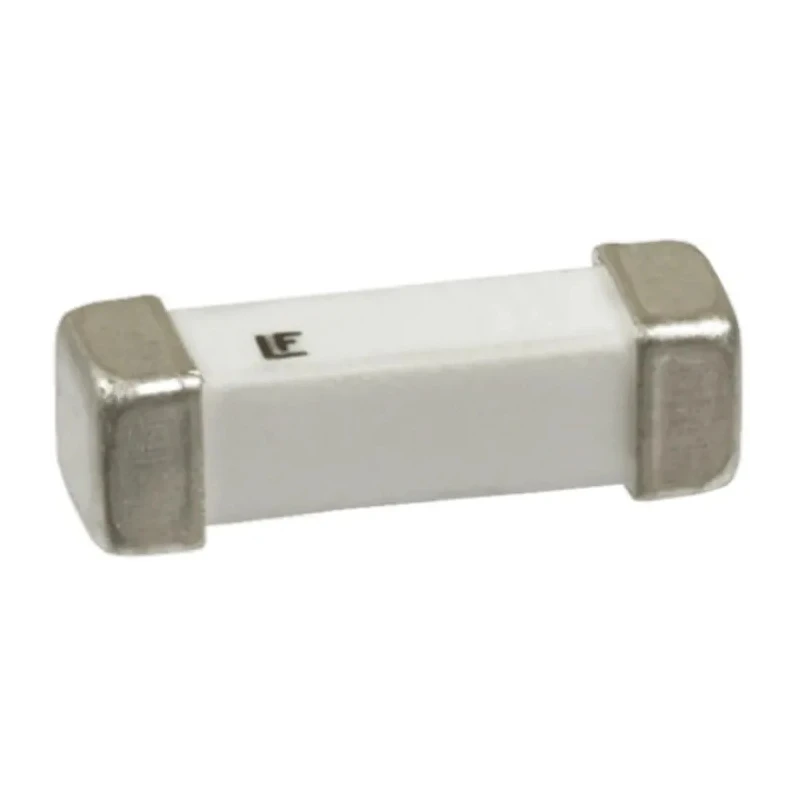

Littelfuse Non-Resettable Fuse Ceramic Body 2A 600V Time Delay 461 Series 0461002.ER

Littelfuse 0461002.ER Non-Resettable Fuse is a ceramic body fuse designed for applications requiring 2 amperes current rating and 600 volts voltage rating with time delay characteristics. This fuse is part of the 461 series TeleLink® family featuring surge resistance tailored for a wide range of telecommunications equipment. It is particularly suitable for protecting line cards, modems, fax machines, telephones, answering machines, and caller ID devices without the need for a series resistor.

Featuring silver plated terminals and a robust ceramic body material, this fuse ensures reliable electrical connectivity and durability under demanding conditions. Its compact physical dimensions of 3.12 mm width, 3.12 mm height, and 10.1 mm depth enable easy integration on printed circuit boards using surface mount technology, which saves space while enhancing assembly speed.

This fuse has a breaking capacity of 50 amperes which guarantees secure interruption of excessive current flow to prevent damage to sensitive circuit components. The fuse operates effectively in a temperature range from -55°C at low extremes to a maximum of 125°C, making it suitable for diverse industrial and commercial environments.

Manufactured to meet RoHS and CSA safety and environmental standards, the 461 series fuses are halogen free and surge tolerant. They are an excellent choice for use in telecom devices, audio/visual equipment, medical apparatus, power supplies, and computer boards requiring precise and reliable over-current protection.

This fuse features a 461 series TeleLink design for surge resistance in telecommunications equipment. It has a breaking capacity of 50 amperes ensuring safe circuit interruption. Silver plated terminals provide reliable electrical connections.

The fuse dimensions measure 3.12 mm width, 3.12 mm height, and 10.1 mm depth. Operating temperature ranges from -55°C to 125°C suitable for diverse environments. It is halogen free and RoHS and CSA compliant for environmental and safety standards.

Ideal for line cards, modems, fax machines, phones, and other telecom devices requiring over-current protection. Packaged in reels optimizing production assembly efficiency. Time delay fuse characteristics allow transient current surges without nuisance blowing.

EnvMart offers this Littelfuse 0461002.ER non-resettable fuse ideal for industrial electronics, telecommunications, and electrical automation applications. Browse our full catalog of fuses and circuit protection devices for tailored solutions to your electrical safety needs.
