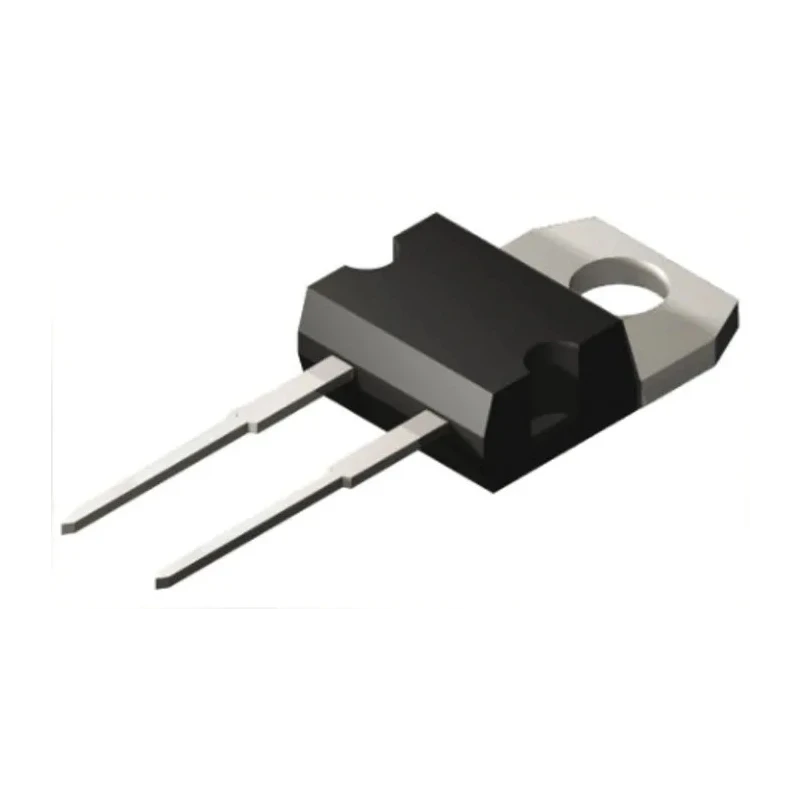

Wolfspeed 650 V 24 A Silicon Carbide Schottky Diode 2-Pin TO-220 C3D08065A

Wolfspeed C3D08065A Silicon Carbide Schottky Diode is a cutting-edge Z-Rec™ technology device tailored for industrial and electronic power applications requiring high efficiency and reliability. This diode features a 650 V peak reverse repetitive voltage rating and supports a maximum continuous forward current of 24 A, fitting the standard 2-pin TO-220 through-hole package suitable for integration into various equipment.

Its Silicon Carbide (SiC) construction allows significantly higher breakdown field strength and better thermal conductivity than conventional silicon Schottky diodes, resulting in reduced power loss and thermal management benefits. The device offers zero reverse recovery current and forward recovery voltage, enabling high-speed switching with minimal losses, ideal for switch-mode power supplies and high-speed inverters in commercial and industrial power systems.

The diode can operate over a wide temperature range from -55°C to 175°C, ensuring durability in harsh environmental conditions. Its peak non-repetitive forward surge current capacity of 650 A provides additional surge handling capability, useful in power boost and surge-prone applications. Manufacturing complies with automotive standard AEC-Q101, verifying quality and robustness for automotive and demanding industrial environments.

With dimensions of 10.41 mm length, 15.62 mm width, and 4.69 mm height, the C3D08065A provides a compact form factor while enabling parallel device operation without thermal runaway thanks to its positive temperature coefficient forward voltage.

Designed with Z-Rec™ Silicon Carbide technology for high efficiency. Offers extremely fast switching times with minimal losses. Features zero reverse recovery current and forward recovery voltage. Operates reliably between -55°C and 175°C temperature range.

Optimized for use in high-voltage applications such as switch-mode power supplies and inverters. Capable of withstanding peak non-repetitive forward surge current of 650 A. Includes automotive standard AEC-Q101 certification ensuring device quality and reliability.

Compact TO-220 package with through-hole mount enhances application versatility.

This Wolfspeed SiC Schottky Diode is ideally suited for industrial, laboratory, manufacturing, and automotive power electronics applications where efficiency and reliability at high voltages and currents are critical. For further product exploration, visit the Schottky Diodes & Rectifiers category in the EnvMart catalog.
