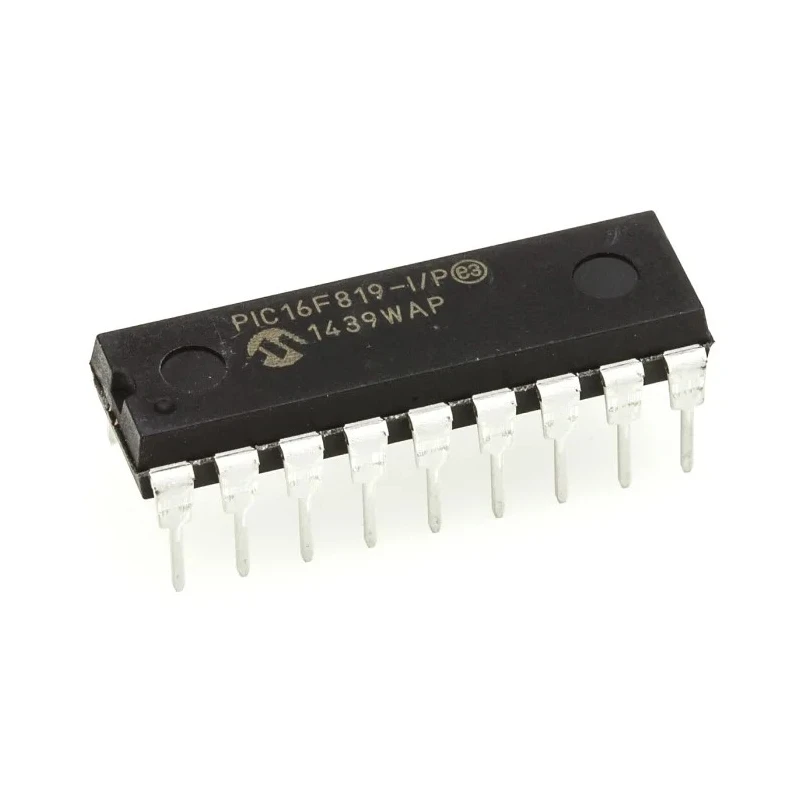

Microchip PIC16F819-I/P 8-bit PIC Microcontroller, 20 MHz, 3.584 kB Flash, 256 B RAM, 18-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.68mm |
| Length | 22.99mm |
| Model | PIC16F819-I/P |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Pin Count | 18 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 3.584, 256kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 16 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- The microcontroller operates with a 20 MHz maximum clock frequency for efficient processing.
- It incorporates 3.584 kB of program memory and 256 bytes of RAM.
- The device supports 16 programmable I/O pins for flexible interfacing.
- Operating voltage ranges from 2 V to 5.5 V with a maximum power dissipation of 1 W.
- Includes 5 channels of 10-bit ADC, 3 timers, and peripheral modules such as CCP and synchronous serial port with SPI and I2C.
- Designed with an 8-bit PIC core and RISC instruction set architecture supporting 35 instructions and an 8-level hardware stack.
- Package type is through-hole PDIP with dimensions 22.99 mm length, 6.6 mm width, and 3.68 mm height.
- Features power-on reset, brown-out reset, power-up timer, watchdog timer, and in-circuit serial programming and debug.
Product Description
Microchip PIC16F819-I/P is an 8-bit PIC microcontroller offering reliable performance with a maximum clock frequency of 20 MHz and 3.584 kB of FLASH program memory coupled with 256 bytes of RAM. Packaged in an 18-pin through-hole PDIP, this microcontroller integrates an 8-bit PIC core based on a RISC architecture with 35 instructions and an 8-level deep hardware stack.
The device provides 16 programmable input/output pins and a versatile set of peripherals including 5-channel 10-bit analog-to-digital converters, two 8-bit timers, one 16-bit timer, and Capture/Compare/PWM (CCP) modules. It supports synchronous serial communication via SPI and I2C through a synchronous serial port (SSP).
Additional features include power-on reset (POR), brown-out reset (BOR), power-up timer, oscillator start-up timer, watchdog timer, and support for in-circuit serial programming (ICSP) and debugging (ICD). The microcontroller operates over a wide supply voltage range of 2 to 5.5 volts with a maximum power dissipation of 1 watt, making it suitable for low power embedded applications.
Its compact PDIP package measures 22.99 mm in length, 6.6 mm in width, and 3.68 mm in height, allowing easy integration into various circuit board designs. The robust operating temperature of -40°C to 85°C ensures dependable operation in diverse industrial and commercial environments.
The microcontroller has a 20 MHz maximum CPU speed for moderate to high performance tasks. Equipped with 3.584 kB of FLASH program memory and 256 bytes of RAM for embedded applications. Includes 16 programmable I/O pins with flexible interface capabilities.
Features multiple timers and analog-to-digital converters for precise control and measurement. Supports in-circuit serial programming and debugging for efficient development cycles. Operates on a supply voltage from 2 V up to 5.5 V and dissipates a maximum power of 1 watt.
PDIP through-hole package facilitates easy manual assembly and prototyping. Wide operating temperature range from -40°C to 85°C ensures reliability in industrial conditions. Ideal for applications such as embedded control systems, automation, instrumentation, and education.
This Microchip PIC16F819-I/P microcontroller is a versatile and compact device well-suited for a range of embedded systems requiring moderate processing power, extensive I/O, and analog integration.
Explore more Microcontrollers and related electronics components at EnvMart to suit your development and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC16F819-I/P operates with a maximum clock frequency of 20 MHz.
It features 3.584 kB of FLASH program memory.
This microcontroller includes 16 programmable I/O pins for flexible interfacing.
The device operates over a supply voltage range of 2 V to 5.5 V.
It includes three timers: two 8-bit timers and one 16-bit timer.
The maximum power dissipation is 1 watt.
It is packaged in an 18-pin through-hole PDIP format.
The operating temperature range is from -40°C to 85°C.
The microcontroller supports 5 channels of 10-bit analog-to-digital converters (ADCs).
It uses a RISC instruction set architecture, supporting 35 instructions.
It supports synchronous serial communication via SPI and I2C through a synchronous serial port (SSP).
The height of this microcontroller is 3.68 mm.
