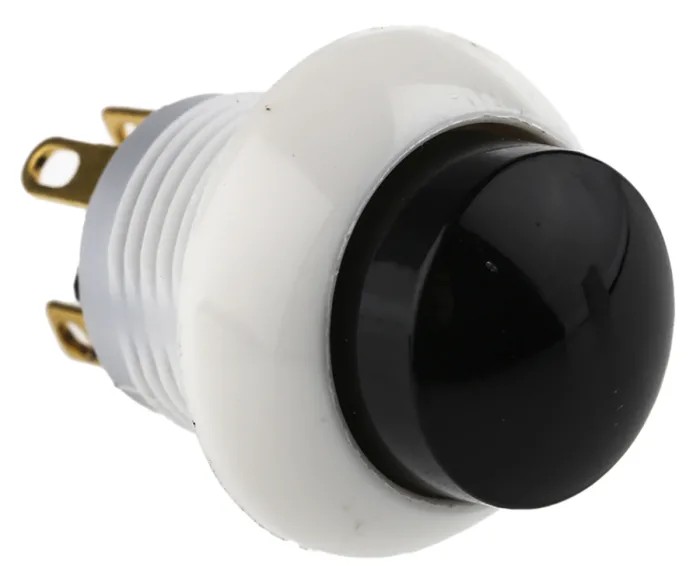

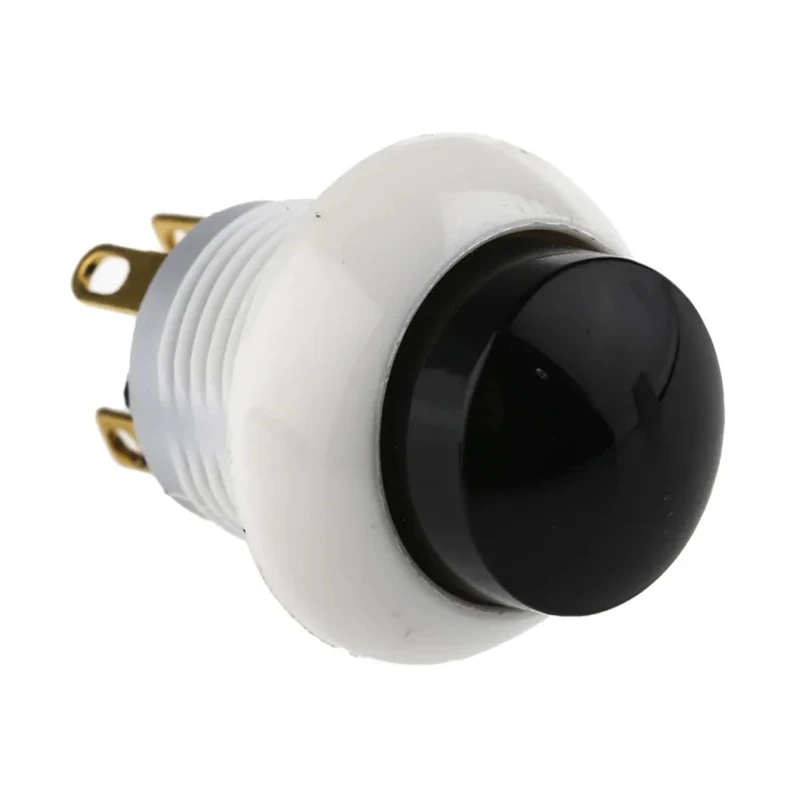

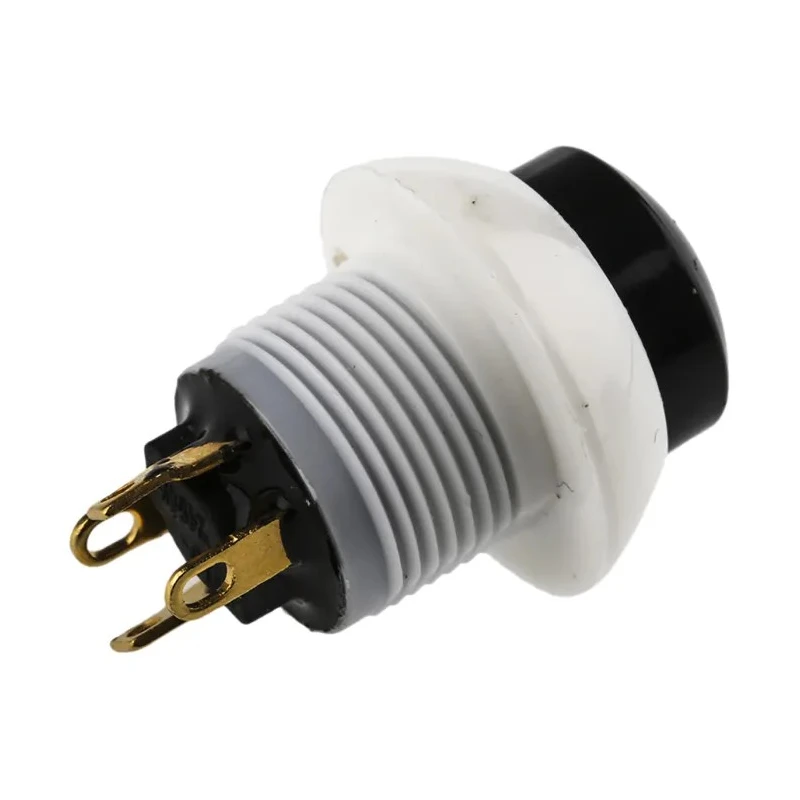

Otto P9 Series Push Button Switch Momentary Panel 12 mm Cutout DPDT Black LED IP64 28 V dc 115 V ac P9-213192

Name: Otto P9 Series Push Button Switch Momentary Panel 12 mm Cutout DPDT Black LED IP64 28 V dc 115 V ac P9-213192
Brand: Otto
SKU: 223445
Price: 18.62 USD
Availability: InStock



Category Push Button Switch Brand Otto Condition New

Specifications

Country of Origin	United States
Brand	Otto
Model	P9-213192
IP Rating	IP64
Mount Type	Panel
Series	P9
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-On
Minimum Operating Temperature	-55°C
Panel Cutout Size	12 mm
Terminal type	Solder
Standards/Approvals	RoHS
LED Colour	Black
Switch Operation	Momentary
Actuator Colour	Black
Contact DC Voltage	28V dc
Actuator Style	Button
Switch Contact Current	5A
Contact AC Voltage	115V ac

Key Features

The switch features a momentary actuator style with black colored button for tactile operation.
It facilitates panel mounting and includes solder-type terminals for secure connection.
Designed to withstand temperatures from -55°C up to 85°C, ensuring durability in varied environments.
Provides a switch contact current rating of 5 amps for reliable circuit control.
Offers IP64 protection rating, safeguarding against dust ingress and water splashes.
Constructed with a white body and black LED for clear actuation indication.
Sealed design resists shock and vibration, ideal for demanding industrial applications.
Switch operation is momentary with an On-On switch configuration for precise momentary control.

Product Description

Otto P9-213192 Push Button Switch Momentary Panel combines durable construction and precise operation in a compact package designed for panel mount applications. Featuring a 12 mm panel cutout and DPDT (Double Pole Double Throw) contact configuration, this push button switch is suitable for use in electrical and automation controls requiring momentary actuation.

The switch incorporates a black-colored button actuator with a white body, illuminated with a black LED for visible status indication. It meets IP64 ingress protection standards, offering resistance to dust and water splashes, making it suitable for challenging environments. The switch is designed to operate reliably between -55°C and 85°C, with a switch contact current rating of 5 amps and voltage ratings of 28 V dc and 115 V ac.

This model supports solder terminal connections and uses a threaded mounting style with a hex nut, ensuring stable installation. The positive tactile feedback enhances user experience in control panels and instrumentation. It is designed for high-reliability applications with mechanical life expectancy around one million operations and electrical life of 25,000 operations under full load.

Its high resistance to shock and vibrations makes it ideal for industrial, manufacturing, laboratory, HVAC, and heavy equipment control panels. The compliance with RoHS standards assures environmentally responsible manufacturing, suitable for modern industrial applications.

The switch offers momentary on-on operation to enable precise momentary contact toggling. It features low contact resistance for sensitive electronic switching. The sealed IP64 design protects internal components from contamination.

Compact design allows use in confined panel spaces with a short installation depth of approximately 12 mm behind the panel. Versatile applications include instrumentation, control grips, computers, and other demanding environments requiring rugged push button switches.

Choose Otto P9 series Push Button Switches for dependable, precision control in sophisticated electrical and automation systems.
