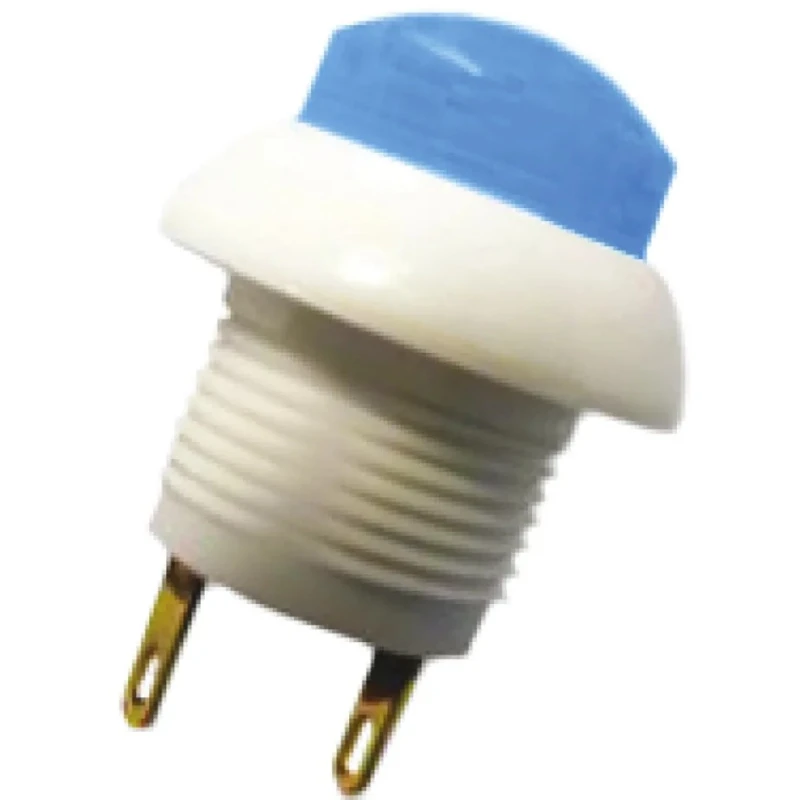

Otto P9 Series Push Button Switch Momentary Panel 12 mm Cutout DPDT Blue LED IP64 28V dc 115V ac P9-213196

Name: Otto P9 Series Push Button Switch Momentary Panel 12 mm Cutout DPDT Blue LED IP64 28V dc 115V ac P9-213196
Brand: Otto
SKU: 223444
Price: 19.56 USD
Availability: InStock



Category Push Button Switch Brand Otto Condition New

Specifications

Country of Origin	United States
Brand	Otto
Model	P9-213196
IP Rating	IP64
Mount Type	Panel
Series	P9
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-On
Minimum Operating Temperature	-55°C
Panel Cutout Size	12 mm
Terminal type	Solder
Standards/Approvals	RoHS
LED Colour	Blue
Switch Operation	Momentary
Actuator Colour	Blue
Contact DC Voltage	28V dc
Actuator Style	Button
Switch Contact Current	5A
Contact AC Voltage	115V ac

Key Features

The switch features a momentary action with a button actuator style.
It has a panel cutout size of 12 mm for easy installation.
Designed for durability with an IP64 rating for protection against dust and water ingress.
Supports contact voltages of 28V DC and 115V AC with a contact current rating of 5A.
The device has a blue actuator color and LED for visual indication.
Suitable for use in industrial control panels and heavy equipment.
Operates within a temperature range of -55°C to 85°C.
Mount type is panel with solder terminal connections ensuring reliable contact.

Product Description

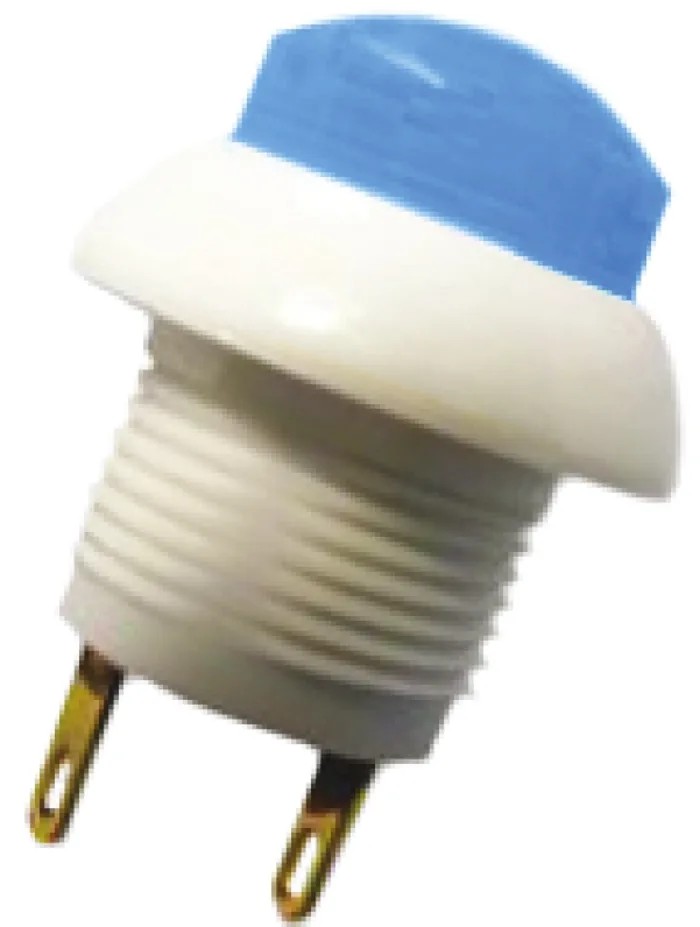

Otto P9 Series push button switch model P9-213196 is a momentary action push button designed for panel mounting using a 12 mm cutout. It features a blue actuator and blue LED illumination with a durable white bezel and body. The switch is configured as DPDT (Double Pole Double Throw) with solder terminals for reliable electrical connections.

This switch supports contact voltages of 28V DC and 115V AC with a maximum contact current of 5 amps. It is sealed to an IP64 rating, ensuring resistance to dust and splashing water, making it suitable for demanding industrial environments. The device operates reliably within a temperature range from -55°C to 85°C and is constructed to withstand extreme shock and vibration.

The P9 series switch is engineered to provide positive tactile feedback and a long mechanical life of approximately one million operations with an electrical lifecycle of 25,000 operations. It is ideal for use in panels, control grips, computers, instruments, and heavy equipment where rugged and precise switching is required.

The white bezel and body come with a choice of flush or raised dome button cap styles, providing versatility in appearance and functionality. The switch meets RoHS compliance and is manufactured in the United States.

Momentary action push button with DPDT contact configuration. 12 mm panel cutout size and panel mount installation. Blue actuator color with blue LED illumination. IP64 sealed for protection against dust and water ingress.

Contact voltages: 28V DC and 115V AC with 5A contact current. Operating temperature range from -55°C to 85°C. Solder terminal type for secure electrical connections. Resistant to shock and vibration for industrial reliability.

Approximately one million mechanical operations lifespan. RoHS compliant and made in the United States.

This Otto P9 Series Push Button Switch is tailored for various industrial and automation applications such as control panels, instrumentation, HVAC systems, and manufacturing equipment requiring reliable momentary switching. The product is part of EnvMart's extensive catalog of high-quality electrical components optimized for industrial and laboratory use.
