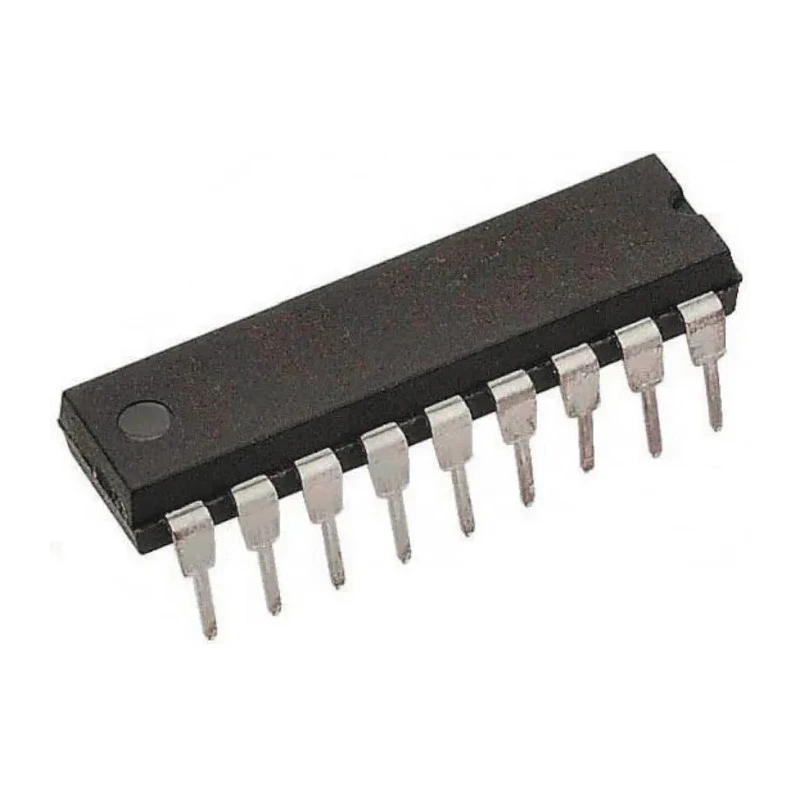

Microchip 8 bit PIC16F Microcontroller, 32 MHz, 3.5kB FLASH, 18-Pin PDIP PIC16F1826-I/P
Specifications
| Country of Origin | China |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 23.37mm |
| Model | PIC16F1826-I/P |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Interface Type | EUSART, I2C, SPI |
| Pin Count | 18 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 16 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 12 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at up to 32 MHz clock speed for efficient processing.
- Includes 3.5 kB FLASH program memory for versatile applications.
- Equipped with 256 bit RAM for data handling.
- Supports multiple interfaces including EUSART, I2C, and SPI.
- Offers 2 analogue comparators for signal comparison tasks.
- Features 16 programmable input/output pins for flexible connectivity.
- Housed in a through-hole 18-pin PDIP package for easy mounting.
- Operates within a wide voltage range of 1.8 V to 5.5 V.
Product Description
Microchip PIC16F1826-I/P is an 8-bit PIC microcontroller designed for industrial and commercial electronic applications. Featuring a maximum CPU speed of 32 MHz and 3.5 kB of FLASH program memory, this microcontroller supports robust performance in compact form factor.
It has a PIC architecture with an enhanced mid-range core that includes a 16-level deep hardware stack and a 49-instruction set. The device incorporates nanoWatt XLP technology for low power consumption, making it suitable for battery-powered and energy-efficient designs.
The 18-pin PDIP package provides easy through-hole mounting and includes 16 programmable I/O pins, allowing for flexible interfacing options. This microcontroller supports common communication protocols such as EUSART, I2C, and SPI, facilitating integration into various systems.
With peripherals including 12-channel 10-bit ADC, 2 analogue comparators, 3 timers, fixed voltage reference, data signal modulator, and watchdog timers, it is well-suited for sensor interfacing, control systems, and embedded applications in industrial, HVAC, manufacturing, and automotive environments.
Key specifications include operation over a voltage range of 1.8 to 5.5 V, extended temperature range from -40°C to 85°C, and a maximum power dissipation of 800 mW. This ensures reliable functionality in harsh operating conditions.
Operates at up to 32 MHz CPU speed. 3.5 kB FLASH program memory storage. 256 bit on-chip RAM memory capacity. Supports EUSART, I2C, and SPI interface communication. Equipped with 2 analogue comparators. Includes 12-channel 10-bit ADC for precise measurements.
Contains 3 timers and watchdog timers for timing and safety functions. Features nanoWatt XLP low power technology. Housed in through-hole 18-pin PDIP package. Wide operating voltage from 1.8 V to 5.5 V. Extended temperature range -40°C to 85°C.
This microcontroller is manufactured in China and is ideal for embedded system development, prototyping, and production in electronics industries. Its combination of small size, diverse features, and power efficiency make it well-suited for applications requiring reliable 8-bit performance.
Explore the extensive Microchip PIC16F series for enhanced mid-range Microcontrollers to meet various industrial electronics and automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz, allowing for efficient processing in various applications.
It features a program memory size of 3.5 kB FLASH, which provides versatile storage for application code.
This microcontroller supports multiple interfaces including EUSART, I2C, and SPI, facilitating integration into various systems.
It operates within a voltage range of 1.8 V to 5.5 V, making it suitable for a variety of power supply configurations.
This model is equipped with 16 programmable input/output pins, allowing for flexible connectivity options in applications.
The microcontroller operates within an extended temperature range from -40°C to 85°C, ensuring reliable performance in harsh conditions.
It has a RAM size of 256 bits, which is utilized for data handling during operation.
This microcontroller is housed in a through-hole 18-pin PDIP package, which simplifies mounting and integration into circuits.
It includes 2 analogue comparators, which are useful for performing signal comparison tasks in various applications.
The maximum power dissipation is 800 mW, allowing for efficient operation without overheating.
Key features include a 12-channel 10-bit ADC, 3 timers, and nanoWatt XLP technology for low power consumption, making it suitable for energy-efficient designs.
It utilizes a PIC architecture with an enhanced mid-range core and a 49-instruction set, providing robust performance for embedded applications.
