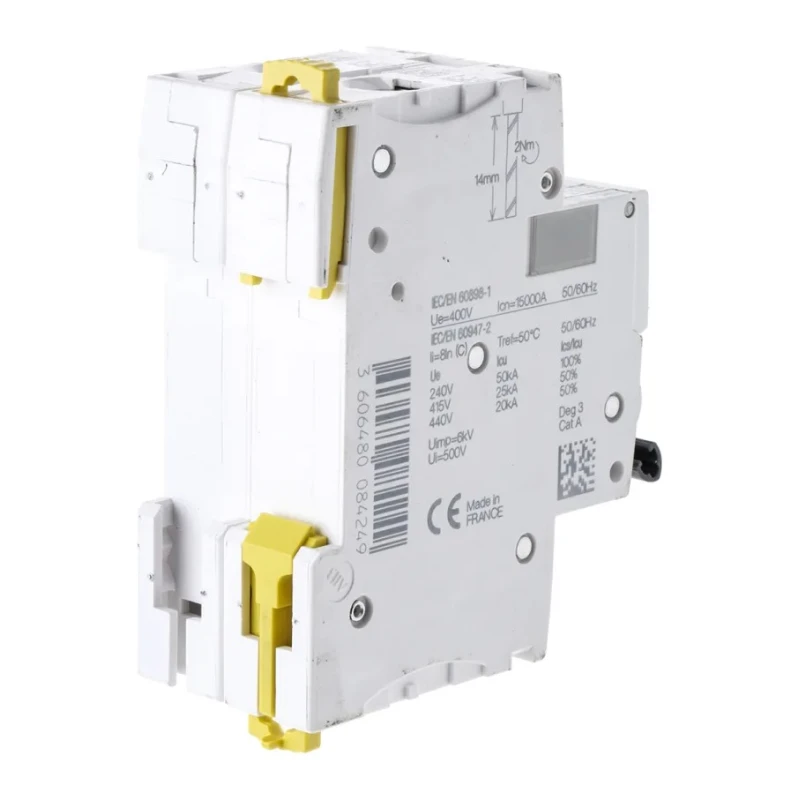

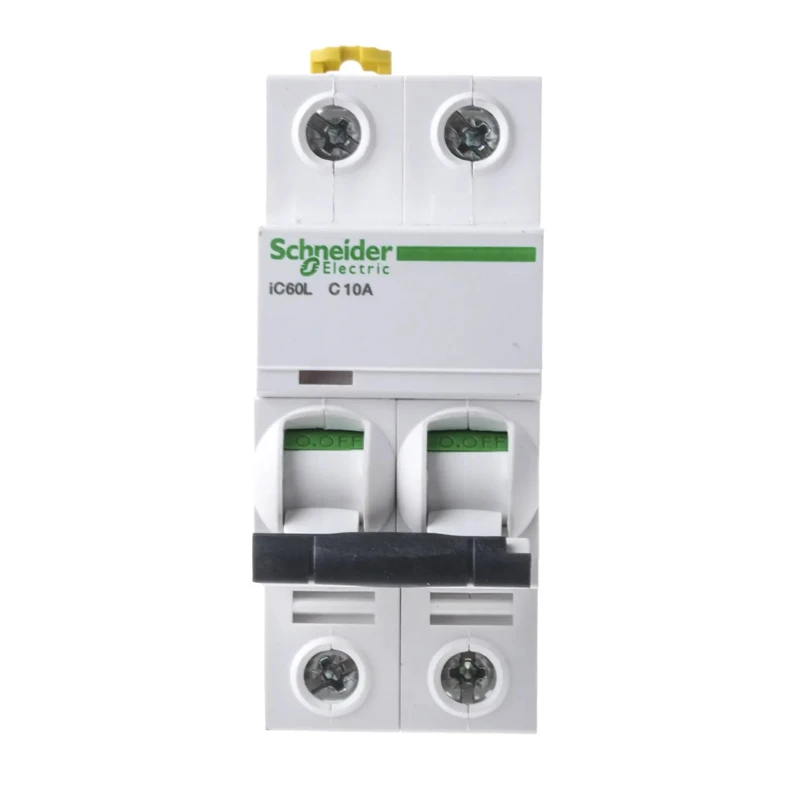

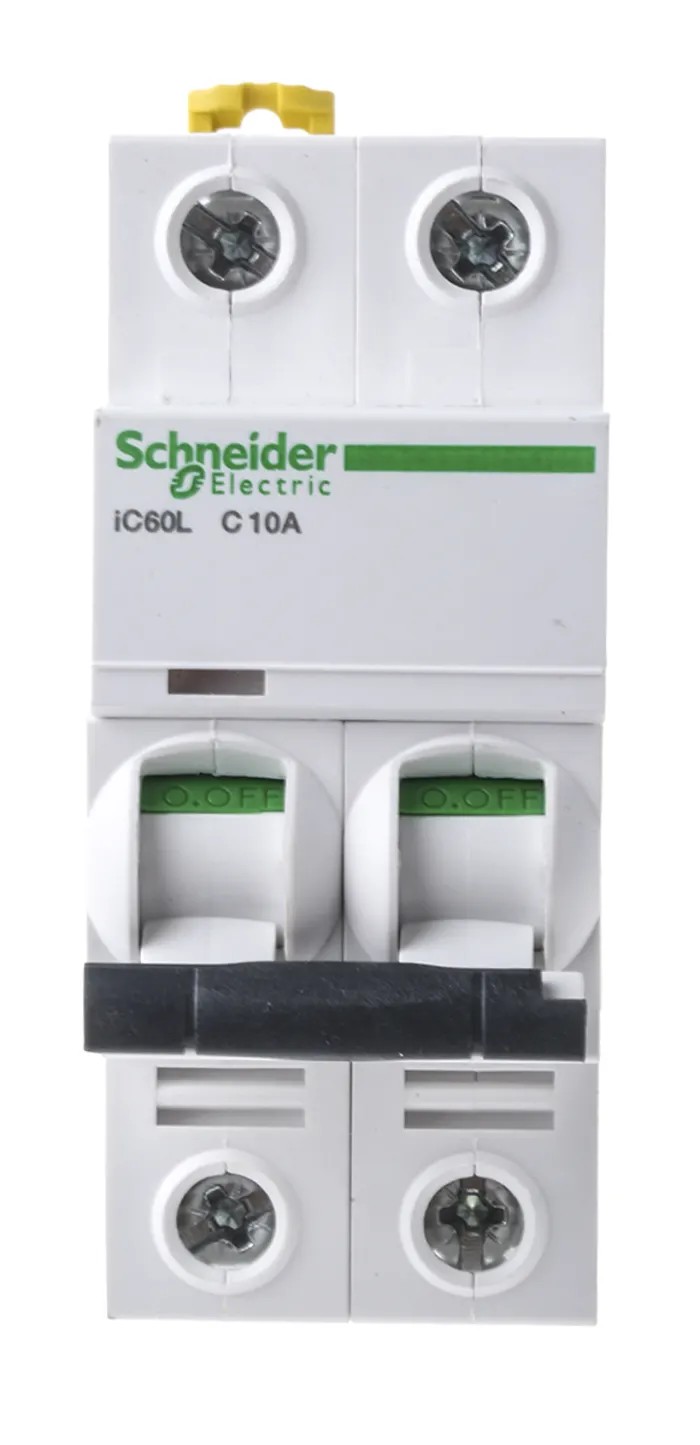

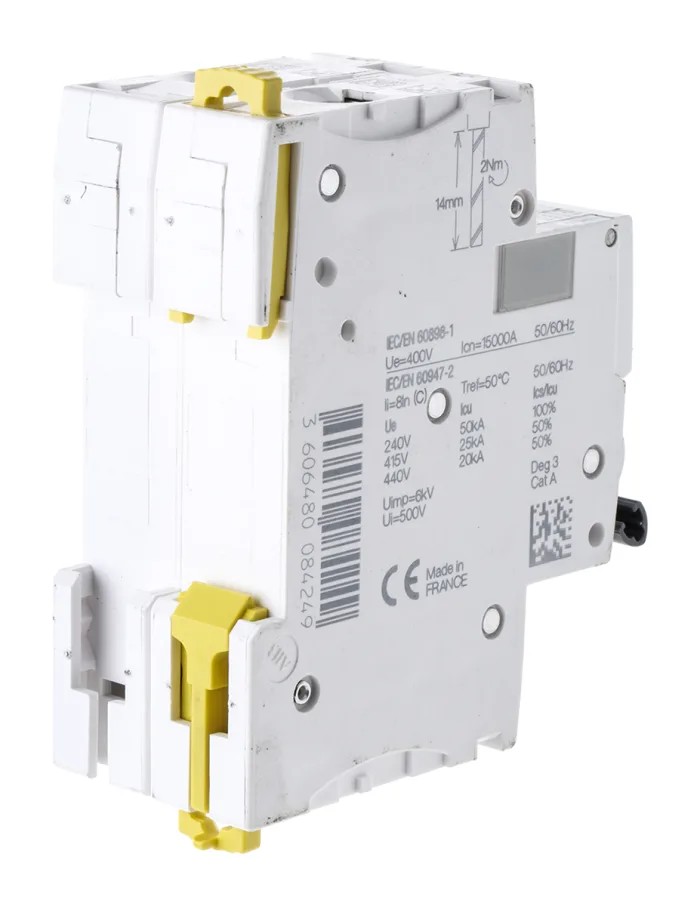

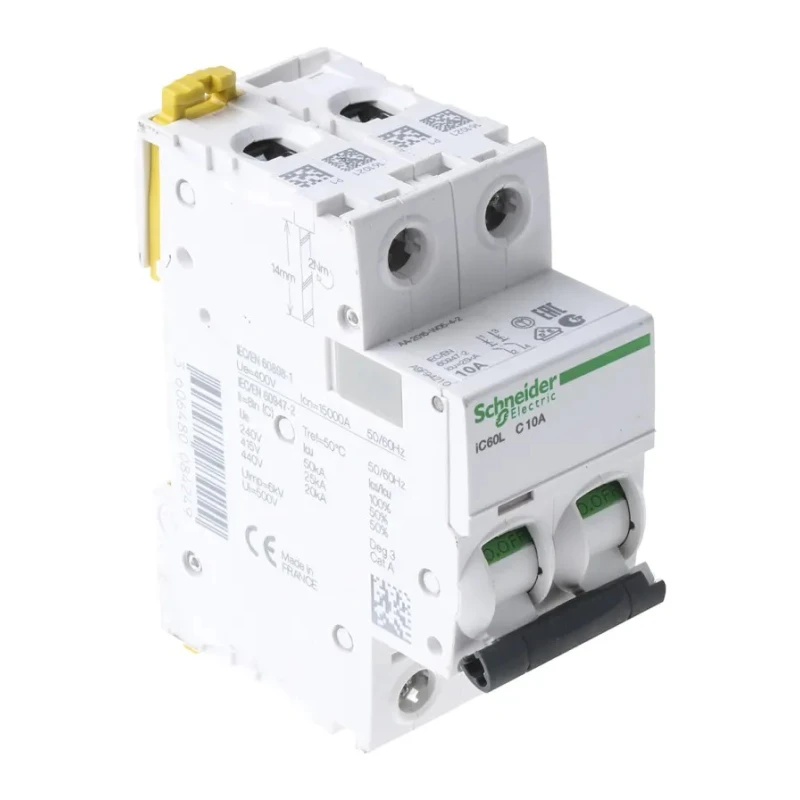

RS PRO Acti9 iC60L Miniature Circuit Breaker, 2-Pole, 10A, Type C, 100V AC, 12V DC, 10kA Breaking Capacity A9F94210
Specifications
| Country of Origin | France |
|---|---|
| Range | Acti9 |
| Brand | RS PRO |
| Height | 85mm |
| Model | A9F94210 |
| Depth | 78.5mm |
| IP Rating | IP20 |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 10A |
| Series | iC60L |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 2 |
| Standards/Approvals | EN/IEC 60898-1, EN/IEC 60947-2, REACH, RoHS |
| Rated DC Voltage | 12V dc |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Class-2 insulation | ensures continuous protection for both operators and unqualified persons |
| Curve C | Tripping: 5 to 10 times the rated current |
| Curve D | Tripping: 10 to 14 times the rated current |
Key Features
- Rated AC voltage range from 100V to 440V accommodates diverse applications.
- Breaking capacity of 10kA ensures high short circuit tolerance.
- Tripping curve type C offers trip at 5 to 10 times rated current for inductive loads.
- Compact DIN rail mount design with IP20 insulated terminals.
- Thermal magnetic tripping mechanism with toggle switch reset actuator.
- Complies with international standards EN/IEC 60898-1 and EN/IEC 60947-2.
- Visual indicators include VisiSafe green strip for safe contacts and VisiTrip red trip window.
- Robust construction with screw terminal connections and 85mm height.
Product Description
Schneider Electric A9F94210 Acti9 iC60L Miniature Circuit Breaker is a high-quality 2-pole breaker designed for circuit protection against short circuits and overloads in industrial, commercial, and residential installations. Rated for 10A current, it supports a broad AC voltage rating from 100V up to 440V, alongside a 12V DC rating, making it versatile for various electrical systems.
This model features a Type C tripping curve that trips instantaneously between 5 to 10 times the rated current, ideal for high inductive loads subject to switching surges. The thermal magnetic trip mechanism enhances reliability by combining thermal overload protection and instantaneous magnetic trip response.
Fitted with screw terminals and designed for DIN rail mounting, the breaker has an IP20 rating ensuring safety against accidental contact with live parts. The compact dimensions (85mm height, 36mm width, 78.5mm depth) allow for space-efficient panel installations.
Schneider Electric's Acti9 series is fully compliant with EN/IEC 60898-1 and EN/IEC 60947-2, guaranteeing adherence to stringent international safety and performance standards. The product is also REACH and RoHS compliant, underpinning environmental and safety considerations.
Additional features include VisiSafe green strip indicating safe downstream circuits and a VisiTrip red window for clear fault indication and quicker troubleshooting, helping reduce downtime and enhance maintenance efficiency in industrial and commercial setups.
Rated voltage ranges cover key industrial AC voltages and 12V DC systems. Type C tripping curve suited for inductive and general-purpose loads. Robust screw terminal connections for secure wiring. Thermal magnetic trip mechanism provides reliable protection.
Compact DIN rail mount design for easy installation. Visual safety and fault indicators for operational safety. Wide standards compliance for global usage.
This Miniature Circuit Breaker is suitable for electrical panels in industrial plants, commercial buildings, and residential installations requiring dependable circuit protection. Explore more Schneider Electric circuit breakers to meet diverse protection needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a rated current of 10A.
It has a breaking capacity of 10kA, ensuring high tolerance for short circuits.
It supports an AC voltage range from 100V to 440V and a DC voltage rating of 12V.
This unit features a thermal magnetic tripping mechanism, which combines thermal overload protection with instantaneous magnetic trip response.
The dimensions are 85mm in height, 36mm in width, and 78.5mm in depth.
It is designed for DIN rail mounting, allowing for easy installation in electrical panels.
It has a Type C tripping curve, which trips at 5 to 10 times the rated current, suitable for inductive loads.
It includes visual indicators such as a VisiSafe green strip for safe contacts and a VisiTrip red window for fault indication.
This model complies with EN/IEC 60898-1 and EN/IEC 60947-2, as well as being REACH and RoHS compliant.
It is equipped with screw terminals for secure wiring connections.
This miniature circuit breaker is suitable for circuit protection in industrial, commercial, and residential installations.
This product is manufactured in France.
