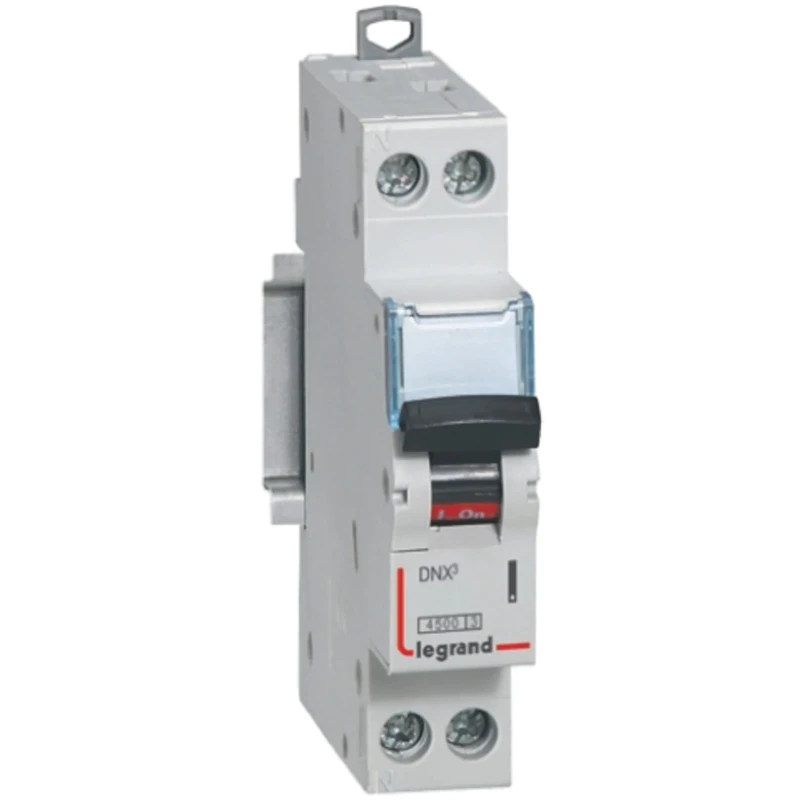

Legrand DX DNX3 Miniature Circuit Breaker, 1-Pole, 32A, Type C, 250V AC, 12V DC, 4.5kA Breaking Capacity DNX3
Specifications
| Country of Origin | France |
|---|---|
| Range | DX |
| Brand | Legrand |
| Height | 94.8mm |
| Model | DNX3 |
| Depth | 77.6mm |
| IP Rating | IP20 |
| Width | 17.8mm |
| Mount Type | DIN Rail |
| Current Rating | 32A |
| Series | DNX3 |
| Terminal type | Screw Cage Terminal |
| Breaking Capacity | 4.5kA |
| Number of Poles | 1 |
| Standards/Approvals | EN/IEC 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 12V dc |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Magnetic |
| Reset Actuator Type | Toggle Switch |
| Legrand RCBO, 32A Current Rating, 1+N Poles, Type CBrand | Legrand |
Key Features
- Compact design with dimensions 94.8mm height, 17.8mm width, and 77.6mm depth.
- Rated for 250V AC and 12V DC voltage operation.
- Breaking capacity of 4.5kA ensures safety during short circuit conditions.
- Type C tripping characteristic trips at 5 to 10 times rated current for motor and general load protection.
- Mounts easily on DIN Rail with screw cage terminal connections for secure wiring.
- Magnetic tripping mechanism with toggle switch actuator for manual control.
- IP20 protection rating suitable for indoor electrical installations.
- Conforms to IEC/EN 60898-1 and IEC/EN 60947-2 standards for performance and safety.
Product Description
Legrand DNX3 Miniature Circuit Breaker (MCB) model DNX3 is a 1-Pole protection device rated at 32A with Type C tripping characteristics. Designed to operate at 250V AC and 12V DC, it offers a breaking capacity of 4.5kA, making it suitable for residential, commercial, and industrial electrical systems.
The compact MCB features a DIN Rail mount and screw cage terminals ensuring straightforward installation and wiring. Its magnetic trip mechanism combined with toggle switch reset provides reliable and safe circuit interruption under overcurrent and short circuit conditions.
This MCB complies fully with EN/IEC 60898-1 and IEC/EN 60947-2 standards, meeting both household and industrial low voltage circuit breaker requirements. The Type C tripping curve ensures selective tripping between 5 and 10 times the rated current, ideal for circuits with moderate inrush currents such as motors and lighting.
The device offers an IP20 ingress protection rating and clear red/green indication for ON/OFF state, enhancing safety and ease of use. Legrand DNX3 prolongs cable life by limiting short circuit power and helps avoid damage from transient faults.
Manufactured in France, the product is built with high quality standards for durability and compliance. The DNX3 range supports up to 125A current ratings, providing a flexible solution for varied electrical protection needs.
Compact dimensions ensure easy integration into distribution boards. Quick identification of circuit state promotes efficient system maintenance. Adaptive for use with add-on modules as part of Legrand’s modular range. Meets IEC 60898 and IEC 60947-2 standards, ensuring broad applicability.
Ideal for industrial, commercial, and domestic electrical protection applications. For searching or browsing more Legrand circuit breakers and related components, explore available categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 4.5kA, ensuring safety during short circuit conditions.
It is rated for operation at 250V AC and 12V DC.
This model has Type C tripping characteristics, which trip at 5 to 10 times the rated current.
It mounts easily on a DIN Rail and uses screw cage terminal connections for secure wiring.
The dimensions are 94.8mm in height, 17.8mm in width, and 77.6mm in depth.
The DNX3 has an IP20 protection rating, suitable for indoor electrical installations.
It conforms to EN/IEC 60898-1 and IEC/EN 60947-2 standards for performance and safety.
This model has a current rating of 32A.
It features a toggle switch actuator for manual control and reset.
This product is manufactured in France.
The tripping mechanism is magnetic, providing reliable circuit interruption under overcurrent conditions.
It is suitable for residential, commercial, and industrial electrical systems.
