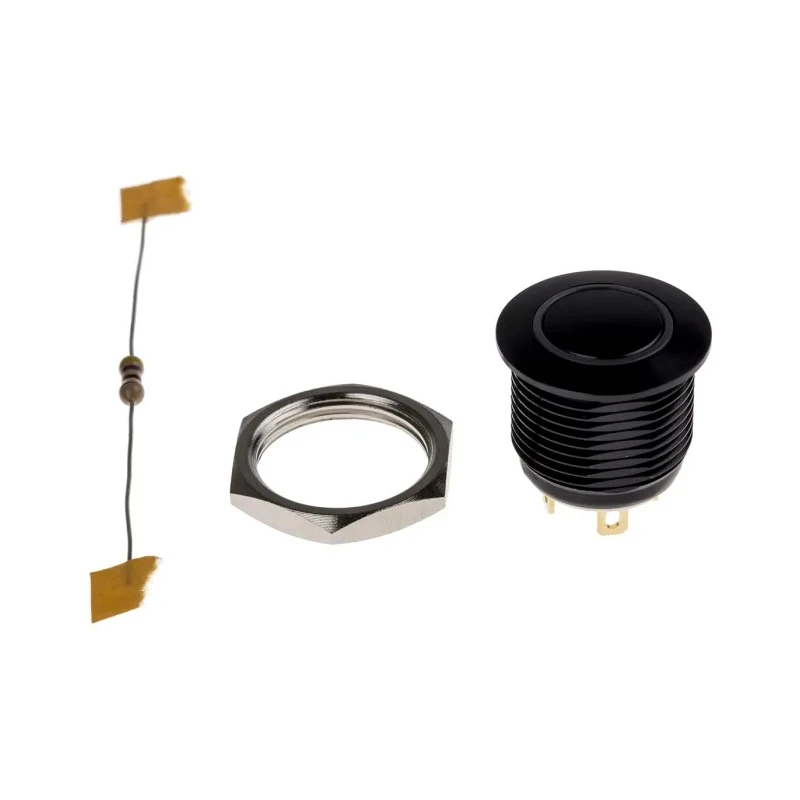

KNITTER-SWITCH Illuminated Vandal Proof Momentary Push Button Switch 16 mm Panel Cutout SPST Red LED MAV16CBRE-3-JR-12V

The KNITTER-SWITCH MAV16CBRE-3-JR-12V is an illuminated vandal proof momentary push button switch designed for panel mounting with a 16 mm cutout diameter. This push button switch features a single pole single throw (SPST) contact configuration and includes a red LED illumination running at 12V DC with an integrated resistor.

Constructed with a durable aluminium button and black case finish, this switch offers high resistance to mechanical impact and environmental factors. Its IP67 protection rating ensures it is fully dust tight and protected against water immersion, making it suitable for industrial, electrical, automation, and commercial applications.

The round actuator has a distinctive ring shape lens style and includes solder lug terminals for secure wiring connections. The switch contact ratings are robust, supporting up to 250V AC or 36V DC at 2A current capacity, which is ideal for a variety of control circuits.

The MAV series switch operates reliably within a broad temperature range from -20°C up to 120°C, meeting the requirements for harsh and demanding environments. The contacts feature a gold flash over silver finish for longevity and consistent conductivity.

This push button switch suits installation in control panels, automation systems, machinery, and signage applications where vandal resistance and clear visual indication are imperative. Its compliance with UL 94 V-0 and UL 94 V-2 standards further attests to its material fire safety performance.

The switch features a red LED illumination operating at 12V DC. It has a robust aluminium button and black case for durability. The actuator style is round with a ring shape lens. It supports a maximum contact rating of 250V AC and 36V DC at 2A.

The switch is IP67 rated for water and dust resistance, suitable for harsh environments. Operating temperature ranges from -20°C to 120°C ensuring reliable performance. Solder lug terminals and gold flash over silver contacts provide secure electrical connections.

Designed for panel mounting with a 16 mm cutout size for easy installation.

This product is manufactured in China and supplied new. KNITTER-SWITCH MAV series illuminated vandal proof push button switches are widely used across industrial automation, electrical panels, manufacturing lines, and commercial equipment for robust, reliable control interface solutions.
